Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2013-06-21 05:57:44.0 |
| Date & Time (Local) | 1392/3/31 10:27:44.0 |

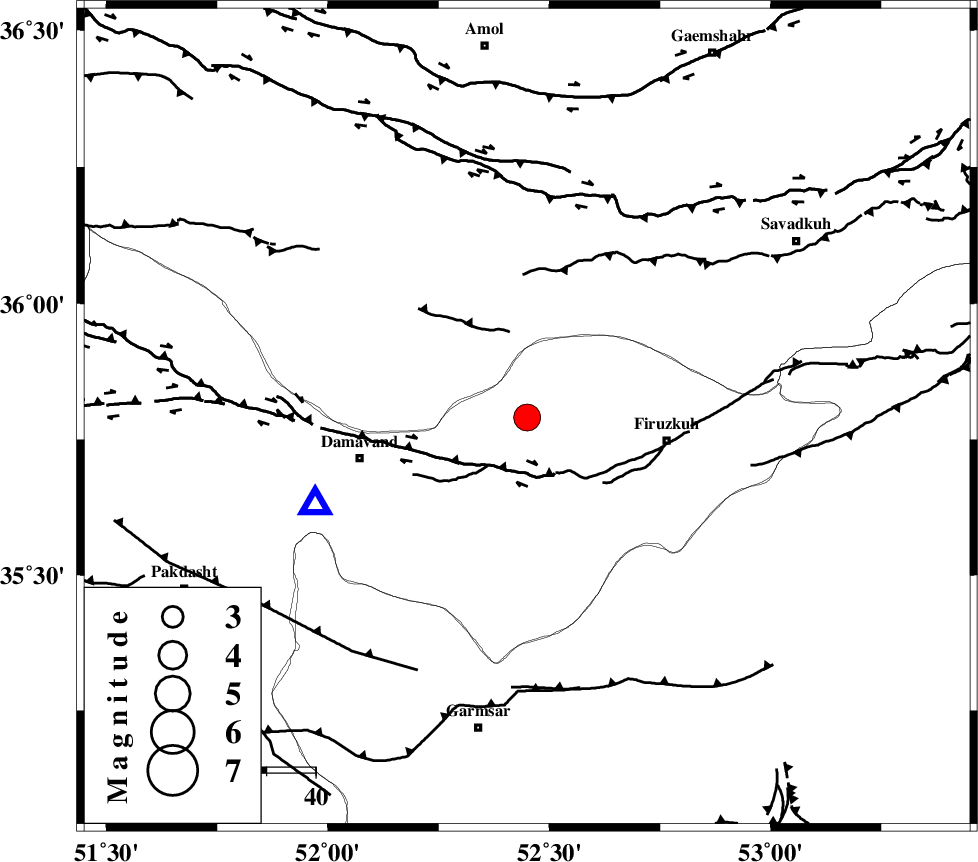

| Location | Lat:35.79 Lon: 52.45 |
| Region | Tehran Province, 29 km West of Firuzkuh |
Nearest Cities |
|
| 7 km of Arjomand, Tehran Province | |
| 21 km North East of Sarbandan, Tehran Province | |
| 21 km West of Shahrabad, Tehran Province | |
| 26 km South East of Baijan, Mazandaran Province | |
| 26 km South East of Gaznak, Mazandaran Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 10 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 46 km | |
| ATARI_F (Length: 185 km) , Distance to epicenter: 47 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 3.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89700 | IIEES | ASAO | E | 391.8 | 0.56 | 2013-06-21 05:59:05 | 2013-06-21 07:24:00 | n |
| 89701 | IIEES | MRVT | E | 180.3 | 0.52 | 2013-06-21 05:59:27 | 2013-06-21 07:24:00 | n |
| 89702 | IIEES | MRVT | N | 197.9 | 0.8 | 2013-06-21 05:59:38 | 2013-06-21 07:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2013-06-21 05:57:52 | -0.05 | y | 46.7 | 248 | |||
| IIEES | CHTH | Z | Pg | E | 2013-06-21 05:58:04 | 0.02 | y | 120 | 277 | |||
| IIEES | GHVR | Z | Pn | E | 2013-06-21 05:58:14 | 0.07 | y | 182 | 217 | |||
| IIEES | MRVT | Z | Pn | E | 2013-06-21 05:58:39 | 0.03 | y | 386 | 56 | |||
| IIEES | YZKH | Z | Pn | E | 2013-06-21 05:58:44 | -0.12 | y | 426 | 152 | |||
| IIEES | YZKH | E | Sg | E | 2013-06-21 05:59:43 | 0.05 | y | 426 | 152 | |||
