Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2013-06-24 03:48:45.5 |
| Date & Time (Local) | 1392/4/3 08:18:45.5 |

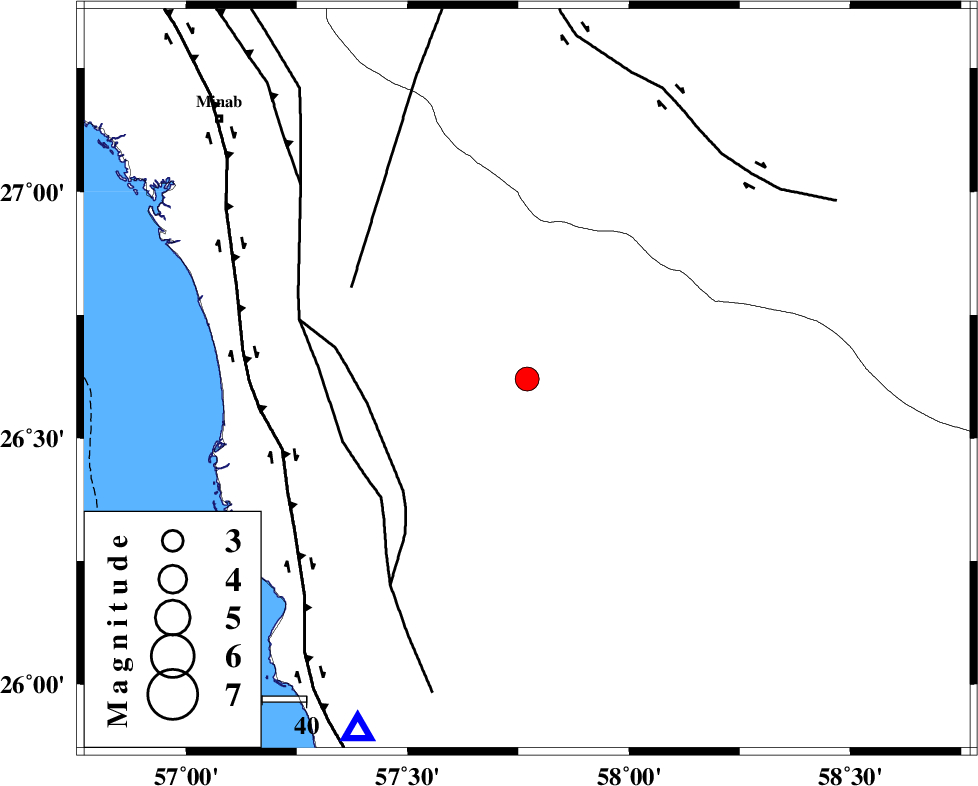

| Location | Lat:26.62 Lon: 57.77 |
| Region | Hormozgan Province, 110 km North of Jask |
Nearest Cities |
|
| 13 km North West of Angahran, Hormozgan Province | |
| 20 km East of Darpahn, Hormozgan Province | |
| 41 km South East of Sanadrak, Hormozgan Province | |
| 56 km South West of Keshmiran, Kerman Province | |
| 62 km North East of Gonmardi, Hormozgan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| ZENDAN_MINAB_F_Z2 (Length: 63 km) , Distance to epicenter: 36 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 42 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 45 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 7.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89734 | IIEES | BNDS | N | 422.8 | 0.4 | 2013-06-24 03:49:16 | 2013-06-24 08:23:00 | n |
| 89735 | IIEES | KRBR | N | 75.6 | 0.4 | 2013-06-24 03:50:33 | 2013-06-24 08:23:00 | n |
| 89736 | IIEES | KRBR | E | 70 | 0.56 | 2013-06-24 03:50:35 | 2013-06-24 08:23:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHBR | Z | P | E | 2013-06-24 03:49:29 | -0.17 | y | 294 | 112 | |||
| IIEES | CHBR | N | Sg | E | 2013-06-24 03:50:08 | 0.12 | y | 294 | 112 | |||
| IIEES | ZHSF | Z | Pn | E | 2013-06-24 03:49:48 | -0.08 | y | 444 | 41 | |||
| IIEES | GHIR | Z | Pn | E | 2013-06-24 03:49:56 | 0.06 | y | 507 | 292 | |||
| IIEES | BSRN | Z | Pn | E | 2013-06-24 03:50:08 | 0.06 | y | 607 | 12 | |||
| IIEES | YZKH | Z | Pn | E | 2013-06-24 03:50:21 | 0.08 | y | 710 | 335 | |||
