Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2013-06-25 08:55:01.8 |
| Date & Time (Local) | 1392/4/4 13:25:01.8 |

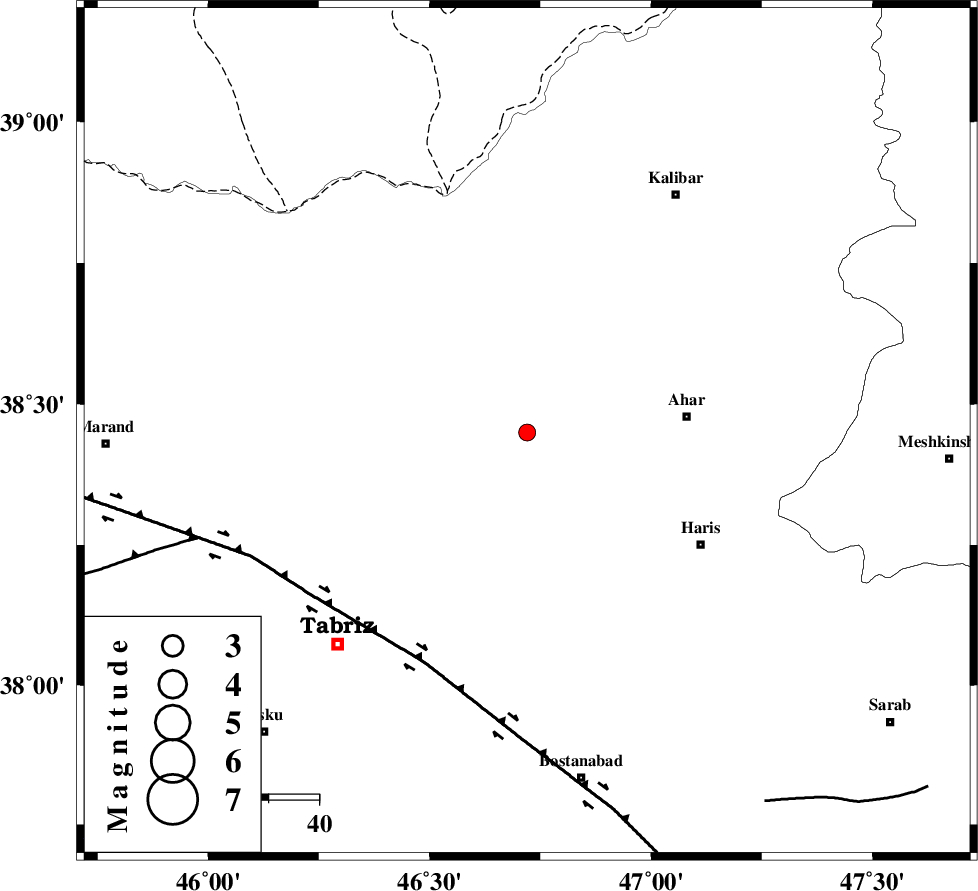

| Location | Lat:38.45 Lon: 46.72 |
| Region | Azarbaijan Sharghi Province, 32 km West of Ahar |
Nearest Cities |
|
| 8 km of Varzagan, Azarbaijan Sharghi Province | |
| 17 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 18 km South East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 20 km North East of Sarand, Azarbaijan Sharghi Province | |
| 20 km South of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 50 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 68 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 87 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 4.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89751 | IIEES | GRMI | E | 108.9 | 0.24 | 2013-06-25 08:55:34 | 2013-06-25 10:13:00 | n |
| 89752 | IIEES | GRMI | N | 86.6 | 0.15 | 2013-06-25 08:55:35 | 2013-06-25 10:13:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-06-25 08:55:20 | 0.01 | y | 110 | 68 | |||
| IIEES | GRMI | N | Sg | E | 2013-06-25 08:55:34 | -0.01 | y | 110 | 68 | |||
| IIEES | MAKU | Z | Pg | E | 2013-06-25 08:55:35 | -0.05 | y | 203 | 300 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-06-25 08:55:42 | 0.16 | y | 263 | 138 | |||
| IIEES | ZNJK | E | Sg | E | 2013-06-25 08:56:16 | -0.1 | y | 263 | 138 | |||
