Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2013-06-26 08:18:09.8 |
| Date & Time (Local) | 1392/4/5 12:48:09.8 |
| Location | Lat:27.61 Lon: 52.16 |
| Region | Persian Gulf, 26 km South of Bandar-e kangan |
Nearest Cities |
|
| 19 km West of Bandar-e taheri, Bushehr Province | |
| 26 km South of Bandar-e kangan, Bushehr Province | |
| 29 km South West of Jam, Bushehr Province | |
| 47 km North West of Bandar-e asaluyeh, Bushehr Province | |
| 49 km South of Riz, Bushehr Province | |
| Depth | 14 km |
| Agency | |

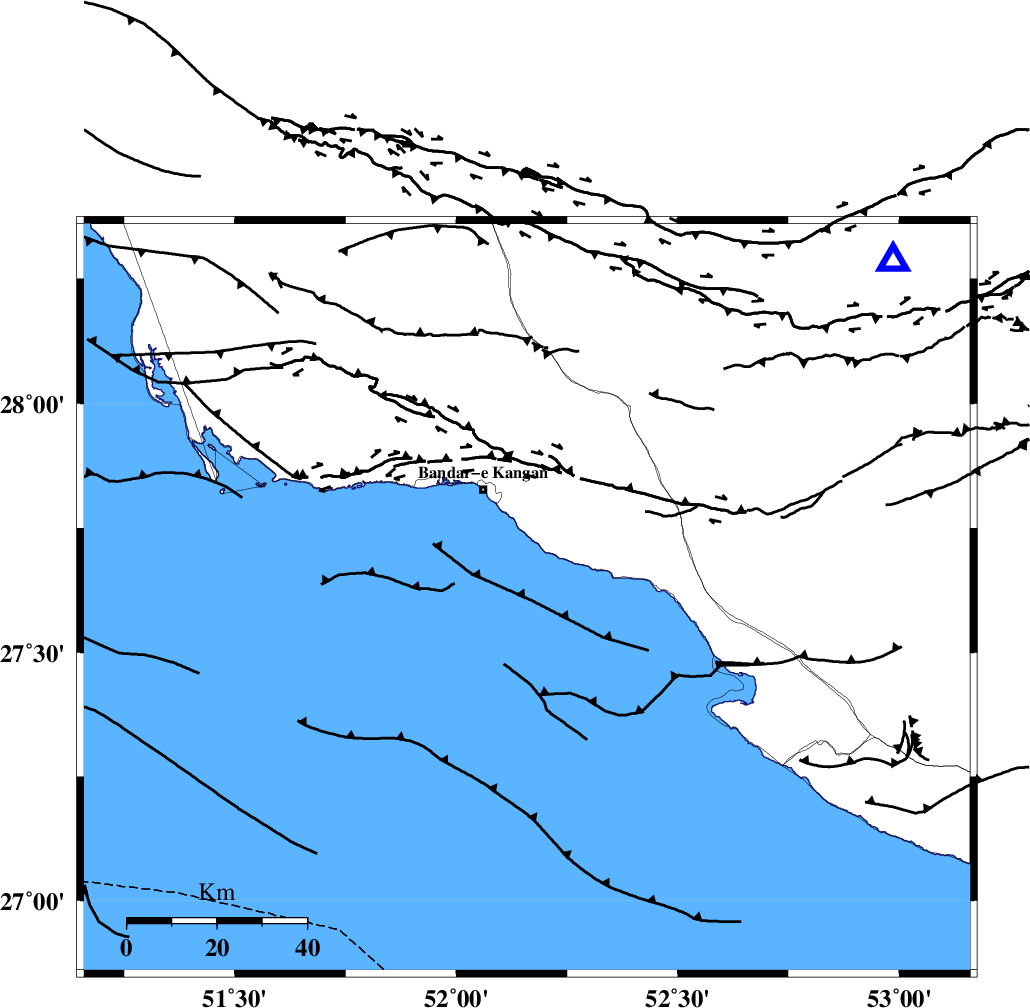

Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 17 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 71 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 86 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >9.8 km |
| Error in Longitude | 8 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89756 | IIEES | GHIR | N | 2921.8 | 0.41 | 2013-06-26 08:18:44 | 2013-06-26 09:52:00 | n |
| 89757 | IIEES | GHIR | E | 3663.2 | 0.44 | 2013-06-26 08:18:46 | 2013-06-26 09:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2013-06-26 08:18:28 | -0.04 | y | 111 | 47 | |||
| IIEES | GHIR | N | Sg | E | 2013-06-26 08:18:42 | 0.01 | y | 111 | 47 | |||
| IIEES | NASN | Z | Pn | E | 2013-06-26 08:19:29 | -0.16 | y | 579 | 6 | |||
| IIEES | YZKH | Z | Pn | E | 2013-06-26 08:19:29 | 0.19 | y | 580 | 23 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-06-26 08:19:46 | -0.08 | y | 711 | 343 | |||
| IIEES | ASAO | Z | Pn | E | 2013-06-26 08:19:56 | 0.15 | y | 796 | 346 | |||
