Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2013-06-26 19:05:04.3 |
| Date & Time (Local) | 1392/4/5 23:35:04.3 |
| Location | Lat:31.37 Lon: 56.72 |
| Region | Kerman Province, 14 km Ravar |
Nearest Cities |
|
| 9 km North of Dehali, Kerman Province | |
| 14 km North of Ravar, Kerman Province | |
| 38 km North East of Dasht-e khak, Kerman Province | |
| 38 km North East of Toghroljerd, Kerman Province | |
| 41 km East of Kuhbanan, Kerman Province | |
| Depth | 14 km |
| Agency | |

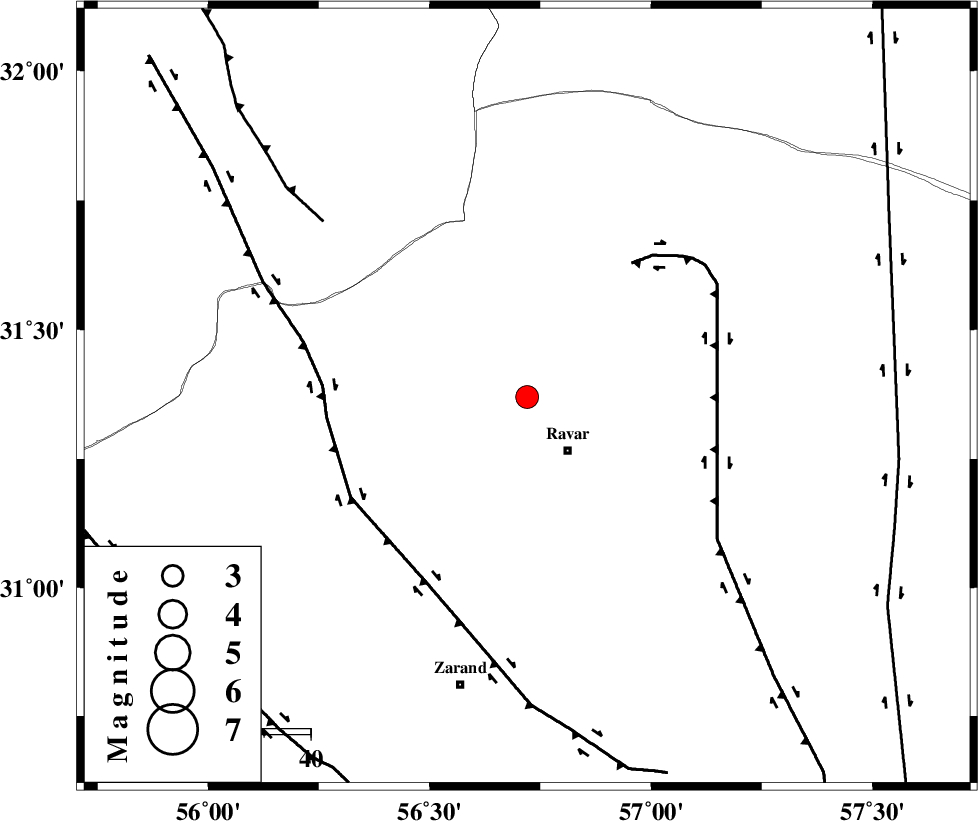

Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 36 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 43 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 58 km | |
| Number of Phases | 4 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | >12.4 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 7.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89761 | IIEES | KRBR | N | 352 | 0.4 | 2013-06-26 19:05:48 | 2013-06-26 10:08:00 | n |
| 89762 | IIEES | KRBR | E | 469.5 | 0.28 | 2013-06-26 19:05:49 | 2013-06-26 10:08:00 | n |
| 89763 | IIEES | YZKH | N | 110.6 | 0.28 | 2013-06-26 19:06:12 | 2013-06-26 10:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2013-06-26 19:05:42 | -0.27 | y | 231 | 300 | |||
| IIEES | BSRN | Z | Pn | E | 2013-06-26 19:05:41 | 0.28 | y | 238 | 73 | |||
| IIEES | BSRN | N | Sg | E | 2013-06-26 19:06:11 | -0.29 | y | 238 | 73 | |||
| IIEES | TABS | Z | Pn | E | 2013-06-26 19:05:44 | 0.28 | y | 256 | 8 | |||
