Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2013-06-27 21:32:24.2 |
| Date & Time (Local) | 1392/4/7 02:02:24.2 |

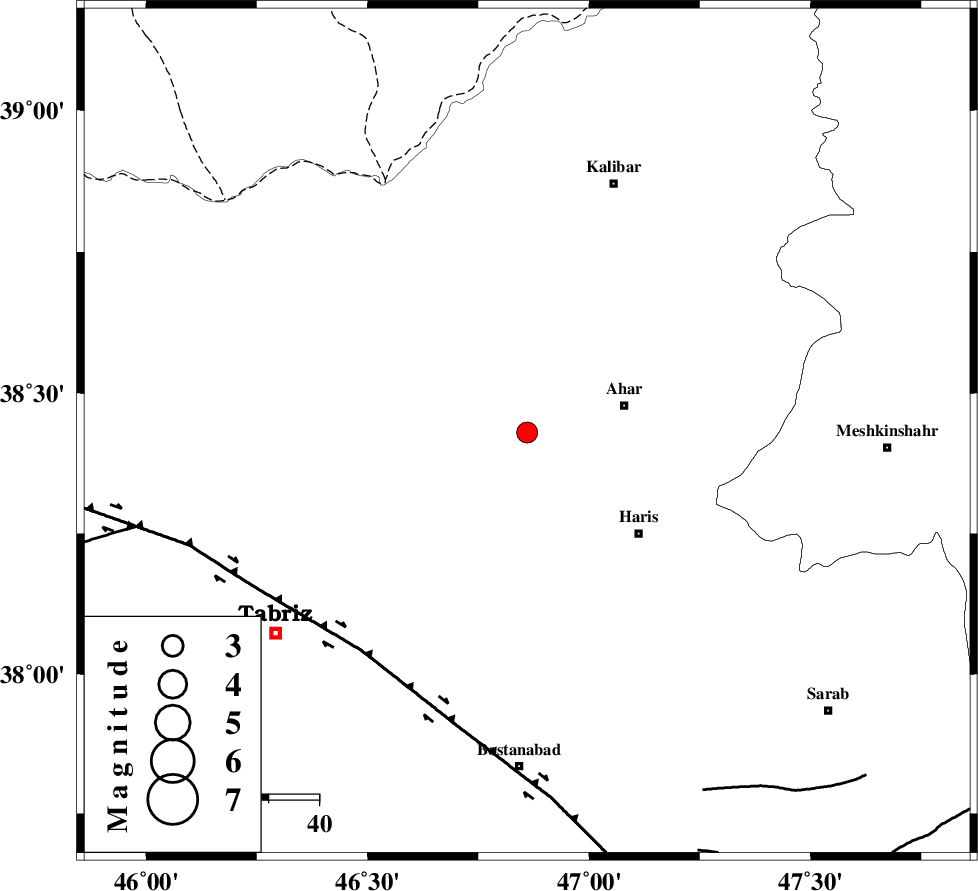

| Location | Lat:38.43 Lon: 46.86 |
| Region | Azarbaijan Sharghi Province, 20 km West of Ahar |
Nearest Cities |
|
| 15 km West of Khuniq, Azarbaijan Sharghi Province | |
| 16 km North of Nikcheh, Azarbaijan Sharghi Province | |
| 17 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 18 km South of Azghan, Azarbaijan Sharghi Province | |
| 20 km West of Ahar, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 54 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 79 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 79 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >7.6 km |
| Error in Longitude | 8.4 km |
| Error in Depth | 4.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89766 | IIEES | MAKU | N | 107.3 | 0.4 | 2013-06-27 21:33:31 | 2013-06-27 11:32:00 | n |
| 89767 | IIEES | ZNJK | E | 69.8 | 0.32 | 2013-06-27 21:33:38 | 2013-06-27 11:32:00 | n |
| 89768 | IIEES | ZNJK | N | 54.1 | 0.4 | 2013-06-27 21:33:39 | 2013-06-27 11:32:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pn | E | 2013-06-27 21:32:58 | 0.17 | y | 215 | 299 | |||
| IIEES | MAKU | E | Sg | E | 2013-06-27 21:33:25 | -0.17 | y | 215 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-06-27 21:33:03 | 0.01 | y | 253 | 140 | |||
| IIEES | ZNJK | E | Sg | E | 2013-06-27 21:33:35 | -0.16 | y | 253 | 140 | |||
| IIEES | SNGE | Z | Pn | E | 2013-06-27 21:33:18 | 0.18 | y | 372 | 173 | |||
