Event Specification
Magnitude |
4.2 |
| Date & Time (UTC) | 2013-06-28 05:13:08.4 |
| Date & Time (Local) | 1392/4/7 09:43:08.4 |

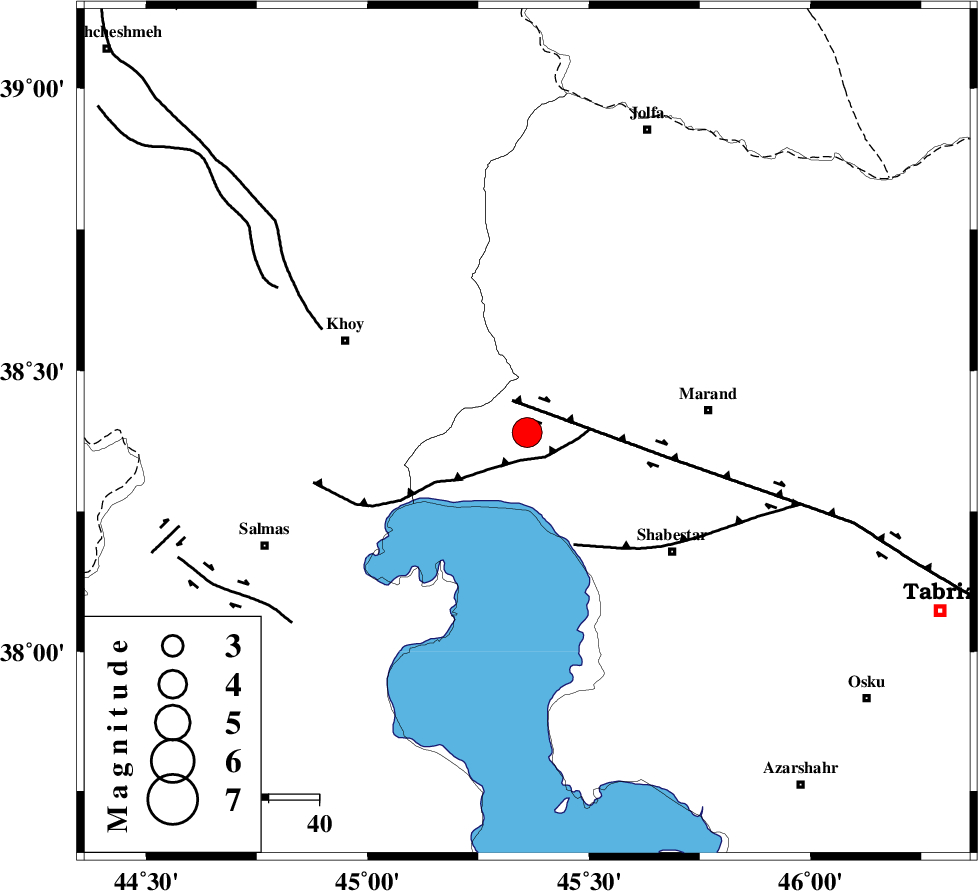

| Location | Lat:38.39 Lon: 45.36 |
| Region | Azarbaijan Sharghi Province, 36 km West of Marand |
Nearest Cities |
|
| 8 km North of Jahregan, Azarbaijan Sharghi Province | |
| 10 km North of Tasuj, Azarbaijan Sharghi Province | |
| 20 km West of Kashksaray, Azarbaijan Sharghi Province | |
| 26 km North West of Sharafkhaneh, Azarbaijan Sharghi Province | |
| 28 km South West of Yamchi, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 6 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 7 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 24 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >4.6 km |
| Error in Longitude | 5.5 km |
| Error in Depth | 4.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89770 | IIEES | MAKU | N | 7716.8 | 0.36 | 2013-06-28 05:13:45 | 2013-06-28 06:44:00 | n |
| 89771 | IIEES | ZNJK | N | 383 | 0.52 | 2013-06-28 05:14:49 | 2013-06-28 06:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2013-06-28 05:13:28 | -0.02 | y | 122 | 331 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-06-28 05:13:59 | 0.05 | y | 351 | 122 | |||
| IIEES | ZNJK | E | Sg | E | 2013-06-28 05:14:46 | -0.04 | y | 351 | 122 | |||
| IIEES | SNGE | Z | Pn | E | 2013-06-28 05:14:06 | -0.02 | y | 407 | 154 | |||
| IIEES | CHTH | Z | Pn | E | 2013-06-28 05:14:28 | 0.05 | y | 582 | 117 | |||
