Event Specification
Magnitude |
2 |
| Date & Time (UTC) | 2013-06-29 17:14:27.9 |
| Date & Time (Local) | 1392/4/8 21:44:27.9 |

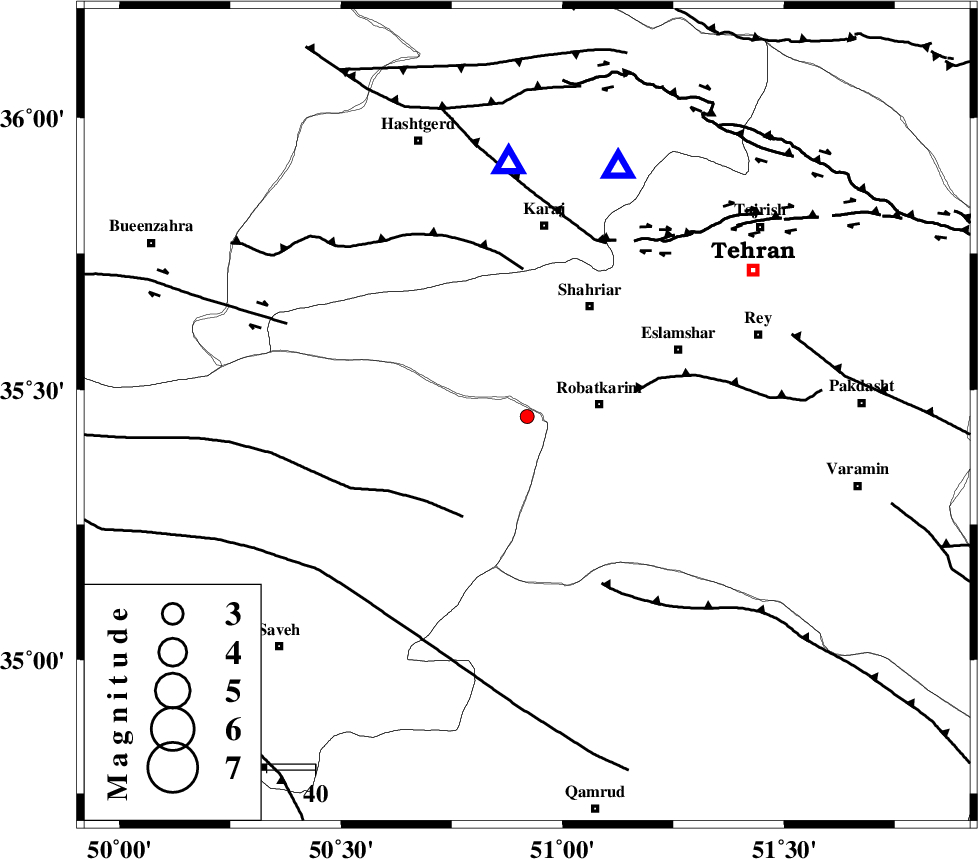

| Location | Lat:35.45 Lon: 50.92 |
| Region | Markazi Province, 15 km West of Robatkarim |
Nearest Cities |
|
| 15 km West of Robatkarim, Tehran Province | |
| 16 km West of Manjilabad, Tehran Province | |
| 20 km South West of Joqin, Tehran Province | |
| 23 km North West of Vahnabad, Tehran Province | |
| 24 km North East of Rahimabad, Markazi Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| KAHRIZAK_F (Length: 44 km) , Distance to epicenter: 23 km | |
| S_PARANDAK_F (Length: 116 km) , Distance to epicenter: 24 km | |
| ESHTEHARD_F (Length: 69 km) , Distance to epicenter: 30 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89783 | IIEES | DAMV | E | 50.4 | 0.16 | 2013-06-29 17:14:57 | 2013-06-30 03:39:00 | n |
| 89784 | IIEES | GHVR | N | 35.9 | 0.2 | 2013-06-29 17:15:02 | 2013-06-30 03:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHTH | Z | Pg | E | 2013-06-29 17:14:37 | -0.09 | y | 53.9 | 20 | |||
| IIEES | CHTH | E | Sg | E | 2013-06-29 17:14:45 | 0.08 | y | 53.9 | 20 | |||
| IIEES | DAMV | Z | Pg | E | 2013-06-29 17:14:44 | 0.14 | y | 97 | 78 | |||
| IIEES | DAMV | E | S | E | 2013-06-29 17:14:56 | -0.12 | y | 97 | 78 | |||
| IIEES | GHVR | Z | Pg | E | 2013-06-29 17:14:46 | 0.05 | y | 112 | 165 | |||
| IIEES | ASAO | Z | Pg | E | 2013-06-29 17:14:49 | -0.05 | y | 129 | 220 | |||
