Event Specification
Magnitude |
4.9 |
| Date & Time (UTC) | 2013-07-02 11:18:32.4 |
| Date & Time (Local) | 1392/4/11 15:48:32.4 |

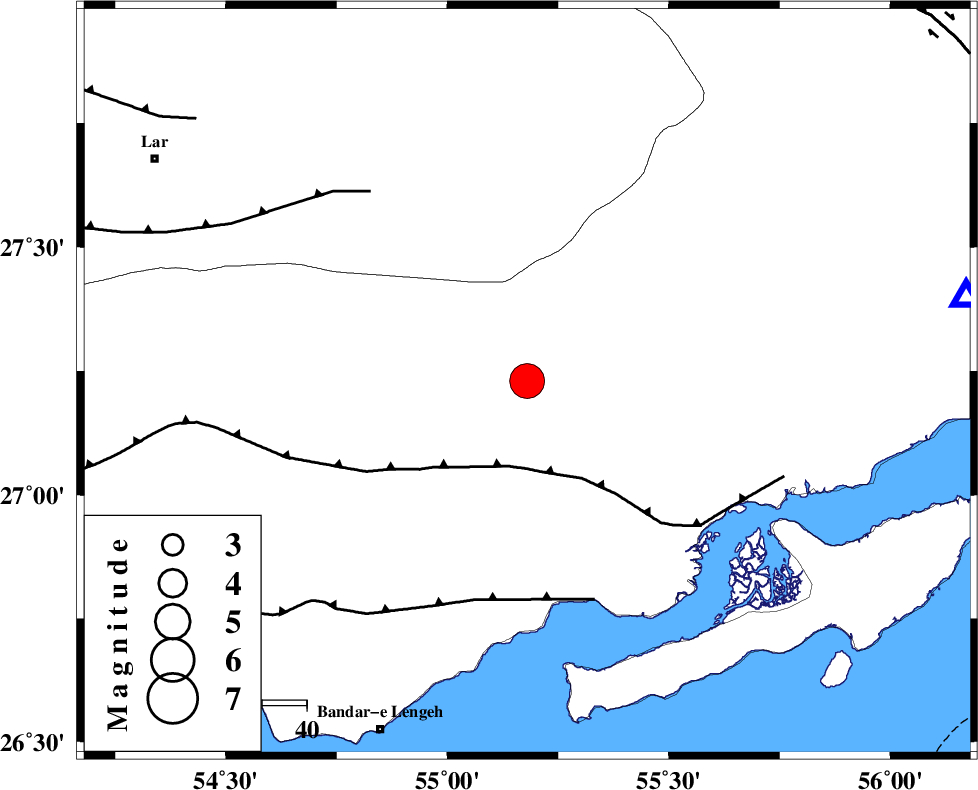

| Location | Lat:27.23 Lon: 55.18 |
| Region | Hormozgan Province, 81 km East of Bastak |
Nearest Cities |
|
| 51 km North West of Bandar-e khamir, Hormozgan Province | |
| 74 km South West of Darz, Fars Province | |
| 81 km North East of Bastak, Hormozgan Province | |
| 84 km South West of Fin, Hormozgan Province | |
| 85 km North East of Bandar-e lengeh, Hormozgan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 19 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 51 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 55 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | >9.1 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89805 | IIEES | GHIR | E | 5208.7 | 0.56 | 2013-07-02 11:20:02 | 2013-07-02 12:49:00 | n |
| 89806 | IIEES | SHGR | E | 233.8 | 0.6 | 2013-07-02 11:21:53 | 2013-07-02 12:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pn | E | 2013-07-02 11:19:10 | -0.02 | y | 246 | 299 | |||
| IIEES | GHIR | E | Sg | E | 2013-07-02 11:19:42 | 0.08 | y | 246 | 299 | |||
| IIEES | YZKH | Z | Pn | E | 2013-07-02 11:19:51 | -0.28 | y | 575 | 354 | |||
| IIEES | ZHSF | Z | P | E | 2013-07-02 11:19:55 | 0.22 | y | 608 | 63 | |||
| IIEES | BSRN | Z | P | E | 2013-07-02 11:20:00 | 0.07 | y | 649 | 35 | |||
| IIEES | TABS | Z | Pn | E | 2013-07-02 11:20:11 | 0.17 | y | 736 | 14 | |||
| IIEES | SHGR | Z | Pn | E | 2013-07-02 11:20:21 | -0.36 | y | 821 | 313 | |||
