Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2013-07-09 03:50:59.1 |
| Date & Time (Local) | 1392/4/18 08:20:59.1 |

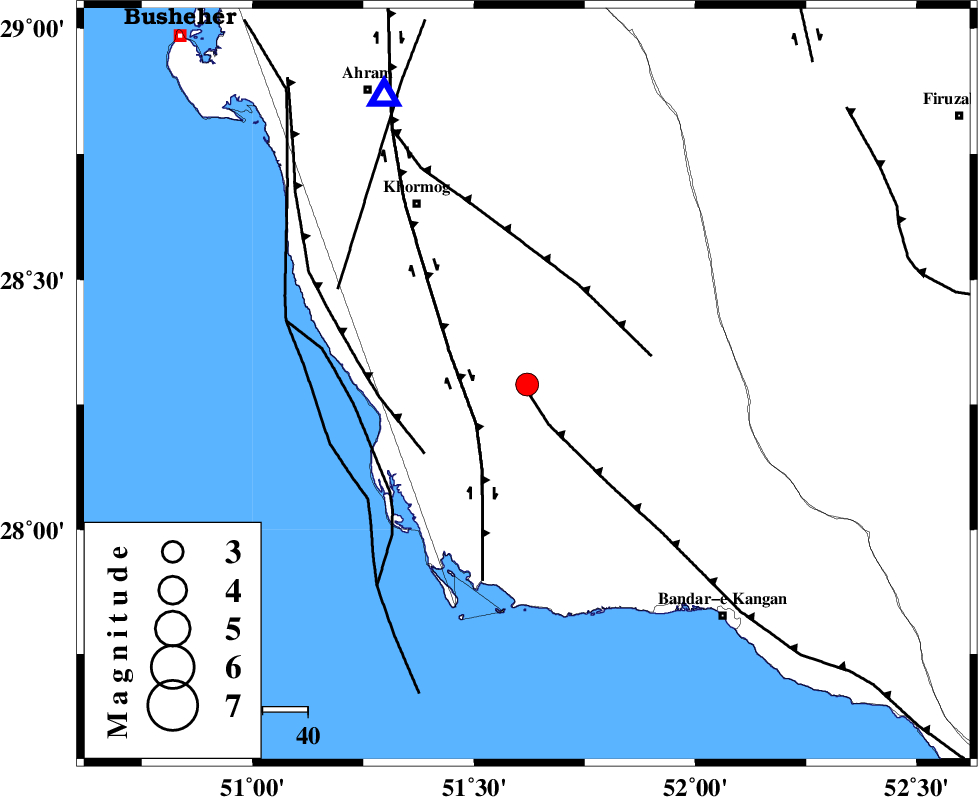

| Location | Lat:28.29 Lon: 51.62 |
| Region | Bushehr Province, 47 km South-East of Khormog |
Nearest Cities |
|
| 12 km East of Kaki, Bushehr Province | |
| 17 km North of Abkesh, Bushehr Province | |
| 17 km South East of Baduleh, Bushehr Province | |
| 18 km South West of Shanbeh, Bushehr Province | |
| 27 km North West of Abdan, Bushehr Province | |
| Depth | 28 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 1 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 14 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 25 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >8.4 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 4.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89850 | IIEES | GHIR | E | 519.7 | 0.5 | 2013-07-09 03:51:43 | 2013-07-09 05:48:00 | n |
| 89851 | IIEES | GHIR | N | 523.5 | 0.5 | 2013-07-09 03:51:47 | 2013-07-09 05:48:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-07-09 03:51:11 | 0 | y | 71.4 | 334 | |||
| IIEES | GHIR | Z | Pg | E | 2013-07-09 03:51:21 | 0 | y | 135 | 90 | |||
| IIEES | GHIR | N | Sg | E | 2013-07-09 03:51:37 | 0.01 | y | 135 | 90 | |||
| IIEES | YZKH | Z | Pn | E | 2013-07-09 03:52:12 | 0 | y | 538 | 31 | |||
