Event Specification
Magnitude |
4.2 |
| Date & Time (UTC) | 2013-07-09 17:05:10.8 |
| Date & Time (Local) | 1392/4/18 21:35:10.8 |

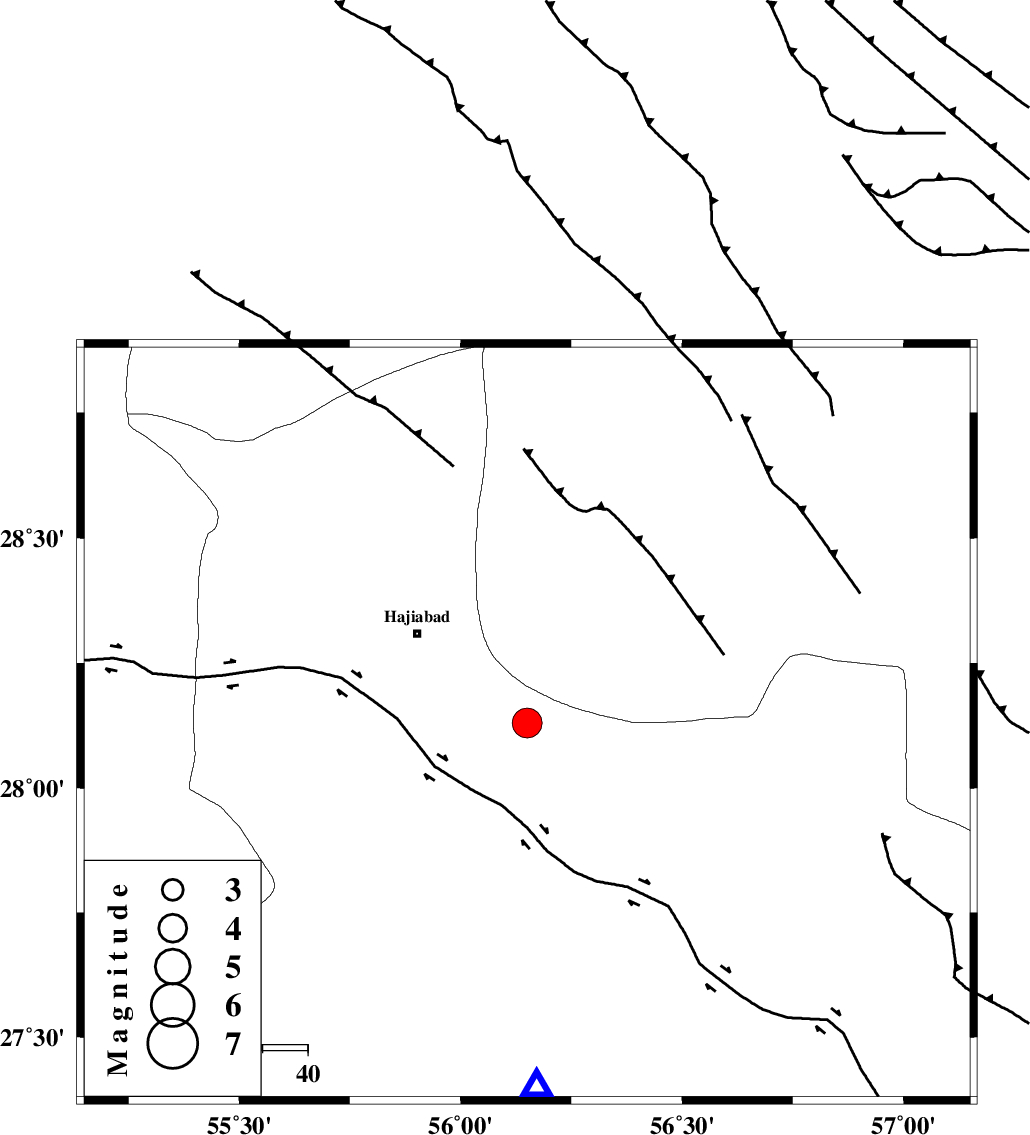

| Location | Lat:28.13 Lon: 56.15 |
| Region | Hormozgan Province, 31 km South-East of Hajiabad |
Nearest Cities |
|
| 15 km North of Fareqan, Hormozgan Province | |
| 31 km South East of Hajiabad, Hormozgan Province | |
| 40 km South West of Arzuieeh, Kerman Province | |
| 43 km South West of Shahmaran, Kerman Province | |
| 60 km North East of Fin, Hormozgan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 15 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 19 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 96 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 4.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89856 | IIEES | KRBR | E | 1613.2 | 0.64 | 2013-07-09 17:06:18 | 2013-07-09 06:28:00 | n |
| 89857 | IIEES | KHMZ | E | 32.1 | 0.56 | 2013-07-09 17:08:31 | 2013-07-09 06:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2013-07-09 17:05:24 | -0.02 | y | 81.2 | 178 | |||
| IIEES | KRBR | Z | Pn | E | 2013-07-09 17:05:44 | -0.02 | y | 214 | 16 | |||
| IIEES | KRBR | E | Sg | E | 2013-07-09 17:06:11 | 0.04 | y | 214 | 16 | |||
| IIEES | GHIR | Z | Pn | E | 2013-07-09 17:05:56 | 0.07 | y | 311 | 274 | |||
| IIEES | YZKH | Z | Pn | E | 2013-07-09 17:06:19 | -0.11 | y | 495 | 343 | |||
