Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2013-07-11 01:36:55.7 |
| Date & Time (Local) | 1392/4/20 06:06:55.7 |

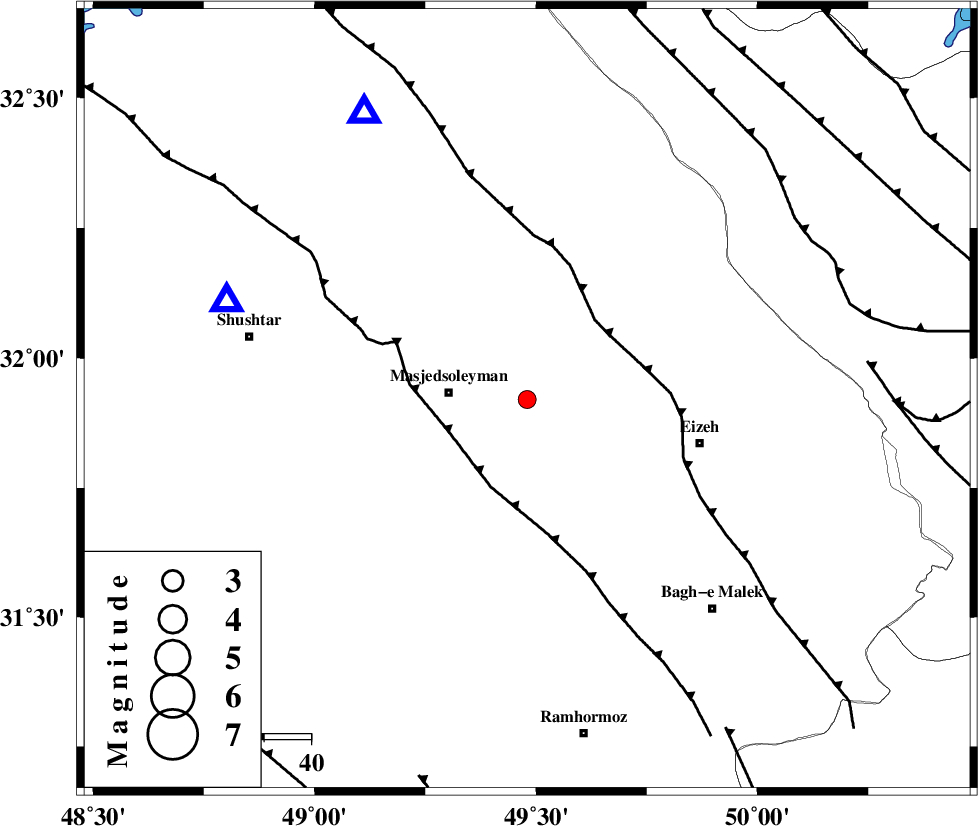

| Location | Lat:31.92 Lon: 49.48 |
| Region | Khoozestan Province, 17 km East of Masjed Soleyman |
Nearest Cities |
|
| 17 km East of Masjed Soleyman, Khoozestan Province | |
| 32 km North West of Rasvand, Khoozestan Province | |
| 32 km North West of Chenarestan, Khoozestan Province | |
| 32 km South of Qale-yekhvaju, Khoozestan Province | |
| 34 km West of Torshak, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 18 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 22 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 69 km | |
| Number of Phases | 7 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89871 | IIEES | SHGR | N | 329.1 | 0.2 | 2013-07-11 01:37:24 | 2013-07-11 07:32:00 | n |
| 89872 | IIEES | SHGR | E | 287.4 | 0.32 | 2013-07-11 01:37:25 | 2013-07-11 07:32:00 | n |
| 89873 | IIEES | KHMZ | N | 58.7 | 0.4 | 2013-07-11 01:37:59 | 2013-07-11 07:32:00 | n |
| 89874 | IIEES | KHMZ | E | 53 | 0.4 | 2013-07-11 01:38:02 | 2013-07-11 07:32:00 | n |
| 89875 | IIEES | ASAO | E | 25 | 0.56 | 2013-07-11 01:38:31 | 2013-07-11 07:32:00 | n |
| 89876 | IIEES | GHVR | N | 14.5 | 0.48 | 2013-07-11 01:38:31 | 2013-07-11 07:32:00 | n |
| 89877 | IIEES | GHVR | E | 16.6 | 0.4 | 2013-07-11 01:38:38 | 2013-07-11 07:32:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2013-07-11 01:37:07 | -0.01 | y | 67.7 | 289 | |||
| IIEES | SHGR | E | Sg | E | 2013-07-11 01:37:16 | 0.01 | y | 67.7 | 289 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-07-11 01:37:29 | 0.08 | y | 207 | 12 | |||
| IIEES | KHMZ | E | Sg | E | 2013-07-11 01:37:54 | 0.03 | y | 207 | 12 | |||
| IIEES | ASAO | Z | Pn | E | 2013-07-11 01:37:40 | -0.07 | y | 296 | 10 | |||
| IIEES | ASAO | E | Sg | E | 2013-07-11 01:38:19 | -0.03 | y | 296 | 10 | |||
| IIEES | GHVR | Z | Pn | E | 2013-07-11 01:37:44 | -0.02 | y | 328 | 30 | |||
