Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2013-07-13 07:53:02.6 |
| Date & Time (Local) | 1392/4/22 12:23:02.6 |

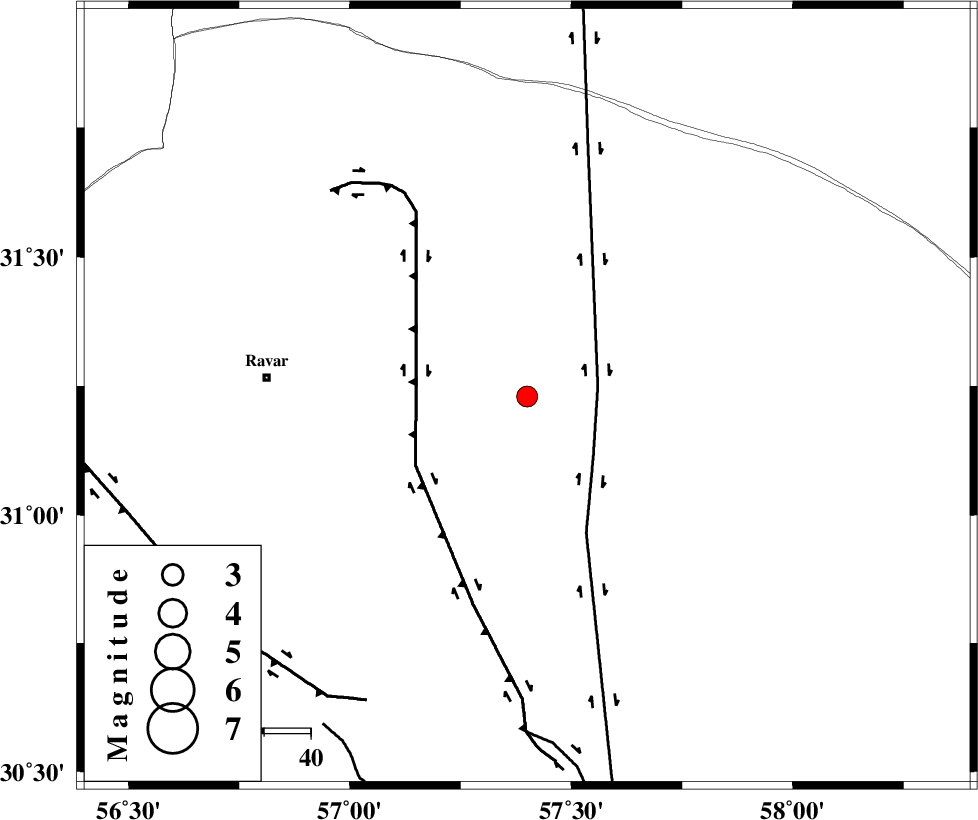

| Location | Lat:31.23 Lon: 57.4 |
| Region | Kerman Province, 56 km East of Ravar |
Nearest Cities |
|
| 56 km East of Ravar, Kerman Province | |
| 58 km East of Dehali, Kerman Province | |
| 66 km North East of Hejdak, Kerman Province | |
| 69 km North East of Harjand, Kerman Province | |
| 73 km North East of Hatkan, Kerman Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 15 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 28 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 73 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >4.4 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 9.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89891 | IIEES | KRBR | E | 170.7 | 0.33 | 2013-07-13 07:54:29 | 2013-07-13 09:20:00 | n |
| 89892 | IIEES | KRBR | N | 184.5 | 0.26 | 2013-07-13 07:54:29 | 2013-07-13 09:20:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pg | E | 2013-07-13 07:53:32 | 0.02 | y | 182 | 63 | |||
| IIEES | BSRN | N | Sg | E | 2013-07-13 07:53:54 | 0.15 | y | 182 | 63 | |||
| IIEES | TABS | Z | Pn | E | 2013-07-13 07:53:43 | -0.32 | y | 269 | 354 | |||
| IIEES | TABS | N | Sg | E | 2013-07-13 07:54:18 | -0.02 | y | 269 | 354 | |||
| IIEES | YZKH | Z | Pn | E | 2013-07-13 07:53:47 | 0.29 | y | 296 | 296 | |||
| IIEES | ZHSF | Z | Pn | E | 2013-07-13 07:53:55 | -0.14 | y | 370 | 118 | |||
