Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2013-07-16 17:06:27.1 |
| Date & Time (Local) | 1392/4/25 21:36:27.1 |

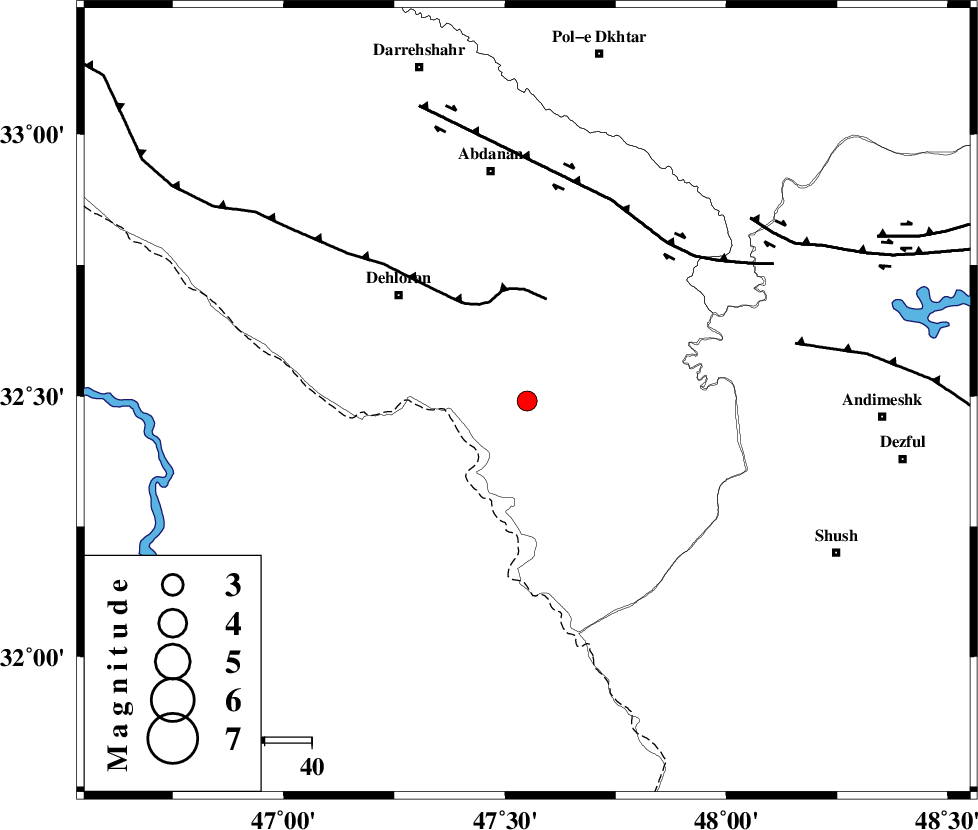

| Location | Lat:32.49 Lon: 47.55 |
| Region | Ilam Province, 35 km South-East of Dehloran |
Nearest Cities |
|
| 19 km East of Musian, Ilam Province | |
| 35 km South East of Dehloran, Ilam Province | |
| 45 km South of Sarabbagh, Ilam Province | |
| 50 km South of Abdanan, Ilam Province | |
| 65 km South East of Bishehzar, Ilam Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 22 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 45 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 58 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 7.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89907 | IIEES | SHGR | N | 229.7 | 0.32 | 2013-07-16 17:07:10 | 2013-07-16 06:44:00 | n |
| 89908 | IIEES | SHGR | E | 228.2 | 0.48 | 2013-07-16 17:07:10 | 2013-07-16 06:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2013-07-16 17:06:48 | 0.04 | y | 126 | 109 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-07-16 17:07:07 | -0.13 | y | 265 | 58 | |||
| IIEES | KHMZ | E | Sg | E | 2013-07-16 17:07:41 | 0.03 | y | 265 | 58 | |||
| IIEES | SNGE | Z | Pn | E | 2013-07-16 17:07:10 | 0.05 | y | 289 | 356 | |||
