Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2013-07-17 20:00:30.9 |
| Date & Time (Local) | 1392/4/27 00:30:30.9 |

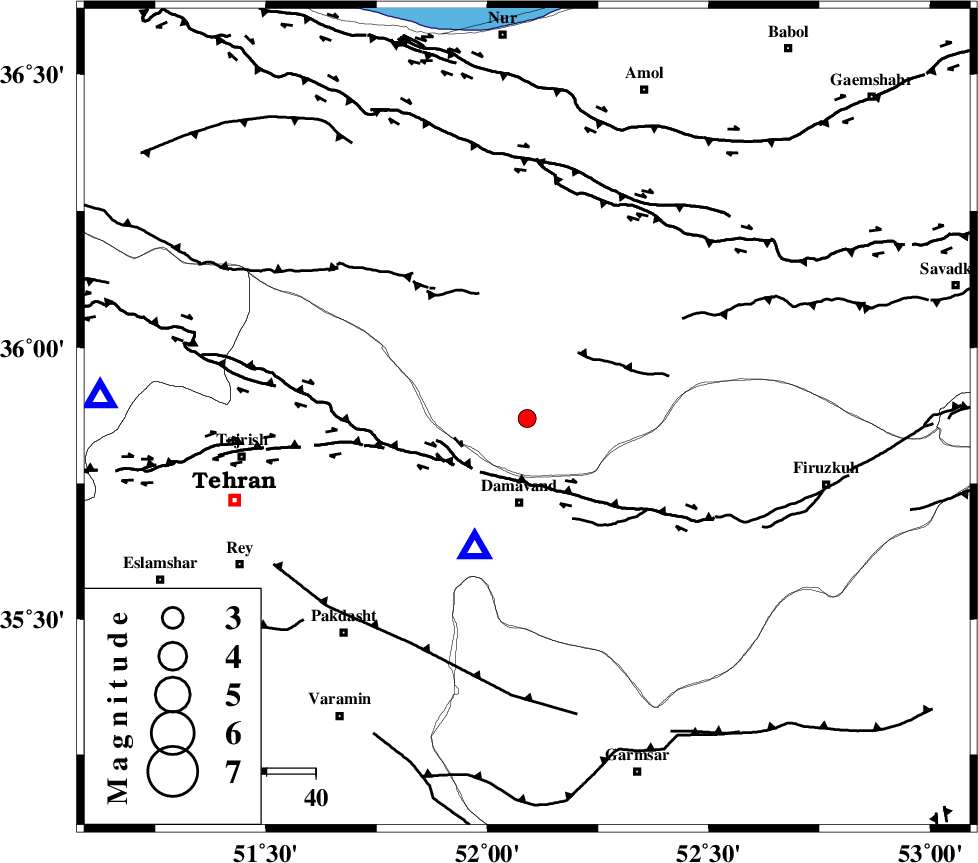

| Location | Lat:35.87 Lon: 52.09 |
| Region | Mazandaran Province, 17 km North of Damavand |
Nearest Cities |
|
| 7 km of Rineh, Mazandaran Province | |
| 10 km West of Gaznak, Mazandaran Province | |
| 14 km North of Abali, Tehran Province | |
| 17 km North of Damavand, Tehran Province | |
| 22 km South West of Baijan, Mazandaran Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 13 km | |
| N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 28 km | |
| KANDOVAN_F (Length: 90 km) , Distance to epicenter: 37 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >4.7 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 3.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89913 | IIEES | DAMV | E | 1851 | 0.12 | 2013-07-17 20:00:40 | 2013-07-17 09:29:00 | n |
| 89914 | IIEES | GHVR | N | 42.7 | 0.48 | 2013-07-17 20:01:25 | 2013-07-17 09:29:00 | n |
| 89915 | IIEES | GHVR | E | 28 | 0.32 | 2013-07-17 20:01:29 | 2013-07-17 09:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2013-07-17 20:00:36 | 0.01 | y | 28.5 | 203 | |||
| IIEES | THKV | Z | Pg | E | 2013-07-17 20:00:50 | 0 | y | 110 | 273 | |||
| IIEES | THKV | N | Sg | E | 2013-07-17 20:01:04 | -0.01 | y | 110 | 273 | |||
| IIEES | GHVR | Z | Pn | E | 2013-07-17 20:01:00 | -0.07 | y | 172 | 207 | |||
| IIEES | ASAO | Z | Pn | E | 2013-07-17 20:01:09 | 0.07 | y | 238 | 233 | |||
