Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2013-07-18 04:04:30.9 |
| Date & Time (Local) | 1392/4/27 08:34:30.9 |

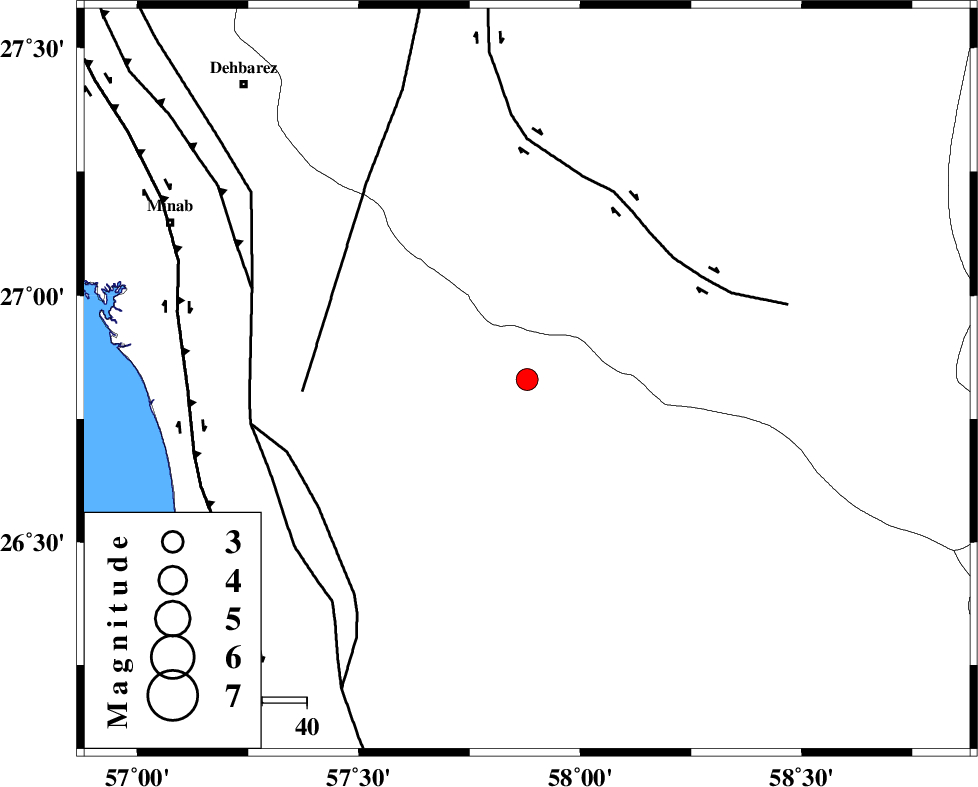

| Location | Lat:26.83 Lon: 57.88 |
| Region | Hormozgan Province, 75 km South-East of Manujan |
Nearest Cities |
|
| 26 km North of Angahran, Hormozgan Province | |
| 31 km South of Keshmiran, Kerman Province | |
| 37 km North East of Darpahn, Hormozgan Province | |
| 45 km East of Sanadrak, Hormozgan Province | |
| 67 km South East of Koryan, Hormozgan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| JIROFT_F (Length: 144 km) , Distance to epicenter: 43 km | |
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 50 km | |
| ZENDAN_MINAB_F_Z2 (Length: 63 km) , Distance to epicenter: 55 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >3.6 km |
| Error in Longitude | 4.8 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89917 | IIEES | BNDS | N | 184.4 | 0.43 | 2013-07-18 04:05:27 | 2013-07-18 05:36:00 | n |
| 89918 | IIEES | BNDS | E | 239.8 | 0.43 | 2013-07-18 04:05:28 | 2013-07-18 05:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHBR | Z | Pn | E | 2013-07-18 04:05:15 | 0.41 | y | 294 | 117 | |||
| IIEES | CHBR | E | Sg | E | 2013-07-18 04:05:53 | -0.08 | y | 294 | 117 | |||
| IIEES | KRBR | Z | Pn | E | 2013-07-18 04:05:23 | -0.12 | y | 366 | 343 | |||
| IIEES | KRBR | E | Sg | E | 2013-07-18 04:06:14 | 0.47 | y | 366 | 343 | |||
| IIEES | ZHSF | Z | Pn | E | 2013-07-18 04:05:30 | -0.23 | y | 419 | 42 | |||
| IIEES | GHIR | Z | Pn | E | 2013-07-18 04:05:41 | -0.38 | y | 510 | 290 | |||
| IIEES | BSRN | Z | Pn | E | 2013-07-18 04:05:50 | 0.04 | y | 582 | 12 | |||
| IIEES | BSRN | E | Sg | E | 2013-07-18 04:07:12 | -0.35 | y | 582 | 12 | |||
