Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2013-07-18 20:49:34.2 |
| Date & Time (Local) | 1392/4/28 01:19:34.2 |

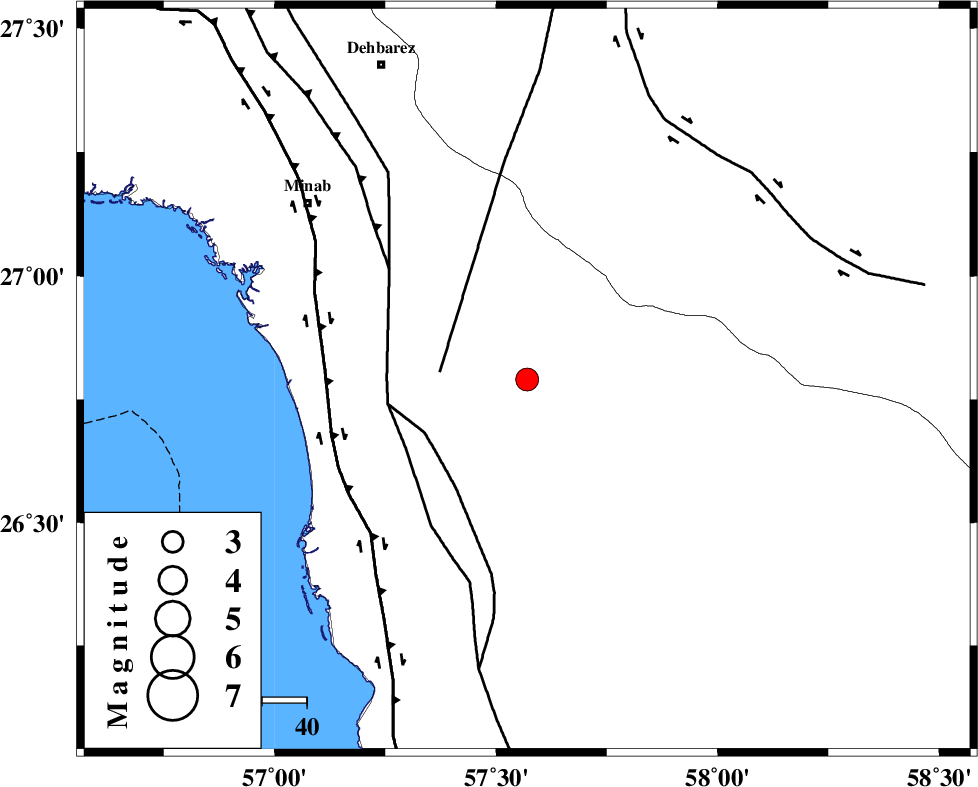

| Location | Lat:26.79 Lon: 57.57 |
| Region | Hormozgan Province, 69 km South of Manujan |
Nearest Cities |
|
| 15 km East of Sanadrak, Hormozgan Province | |
| 16 km North of Darpahn, Hormozgan Province | |
| 39 km North West of Angahran, Hormozgan Province | |
| 40 km South East of Koryan, Hormozgan Province | |
| 49 km South West of Keshmiran, Kerman Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 20 km | |
| ZENDAN_MINAB_F_Z2 (Length: 63 km) , Distance to epicenter: 26 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 31 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89934 | IIEES | BNDS | N | 407.3 | 0.64 | 2013-07-18 20:50:35 | 2013-07-18 10:16:00 | n |
| 89935 | IIEES | BNDS | E | 403.6 | 0.44 | 2013-07-18 20:50:37 | 2013-07-18 10:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pn | E | 2013-07-18 20:50:01 | -0.02 | y | 154 | 296 | |||
| IIEES | CHBR | Z | Pn | E | 2013-07-18 20:50:21 | 0.03 | y | 320 | 114 | |||
| IIEES | ZHSF | Z | Pn | E | 2013-07-18 20:50:36 | -0.13 | y | 444 | 44 | |||
| IIEES | BSRN | Z | Pn | E | 2013-07-18 20:50:55 | 0.16 | y | 593 | 14 | |||
