Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2013-07-23 07:44:21.2 |
| Date & Time (Local) | 1392/5/1 12:14:21.2 |

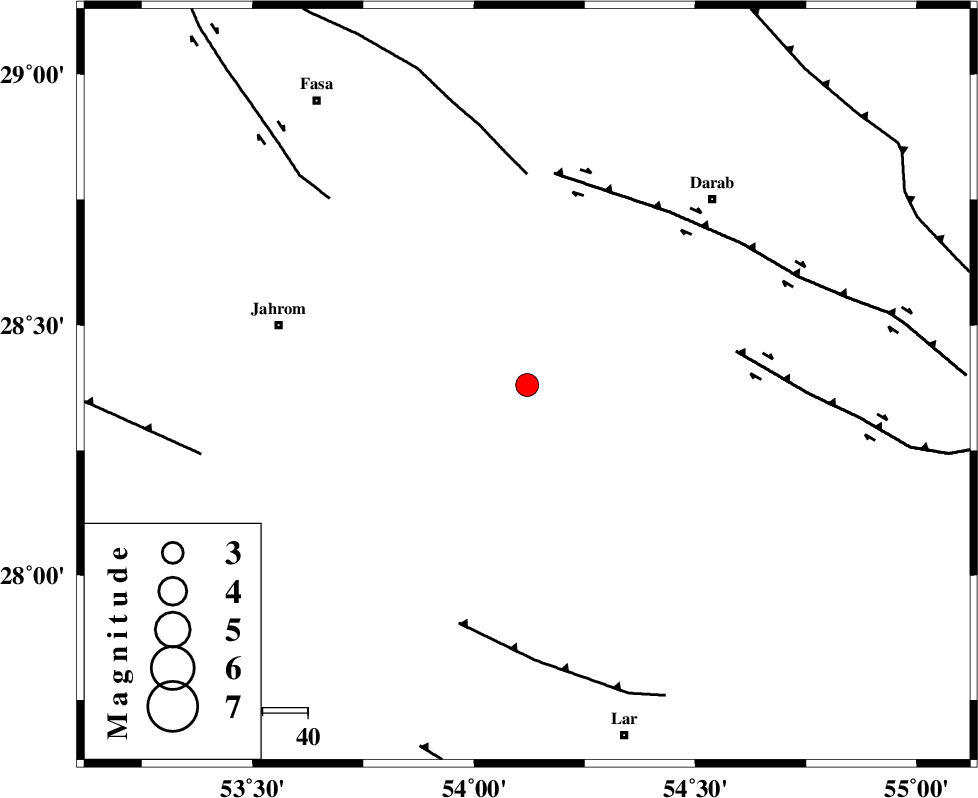

| Location | Lat:28.38 Lon: 54.12 |
| Region | Fars Province, 57 km South-East of Jahrom |
Nearest Cities |
|
| 8 km of Dabiran, Fars Province | |
| 23 km North West of Shahr-e pir, Fars Province | |
| 29 km North West of Hajiabad, Fars Province | |
| 33 km North East of Juyam, Fars Province | |
| 39 km East of Khorramabad, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 47 km | |
| BAKHTEGAN_F (Length: 94 km) , Distance to epicenter: 47 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 47 km | |
| Number of Phases | 6 |
| RMS | 0.4 |
| Number of Stations | 4 |
| Error in Latitude | >7.1 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89977 | IIEES | GHIR | N | 1003.8 | 0.15 | 2013-07-23 07:44:57 | 2013-07-23 09:15:00 | n |
| 89978 | IIEES | GHIR | E | 933.2 | 0.37 | 2013-07-23 07:44:57 | 2013-07-23 09:15:00 | n |
| 89979 | IIEES | KRBR | N | 49.8 | 0.4 | 2013-07-23 07:45:54 | 2013-07-23 09:15:00 | n |
| 89980 | IIEES | KRBR | E | 55.3 | 0.4 | 2013-07-23 07:45:56 | 2013-07-23 09:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2013-07-23 07:44:40 | 0.38 | y | 112 | 265 | |||
| IIEES | BNDS | Z | Pn | E | 2013-07-23 07:44:57 | 0.06 | y | 229 | 118 | |||
| IIEES | AHRM | Z | Pn | E | 2013-07-23 07:45:02 | -0.75 | y | 282 | 282 | |||
| IIEES | AHRM | E | Sg | E | 2013-07-23 07:45:40 | 0.21 | y | 282 | 282 | |||
| IIEES | KRBR | Z | Pn | E | 2013-07-23 07:45:07 | -0.05 | y | 312 | 55 | |||
| IIEES | KRBR | E | Sg | E | 2013-07-23 07:45:49 | 0.13 | y | 312 | 55 | |||
