Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2013-07-23 07:54:41.8 |
| Date & Time (Local) | 1392/5/1 12:24:41.8 |
| Location | Lat:28.44 Lon: 54.09 |
| Region | Fars Province, 53 km East of Jahrom |
Nearest Cities |
|
| 11 km North West of Dabiran, Fars Province | |
| 29 km North West of Shahr-e pir, Fars Province | |
| 33 km North West of Hajiabad, Fars Province | |
| 36 km East of Khorramabad, Fars Province | |
| 36 km North East of Juyam, Fars Province | |
| Depth | 14 km |
| Agency | |

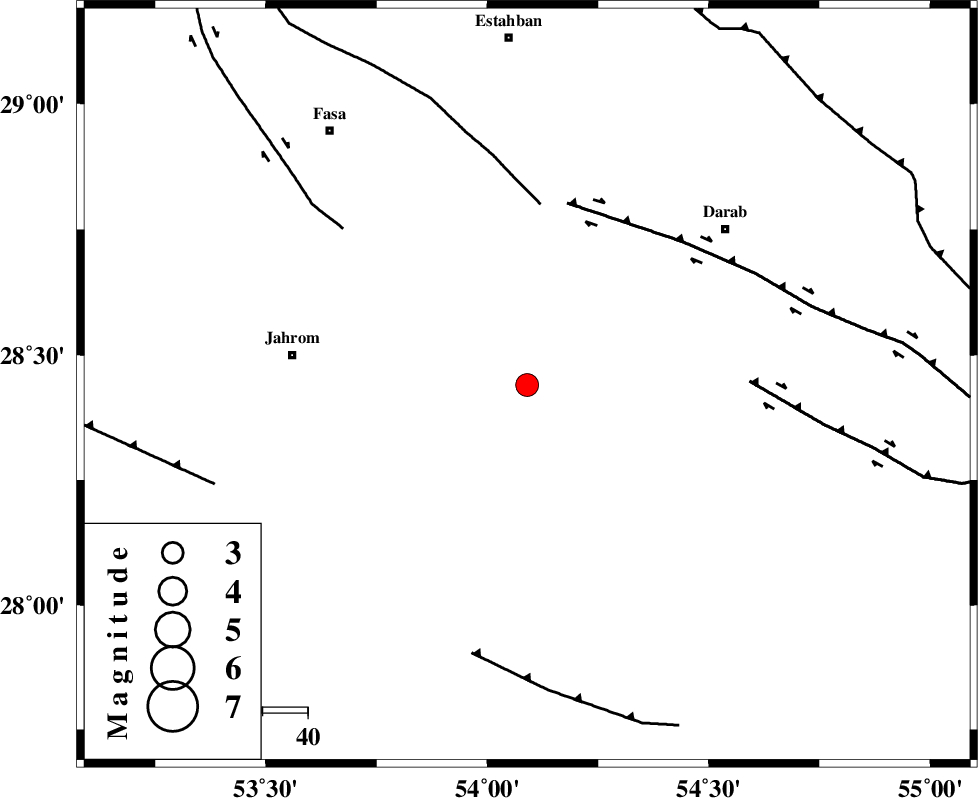

Faults within 150 km: |
|
| BAKHTEGAN_F (Length: 94 km) , Distance to epicenter: 40 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 41 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 49 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >5.3 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 7.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 89981 | IIEES | GHIR | N | 707.3 | 0.44 | 2013-07-23 07:55:17 | 2013-07-23 09:27:00 | n |
| 89982 | IIEES | GHIR | E | 697.6 | 0.38 | 2013-07-23 07:55:17 | 2013-07-23 09:27:00 | n |
| 89983 | IIEES | KRBR | N | 73.9 | 0.34 | 2013-07-23 07:56:15 | 2013-07-23 09:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHIR | Z | Pg | E | 2013-07-23 07:55:00 | 0.51 | y | 110 | 262 | |||
| IIEES | BNDS | Z | Pn | E | 2013-07-23 07:55:18 | -0.35 | y | 235 | 119 | |||
| IIEES | AHRM | Z | Pn | E | 2013-07-23 07:55:23 | -0.06 | y | 277 | 281 | |||
| IIEES | AHRM | N | Sg | E | 2013-07-23 07:55:59 | -0.4 | y | 277 | 281 | |||
| IIEES | KRBR | Z | Pn | E | 2013-07-23 07:55:28 | 0.38 | y | 311 | 56 | |||
| IIEES | KRBR | N | Sg | E | 2013-07-23 07:56:09 | -0.14 | y | 311 | 56 | |||
| IIEES | YZKH | Z | Pn | E | 2013-07-23 07:55:44 | 0.09 | y | 441 | 6 | |||
