Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2013-07-26 05:43:50.4 |
| Date & Time (Local) | 1392/5/4 10:13:50.4 |

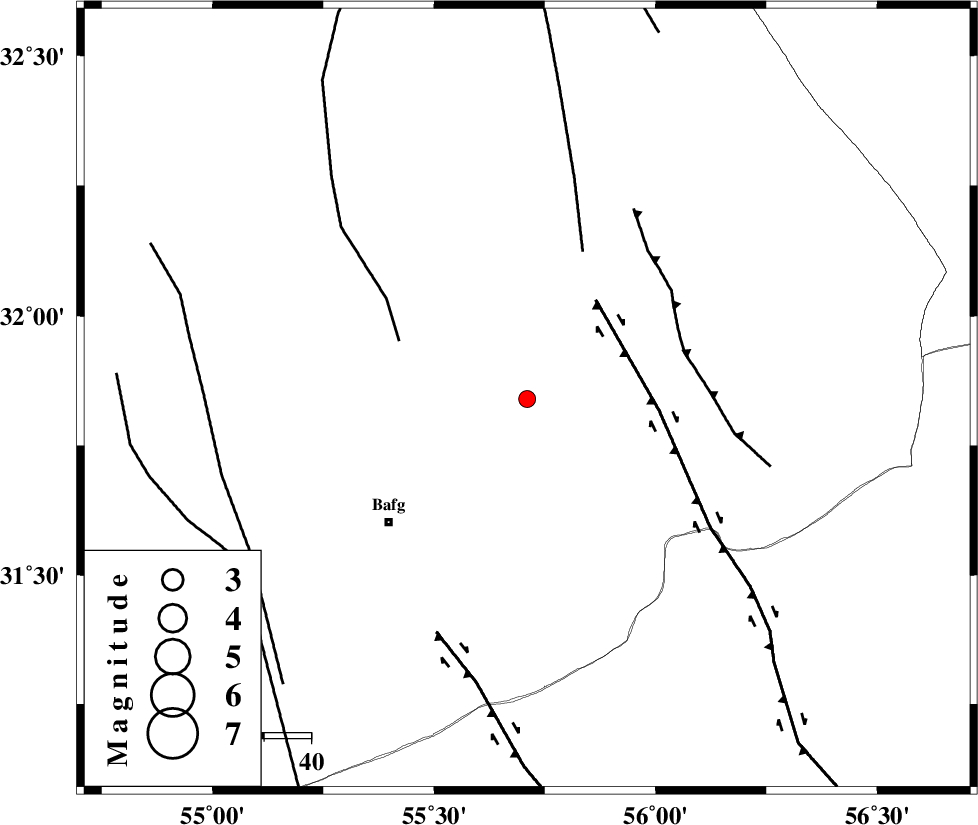

| Location | Lat:31.84 Lon: 55.71 |
| Region | Yazd Province, 40 km North-East of Bafq |
Nearest Cities |
|
| 13 km North of Kushk, Yazd Province | |
| 30 km West of Behabad, Yazd Province | |
| 35 km North East of Mobarake, Yazd Province | |
| 37 km North West of Benestan, Yazd Province | |
| 40 km North East of Bafq, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 26 km | |
| POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 30 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 34 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >2.9 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90000 | IIEES | KRBR | E | 42.9 | 0.44 | 2013-07-26 05:44:58 | 2013-07-26 07:16:00 | n |
| 90001 | IIEES | KRBR | N | 33.1 | 0.4 | 2013-07-26 05:44:59 | 2013-07-26 07:16:00 | n |
| 90002 | IIEES | TABS | N | 13.1 | 0.4 | 2013-07-26 05:45:09 | 2013-07-26 07:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2013-07-26 05:44:10 | -0.3 | y | 122 | 300 | |||
| IIEES | YZKH | E | Sg | E | 2013-07-26 05:44:26 | 0.2 | y | 122 | 300 | |||
| IIEES | KRBR | Z | Pn | E | 2013-07-26 05:44:26 | 0.1 | y | 230 | 154 | |||
| IIEES | TABS | Z | Pn | E | 2013-07-26 05:44:27 | 0.01 | y | 240 | 33 | |||
| IIEES | TABS | N | Sg | E | 2013-07-26 05:44:58 | 0.03 | y | 240 | 33 | |||
| IIEES | BSRN | Z | Pn | E | 2013-07-26 05:44:38 | -0.05 | y | 324 | 87 | |||
