Event Specification
Magnitude |
2.1 |
| Date & Time (UTC) | 2013-07-26 11:40:32.1 |
| Date & Time (Local) | 1392/5/4 16:10:32.1 |

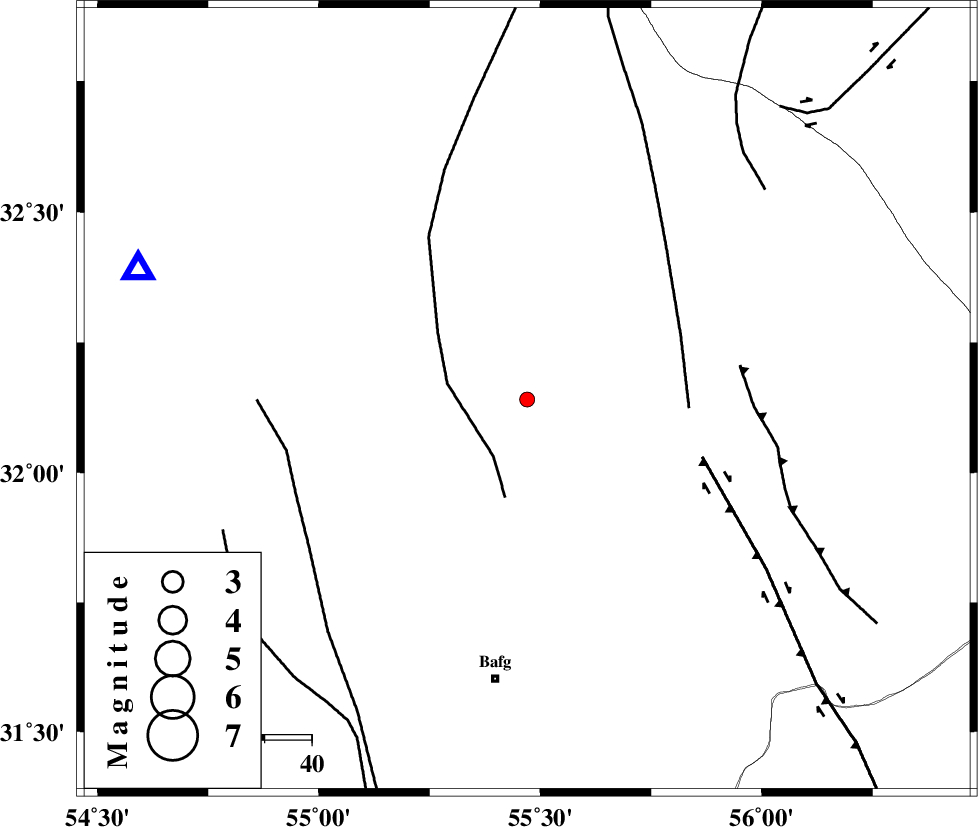

| Location | Lat:32.14 Lon: 55.47 |
| Region | Yazd Province, 60 km North of Bafq |
Nearest Cities |
|
| 54 km North West of Kushk, Yazd Province | |
| 57 km North of Mobarake, Yazd Province | |
| 60 km North of Bafq, Yazd Province | |
| 60 km North West of Behabad, Yazd Province | |
| 73 km North West of Benestan, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 14 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 35 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 39 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >5 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90008 | IIEES | TABS | N | 10.1 | 0.4 | 2013-07-26 11:41:44 | 2013-07-26 11:18:00 | n |
| 90009 | IIEES | KRBR | N | 16.5 | 0.56 | 2013-07-26 11:41:55 | 2013-07-26 11:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2013-07-26 11:40:47 | -0.07 | y | 87.1 | 289 | |||
| IIEES | YZKH | E | Sg | E | 2013-07-26 11:40:58 | 0.01 | y | 87.1 | 289 | |||
| IIEES | TABS | Z | Pn | E | 2013-07-26 11:41:08 | 0.25 | y | 227 | 42 | |||
| IIEES | TABS | E | Sg | E | 2013-07-26 11:41:36 | -0.1 | y | 227 | 42 | |||
| IIEES | BSRN | E | Pn | E | 2013-07-26 11:41:22 | -0.1 | y | 346 | 92 | |||
