Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2013-07-28 12:46:44.6 |
| Date & Time (Local) | 1392/5/6 17:16:44.6 |

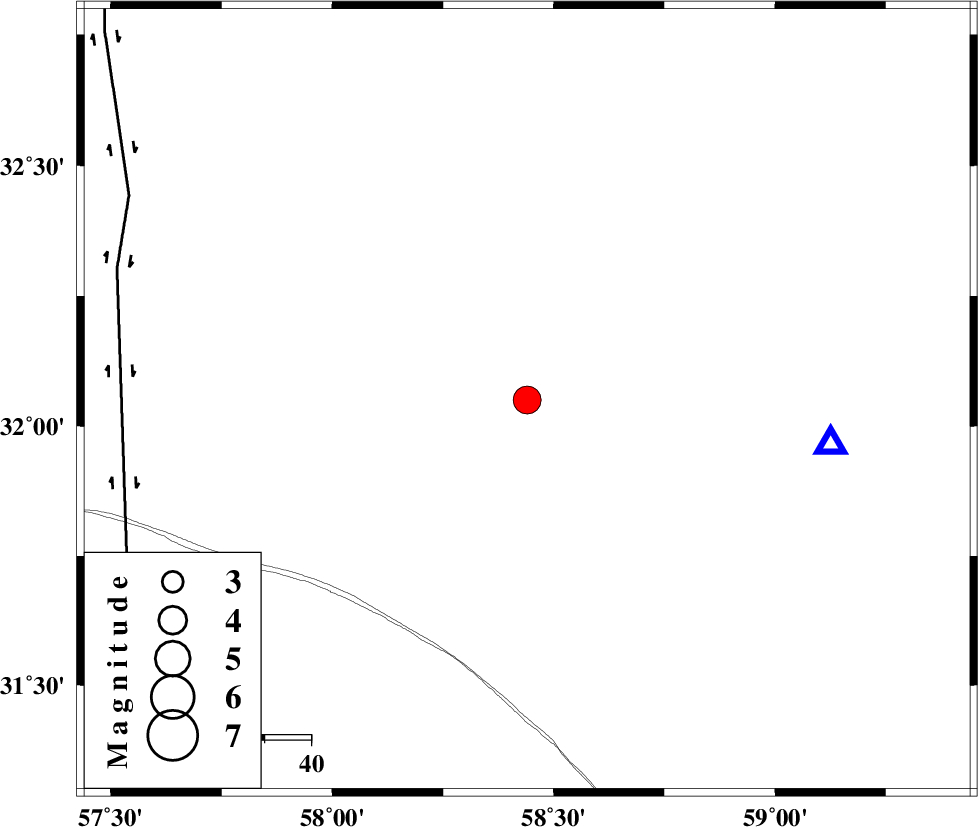

| Location | Lat:32.05 Lon: 58.44 |
| Region | Khorasan(south) Province, 120 km South-West of Birjand |
Nearest Cities |
|
| 61 km South West of Hamand, Khorasan(south) Province | |
| 81 km South West of Mazhan, Khorasan(south) Province | |
| 84 km South West of Bisheh bala, Khorasan(south) Province | |
| 89 km South West of Khusef, Khorasan(south) Province | |
| 94 km South East of Hoz-e qorban, Yazd Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 92 km | |
| MOHAMMADABAD_F (Length: 71 km) , Distance to epicenter: 125 km | |
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 127 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 4.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90021 | IIEES | KRBR | E | 433.5 | 0.56 | 2013-07-28 12:48:09 | 2013-07-28 02:10:00 | n |
| 90022 | IIEES | YZKH | E | 416.9 | 0.48 | 2013-07-28 12:48:33 | 2013-07-28 02:10:00 | n |
| 90023 | IIEES | YZKH | N | 202.6 | 0.44 | 2013-07-28 12:48:33 | 2013-07-28 02:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pn | E | 2013-07-28 12:47:18 | -0.16 | y | 216 | 325 | |||
| IIEES | TABS | E | Sg | E | 2013-07-28 12:47:46 | 0.06 | y | 216 | 325 | |||
| IIEES | SHRT | Z | Pn | E | 2013-07-28 12:47:22 | -0.05 | y | 247 | 44 | |||
| IIEES | SHRT | E | Sg | E | 2013-07-28 12:47:54 | 0.06 | y | 247 | 44 | |||
| IIEES | KRBR | Z | Pn | E | 2013-07-28 12:47:26 | 0.05 | y | 280 | 215 | |||
| IIEES | YZKH | Z | Pn | E | 2013-07-28 12:47:37 | 0.05 | y | 365 | 277 | |||
