Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2013-07-29 07:14:52.3 |
| Date & Time (Local) | 1392/5/7 11:44:52.3 |

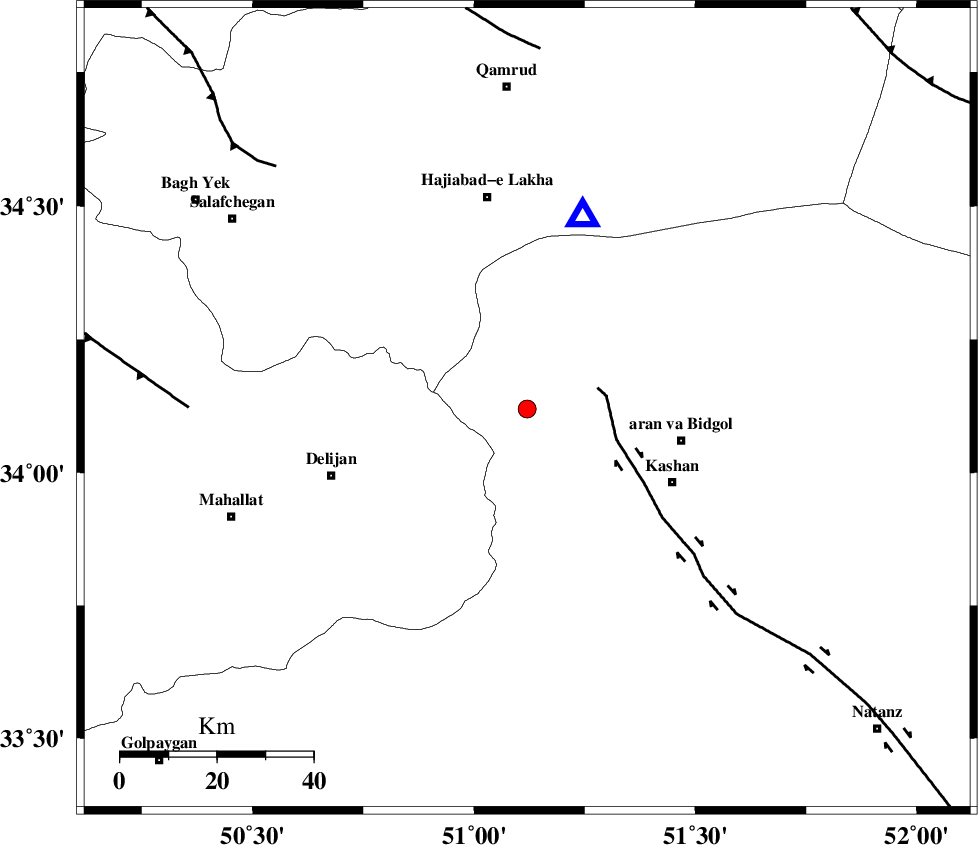

| Location | Lat:34.12 Lon: 51.12 |
| Region | Esfahan Province, 33 km West of Aran va bidgol |
Nearest Cities |
|
| 5 km North of Armak, Esfahan Province | |
| 14 km West of Mashgan, Esfahan Province | |
| 15 km North West of Astarak, Esfahan Province | |
| 15 km South East of Yahyaabad, Esfahan Province | |
| 17 km North East of Joshaq, Markazi Province | |
| Depth | 19 km |
| Agency | |
Faults within 150 km: |
|
| KASHAN_F (Length: 44 km) , Distance to epicenter: 15 km | |
| ZEFREH_F (Length: 124 km) , Distance to epicenter: 51 km | |
| TAFRESH_F (Length: 117 km) , Distance to epicenter: 70 km | |
| Number of Phases | 7 |
| RMS | 0 |
| Number of Stations | 5 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 2.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90031 | IIEES | GHVR | E | 484.5 | 0.24 | 2013-07-29 07:15:08 | 2013-07-29 08:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHVR | Z | Pg | E | 2013-07-29 07:15:00 | -0.04 | y | 41.6 | 16 | |||
| IIEES | GHVR | E | Sg | E | 2013-07-29 07:15:05 | 0.03 | y | 41.6 | 16 | |||
| IIEES | ASAO | Z | Pg | E | 2013-07-29 07:15:10 | -0.04 | y | 111 | 296 | |||
| IIEES | ASAO | E | Sg | E | 2013-07-29 07:15:24 | 0.01 | y | 111 | 296 | |||
| IIEES | KHMZ | Z | Pg | E | 2013-07-29 07:15:11 | 0.03 | y | 115 | 249 | |||
| IIEES | CHTH | Z | Pg | E | 2013-07-29 07:15:24 | 0.02 | y | 198 | 0 | |||
| IIEES | THKV | Z | Pn | E | 2013-07-29 07:15:24 | 0 | y | 200 | 354 | |||
