Event Specification
Magnitude |
2 |
| Date & Time (UTC) | 2013-07-30 10:19:38.2 |
| Date & Time (Local) | 1392/5/8 14:49:38.2 |

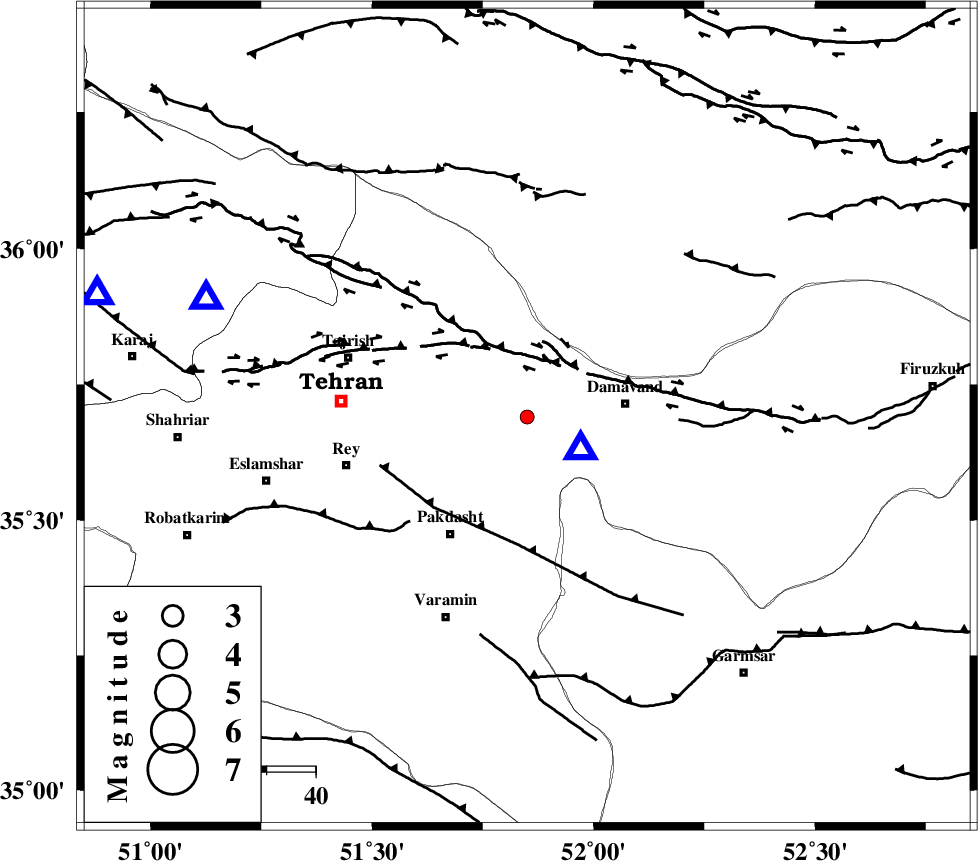

| Location | Lat:35.69 Lon: 51.85 |
| Region | Tehran Province, 20 km West of Damavand |
Nearest Cities |
|
| 6 km of Rudehen, Tehran Province | |
| 6 km of Bumehen, Tehran Province | |
| 15 km North West of Ab sard, Tehran Province | |
| 16 km West of Abali, Tehran Province | |
| 18 km South East of Lavasan, Tehran Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 13 km | |
| N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 16 km | |
| EYVANEKEY_F (Length: 74 km) , Distance to epicenter: 26 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >2 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 4.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90048 | IIEES | THKV | N | 107.5 | 0.44 | 2013-07-30 10:20:07 | 2013-07-30 11:44:00 | n |
| 90049 | IIEES | THKV | E | 53.6 | 0.52 | 2013-07-30 10:20:07 | 2013-07-30 11:44:00 | n |
| 90050 | IIEES | GHVR | N | 12.3 | 0.56 | 2013-07-30 10:20:27 | 2013-07-30 11:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHTH | Z | Pg | E | 2013-07-30 10:19:50 | -0.1 | y | 69.9 | 290 | |||
| IIEES | CHTH | E | Sg | E | 2013-07-30 10:19:59 | 0.21 | y | 69.9 | 290 | |||
| IIEES | THKV | N | Sg | E | 2013-07-30 10:20:05 | -0.15 | y | 91.5 | 286 | |||
| IIEES | GHVR | Z | Pg | E | 2013-07-30 10:20:02 | 0.11 | y | 145 | 203 | |||
| IIEES | ASAO | Z | Pn | E | 2013-07-30 10:20:11 | -0.03 | y | 209 | 233 | |||
| IIEES | ASAO | E | Sg | E | 2013-07-30 10:20:37 | -0.05 | y | 209 | 233 | |||
