Event Specification
Magnitude |
2.1 |
| Date & Time (UTC) | 2013-07-31 17:47:48.1 |
| Date & Time (Local) | 1392/5/9 22:17:48.1 |

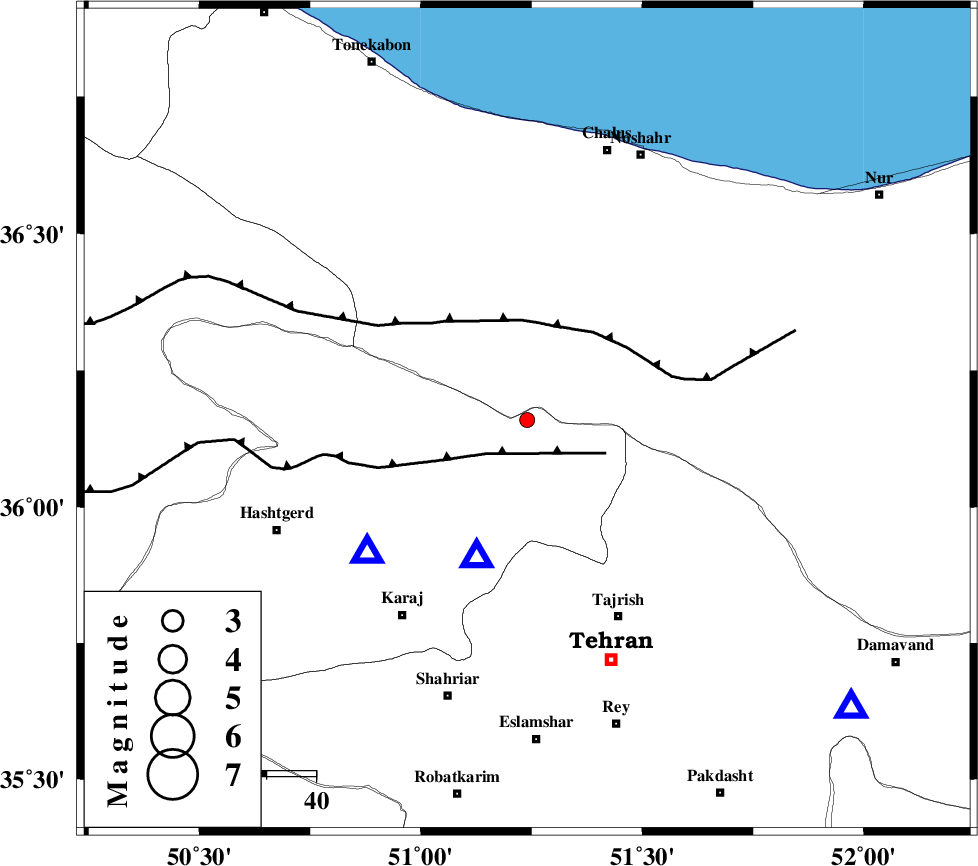

| Location | Lat:36.16 Lon: 51.24 |
| Region | Tehran Province, 44 km North-West of Tajrish |
Nearest Cities |
|
| 10 km of Pol-e zanguleh, Mazandaran Province | |
| 16 km North West of Nesa, Tehran Province | |
| 23 km North West of Asara, Tehran Province | |
| 26 km South of Tavir, Mazandaran Province | |
| 30 km West of Void, Mazandaran Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| TALEGHAN_F (Length: 71 km) , Distance to epicenter: 8 km | |
| KANDOVAN_F (Length: 90 km) , Distance to epicenter: 9 km | |
| MOSHA_F (Length: 234 km) , Distance to epicenter: 11 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90067 | IIEES | THKV | N | 168 | 0.28 | 2013-07-31 17:48:03 | 2013-07-31 07:10:00 | n |
| 90068 | IIEES | THKV | E | 176.8 | 0.12 | 2013-07-31 17:48:03 | 2013-07-31 07:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | THKV | Z | Pg | E | 2013-07-31 17:47:56 | 0 | y | 42.4 | 230 | |||
| IIEES | DAMV | Z | Pg | E | 2013-07-31 17:48:03 | 0 | y | 88.6 | 132 | |||
| IIEES | GHVR | Z | Pn | E | 2013-07-31 17:48:19 | 0 | y | 187 | 180 | |||
| IIEES | GHVR | E | Sg | E | 2013-07-31 17:48:41 | 0 | y | 187 | 180 | |||
