Event Specification
Magnitude |
4 |
| Date & Time (UTC) | 2013-07-31 22:09:05.3 |
| Date & Time (Local) | 1392/5/10 02:39:05.3 |

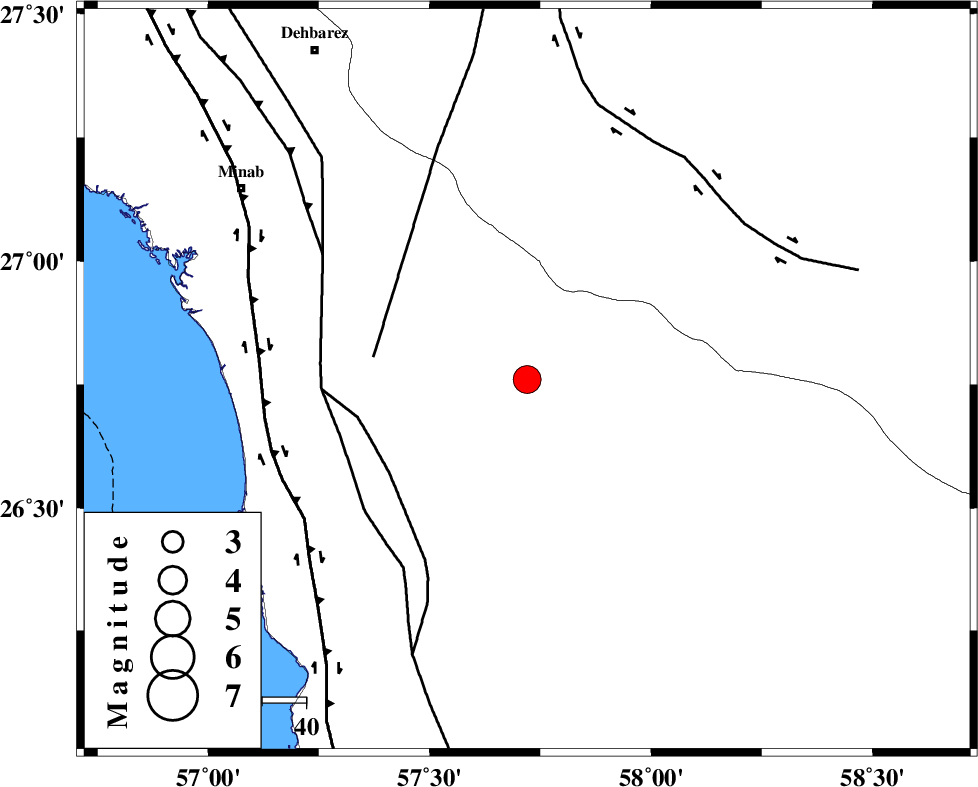

| Location | Lat:26.76 Lon: 57.72 |
| Region | Hormozgan Province, 75 km South-East of Manujan |
Nearest Cities |
|
| 19 km North East of Darpahn, Hormozgan Province | |
| 25 km North West of Angahran, Hormozgan Province | |
| 30 km East of Sanadrak, Hormozgan Province | |
| 43 km South West of Keshmiran, Kerman Province | |
| 54 km South East of Koryan, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 35 km | |
| ZENDAN_MINAB_F_Z2 (Length: 63 km) , Distance to epicenter: 37 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 44 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >2.9 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90069 | IIEES | BNDS | E | 2193.4 | 0.44 | 2013-07-31 22:09:54 | 2013-07-31 11:40:00 | n |
| 90070 | IIEES | KRBR | N | 279 | 0.44 | 2013-07-31 22:11:03 | 2013-07-31 11:40:00 | n |
| 90071 | IIEES | KRBR | E | 340.1 | 0.56 | 2013-07-31 22:11:06 | 2013-07-31 11:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHBR | Z | Pn | E | 2013-07-31 22:09:50 | -0.05 | y | 305 | 115 | |||
| IIEES | KRBR | Z | Pn | E | 2013-07-31 22:09:59 | -0.06 | y | 369 | 345 | |||
| IIEES | ZHSF | Z | Pn | E | 2013-07-31 22:10:07 | 0.23 | y | 435 | 43 | |||
| IIEES | ZHSF | E | Sg | E | 2013-07-31 22:11:06 | -0.09 | y | 435 | 43 | |||
| IIEES | GHIR | Z | Pn | E | 2013-07-31 22:10:14 | -0.05 | y | 497 | 291 | |||
| IIEES | BSRN | Z | Pn | E | 2013-07-31 22:10:26 | -0.01 | y | 592 | 13 | |||
| IIEES | YZKH | Z | Pn | E | 2013-07-31 22:10:39 | 0.07 | y | 693 | 335 | |||
