Event Specification
Magnitude |
4.7 |
| Date & Time (UTC) | 2013-08-03 15:25:07.3 |
| Date & Time (Local) | 1392/5/12 19:55:07.3 |

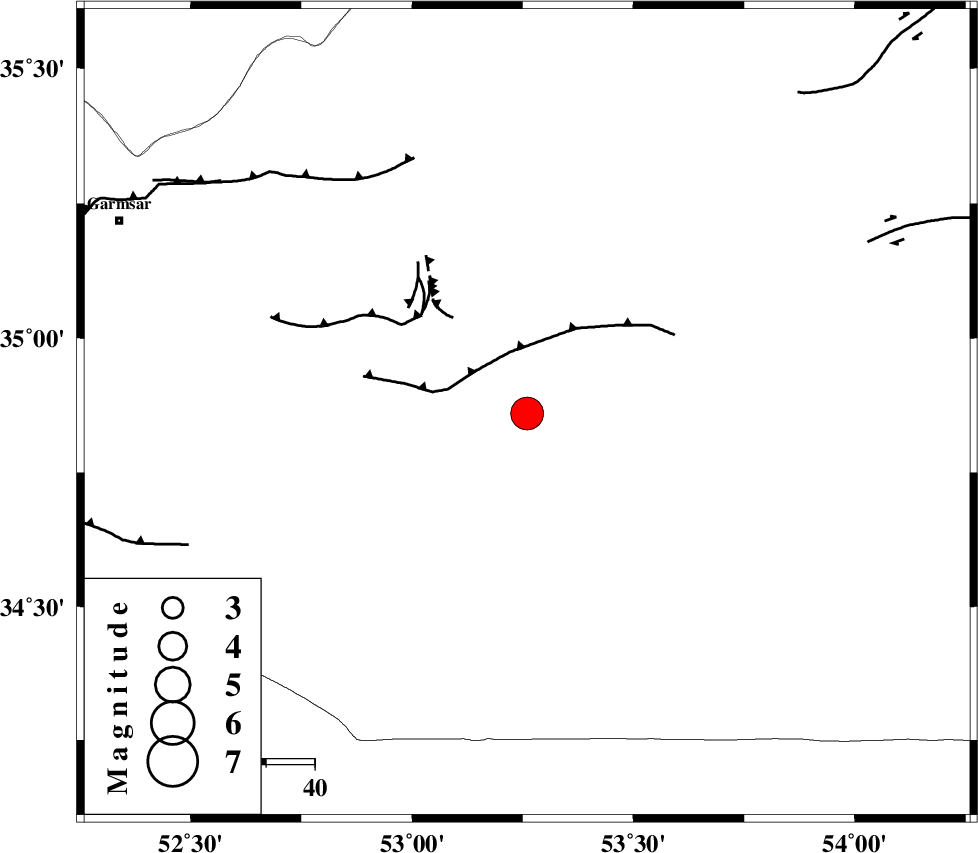

| Location | Lat:34.86 Lon: 53.26 |
| Region | Semnan Province, 80 km South-West of Semnan |
Nearest Cities |
|
| 63 km South East of Lasjerd, Semnan Province | |
| 67 km South of Sorkheh, Semnan Province | |
| 76 km South East of Kohanabad, Semnan Province | |
| 78 km South West of Alae, Semnan Province | |
| 80 km South West of Semnan, Semnan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| KUH_E_GUGERD_F (Length: 73 km) , Distance to epicenter: 13 km | |
| KUH_E_GACHAB_F1 (Length: 53 km) , Distance to epicenter: 30 km | |
| KUH_E_GACHAB_F2 (Length: 31 km) , Distance to epicenter: 44 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 8 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 3.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90102 | IIEES | GHVR | E | 12000.3 | 0.56 | 2013-08-03 15:26:06 | 2013-08-03 04:53:00 | n |
| 90103 | IIEES | GHVR | N | 9392.4 | 0.52 | 2013-08-03 15:26:07 | 2013-08-03 04:53:00 | n |
| 90104 | IIEES | CHTH | E | 8293.2 | 0.4 | 2013-08-03 15:26:14 | 2013-08-03 04:53:00 | n |
| 90105 | IIEES | NASN | N | 3070.6 | 0.52 | 2013-08-03 15:26:15 | 2013-08-03 04:53:00 | n |
| 90106 | IIEES | NASN | E | 2777.7 | 0.48 | 2013-08-03 15:26:19 | 2013-08-03 04:53:00 | n |
| 90107 | IIEES | ASAO | E | 2524.6 | 0.52 | 2013-08-03 15:26:32 | 2013-08-03 04:53:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2013-08-03 15:25:31 | 0.06 | y | 145 | 307 | |||
| IIEES | GHVR | Z | Pn | E | 2013-08-03 15:25:38 | 0.02 | y | 189 | 258 | |||
| IIEES | CHTH | Z | Pg | E | 2013-08-03 15:25:44 | -0.06 | y | 226 | 302 | |||
| IIEES | NASN | Z | Pn | E | 2013-08-03 15:25:43 | -0.06 | y | 232 | 191 | |||
| IIEES | THKV | Z | Pn | E | 2013-08-03 15:25:45 | -0.07 | y | 246 | 299 | |||
| IIEES | ASAO | Z | Pn | E | 2013-08-03 15:25:52 | 0.06 | y | 298 | 264 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-08-03 15:25:55 | 0.04 | y | 328 | 249 | |||
| IIEES | TABS | Z | Pn | E | 2013-08-03 15:26:02 | 0.03 | y | 380 | 110 | |||
