Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2013-08-06 16:28:47.9 |
| Date & Time (Local) | 1392/5/15 20:58:47.9 |

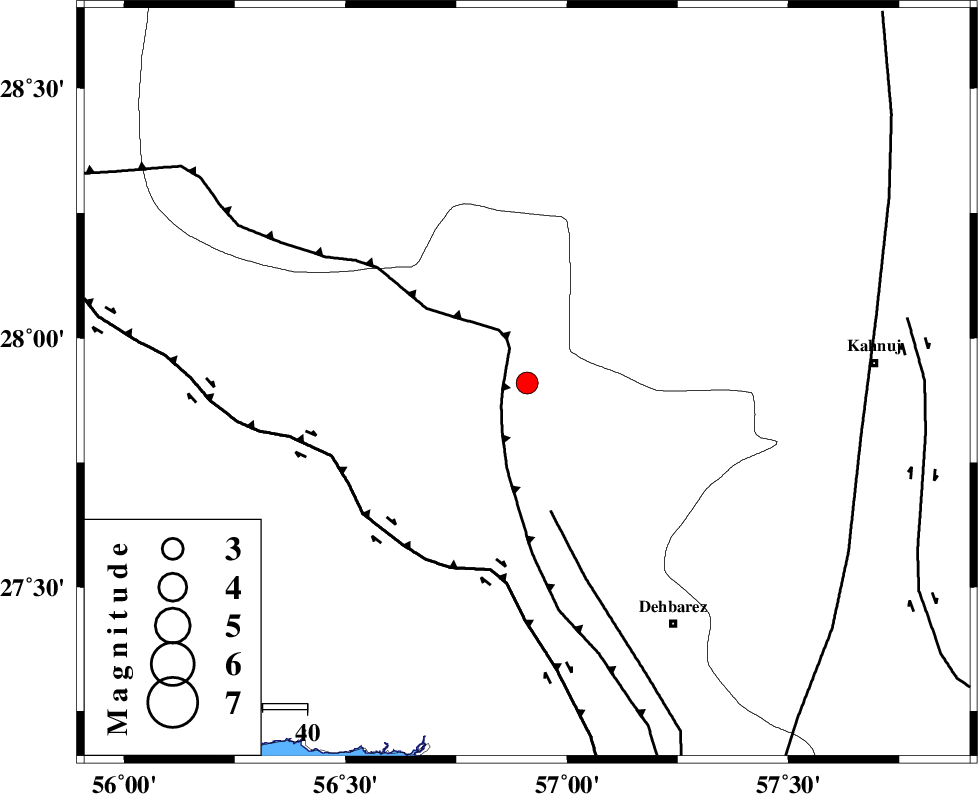

| Location | Lat:27.91 Lon: 56.91 |
| Region | Hormozgan Province, 63 km North-West of Dehbarez |
Nearest Cities |
|
| 37 km North West of Ziaratali, Hormozgan Province | |
| 38 km North West of Fariab, Hormozgan Province | |
| 39 km South West of Faryab, Kerman Province | |
| 48 km South of Sarkhan, Kerman Province | |
| 51 km South West of Hurpasefid, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 5 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 29 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 42 km | |
| Number of Phases | 4 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 5.8 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90148 | IIEES | BNDS | N | 576.8 | 0.2 | 2013-08-06 16:29:17 | 2013-08-06 05:55:00 | n |
| 90149 | IIEES | KRBR | N | 116.9 | 0.32 | 2013-08-06 16:29:53 | 2013-08-06 05:55:00 | n |
| 90150 | IIEES | KRBR | E | 162.5 | 0.24 | 2013-08-06 16:29:53 | 2013-08-06 05:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2013-08-06 16:29:03 | -0.05 | y | 92.4 | 232 | |||
| IIEES | KRBR | Z | Pn | E | 2013-08-06 16:29:24 | 0.26 | y | 230 | 356 | |||
| IIEES | KRBR | E | Sg | E | 2013-08-06 16:29:53 | -0.15 | y | 230 | 356 | |||
| IIEES | CHBR | Z | Pn | E | 2013-08-06 16:29:49 | -0.09 | y | 438 | 125 | |||
