Event Specification
Magnitude |
1.9 |
| Date & Time (UTC) | 2013-08-13 13:49:37.0 |
| Date & Time (Local) | 1392/5/22 18:19:37.0 |

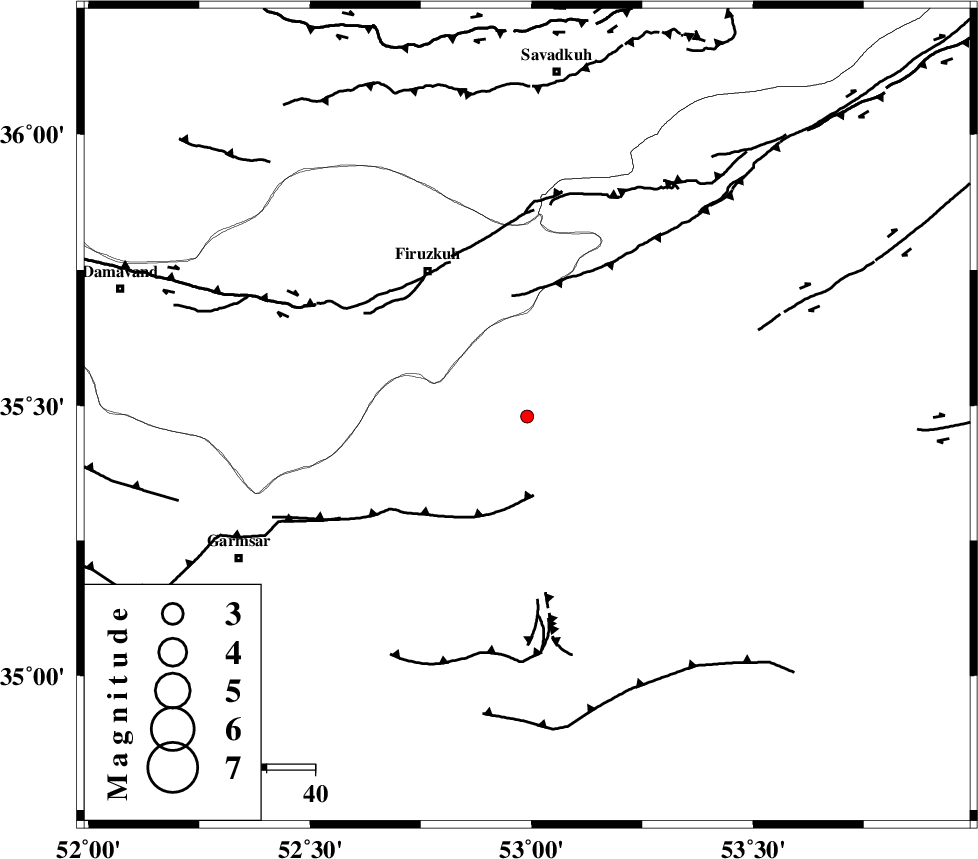

| Location | Lat:35.48 Lon: 52.99 |
| Region | Semnan Province, 36 km South-East of Firuzkuh |
Nearest Cities |
|
| 12 km North of Lasjerd, Semnan Province | |
| 17 km South West of Aftar, Semnan Province | |
| 20 km North West of Sorkheh, Semnan Province | |
| 36 km East of Atashan, Tehran Province | |
| 36 km South East of Firuzkuh, Tehran Province | |
| Depth | 21 km |
| Agency | |
Faults within 150 km: |
|
| ATARI_F (Length: 185 km) , Distance to epicenter: 25 km | |
| KUH_E_GACHAB_F2 (Length: 31 km) , Distance to epicenter: 28 km | |
| KUH_E_GACHAB_F1 (Length: 53 km) , Distance to epicenter: 35 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 6.4 km |
| Error in Depth | 5.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90213 | IIEES | DAMV | E | 28.7 | 0.48 | 2013-08-13 13:50:08 | 2013-08-13 11:35:00 | n |
| 90214 | IIEES | GHVR | N | 13.5 | 0.44 | 2013-08-13 13:50:35 | 2013-08-13 11:35:00 | n |
| 90215 | IIEES | GHVR | E | 15.8 | 0.36 | 2013-08-13 13:50:39 | 2013-08-13 11:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2013-08-13 13:49:52 | -0.01 | y | 93.9 | 280 | |||
| IIEES | CHTH | Z | Pn | E | 2013-08-13 13:50:06 | 0 | y | 175 | 286 | |||
| IIEES | CHTH | E | Sg | E | 2013-08-13 13:50:26 | 0.01 | y | 175 | 286 | |||
| IIEES | GHVR | N | Pn | E | 2013-08-13 13:50:08 | 0.01 | y | 194 | 236 | |||
