Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2013-08-16 15:42:50.6 |
| Date & Time (Local) | 1392/5/25 20:12:50.6 |

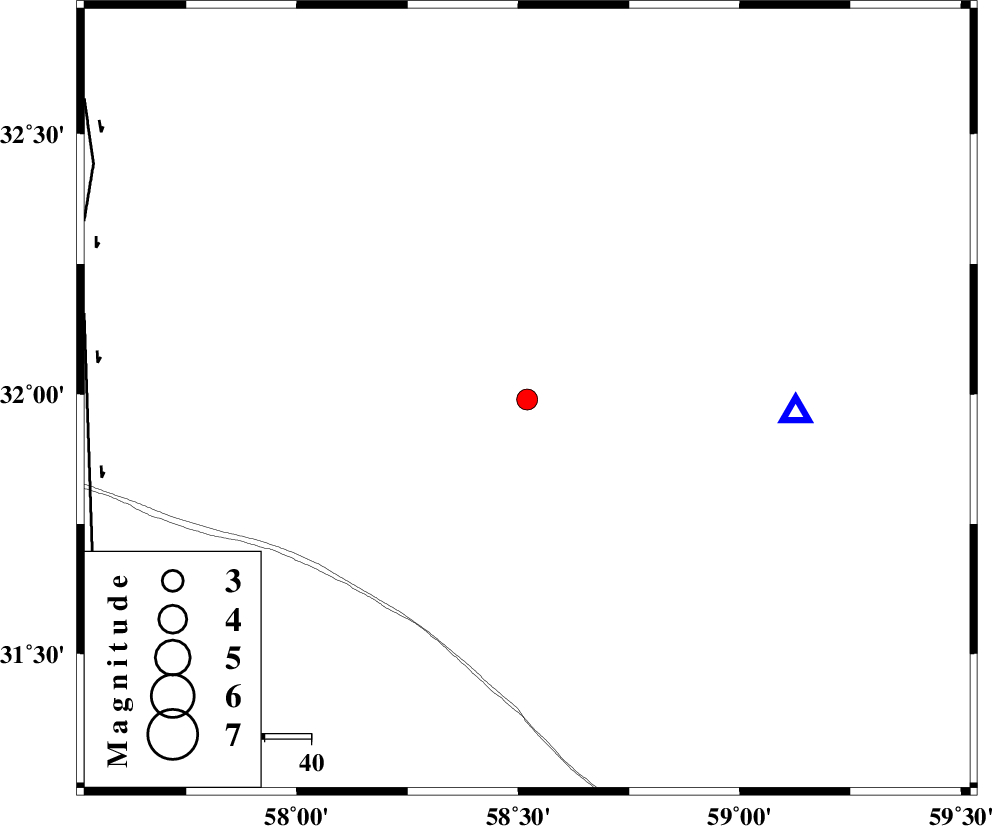

| Location | Lat:31.99 Lon: 58.52 |
| Region | Khorasan(south) Province, 121 km South-West of Birjand |
Nearest Cities |
|
| 62 km South West of Hamand, Khorasan(south) Province | |
| 82 km South West of Mazhan, Khorasan(south) Province | |
| 87 km South West of Bisheh bala, Khorasan(south) Province | |
| 93 km South West of Khusef, Khorasan(south) Province | |
| 97 km South West of Mokhtaran, Khorasan(south) Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 98 km | |
| MOHAMMADABAD_F (Length: 71 km) , Distance to epicenter: 126 km | |
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 137 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 3 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90236 | IIEES | YZKH | N | 25.4 | 0.44 | 2013-08-16 15:44:39 | 2013-08-16 05:15:00 | n |
| 90237 | IIEES | YZKH | E | 40.7 | 0.48 | 2013-08-16 15:44:41 | 2013-08-16 05:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pg | E | 2013-08-16 15:43:00 | -0.03 | y | 57.7 | 93 | |||
| IIEES | TABS | Z | Pn | E | 2013-08-16 15:43:26 | 0.12 | y | 225 | 325 | |||
| IIEES | TABS | N | Sg | E | 2013-08-16 15:43:54 | -0.07 | y | 225 | 325 | |||
| IIEES | KRBR | Z | Pn | E | 2013-08-16 15:43:33 | -0.03 | y | 279 | 217 | |||
