Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2013-08-24 04:16:34.5 |
| Date & Time (Local) | 1392/6/2 08:46:34.5 |

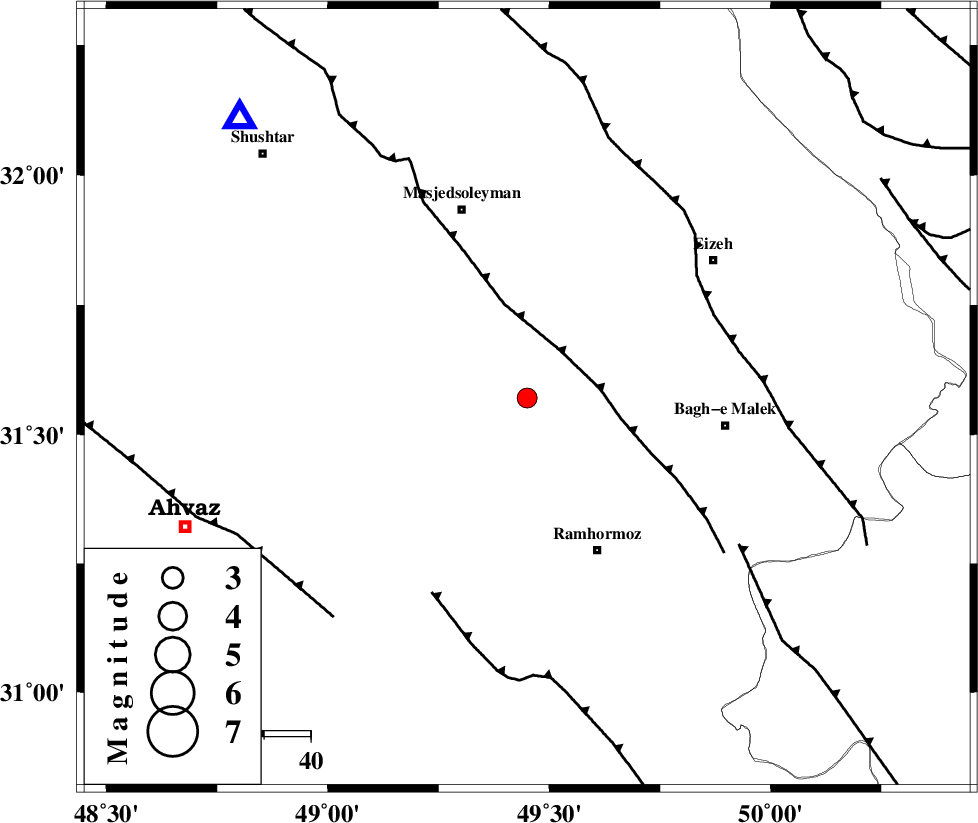

| Location | Lat:31.57 Lon: 49.45 |
| Region | Khoozestan Province, 36 km North-West of Ramhormoz |
Nearest Cities |
|
| 7 km North of Gazin, Khoozestan Province | |
| 9 km North of Jaru, Khoozestan Province | |
| 16 km North of Haftgol, Khoozestan Province | |
| 28 km North West of Midavood-e sofla, Khoozestan Province | |
| 34 km North of Marbacheh, Khoozestan Province | |
| Depth | 37 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 12 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 44 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 46 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 4.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90317 | IIEES | KHMZ | E | 78.2 | 0.55 | 2013-08-24 04:17:45 | 2013-08-24 06:05:00 | n |
| 90318 | IIEES | KHMZ | N | 40.6 | 0.58 | 2013-08-24 04:17:50 | 2013-08-24 06:05:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2013-08-24 04:16:49 | 0.03 | y | 85.6 | 314 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-08-24 04:17:10 | -0.09 | y | 245 | 11 | |||
| IIEES | KHMZ | N | Sg | E | 2013-08-24 04:17:42 | -0.03 | y | 245 | 11 | |||
| IIEES | ASAO | Z | Pn | E | 2013-08-24 04:17:21 | -0.08 | y | 334 | 9 | |||
| IIEES | GHVR | Z | Pn | E | 2013-08-24 04:17:25 | 0.24 | y | 364 | 27 | |||
| IIEES | GHIR | Z | Pn | E | 2013-08-24 04:17:42 | -0.06 | y | 499 | 136 | |||
