Event Specification
Magnitude |
4.1 |
| Date & Time (UTC) | 2013-08-24 22:41:27.9 |
| Date & Time (Local) | 1392/6/3 03:11:27.9 |

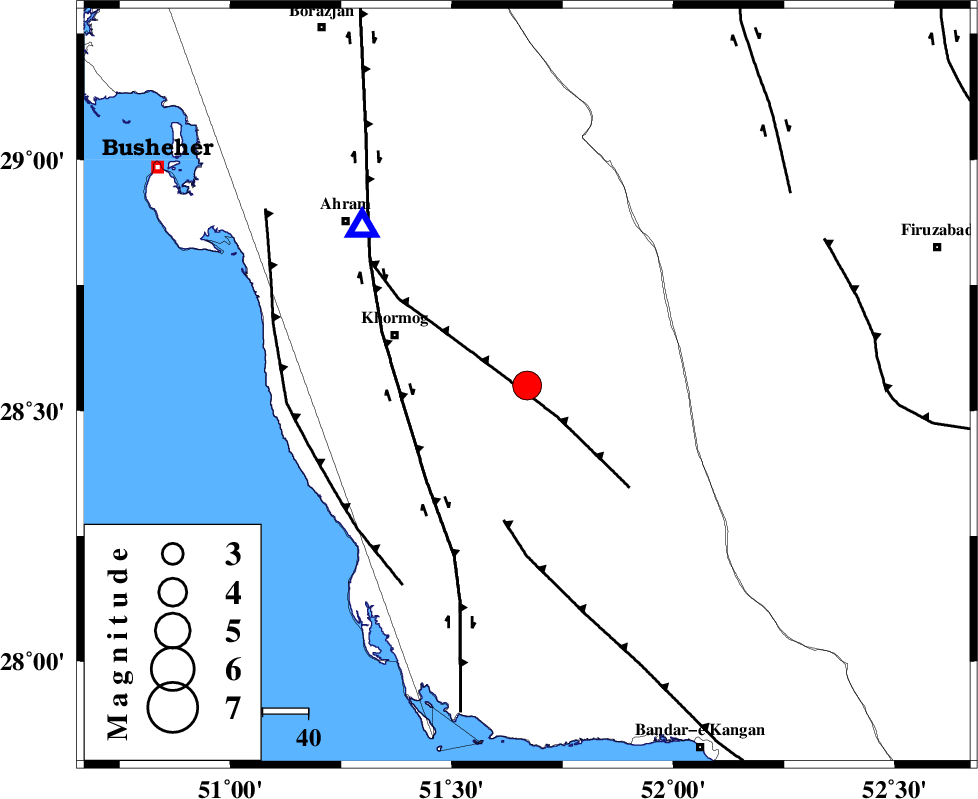

| Location | Lat:28.55 Lon: 51.67 |
| Region | Bushehr Province, 32 km South-East of Khormog |
Nearest Cities |
|
| 20 km North of Shanbeh, Bushehr Province | |
| 24 km North East of Baduleh, Bushehr Province | |
| 28 km North East of Kaki, Bushehr Province | |
| 30 km East of Buheyri, Bushehr Province | |
| 31 km South East of Khormog, Bushehr Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF5 (Length: 74 km) , Distance to epicenter: 9 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 28 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 30 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >8.6 km |
| Error in Longitude | 4.8 km |
| Error in Depth | 4.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90339 | IIEES | AHRM | N | 7406.5 | 0.48 | 2013-08-24 22:41:51 | 2013-08-25 12:20:00 | n |
| 90340 | IIEES | GHIR | E | 5521.2 | 0.6 | 2013-08-24 22:42:09 | 2013-08-25 12:20:00 | n |
| 90341 | IIEES | GHIR | N | 4377.7 | 0.4 | 2013-08-24 22:42:10 | 2013-08-25 12:20:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-08-24 22:41:37 | -0.08 | y | 50.9 | 314 | |||
| IIEES | GHIR | Z | Pg | E | 2013-08-24 22:41:50 | 0.06 | y | 132 | 102 | |||
| IIEES | GHIR | N | Sg | E | 2013-08-24 22:42:06 | -0.14 | y | 132 | 102 | |||
| IIEES | BNDS | Z | Pn | E | 2013-08-24 22:42:33 | 0.07 | y | 461 | 105 | |||
| IIEES | KRBR | Z | Pn | E | 2013-08-24 22:42:40 | 0.16 | y | 520 | 71 | |||
