Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2013-08-28 22:33:22.7 |
| Date & Time (Local) | 1392/6/7 03:03:22.7 |

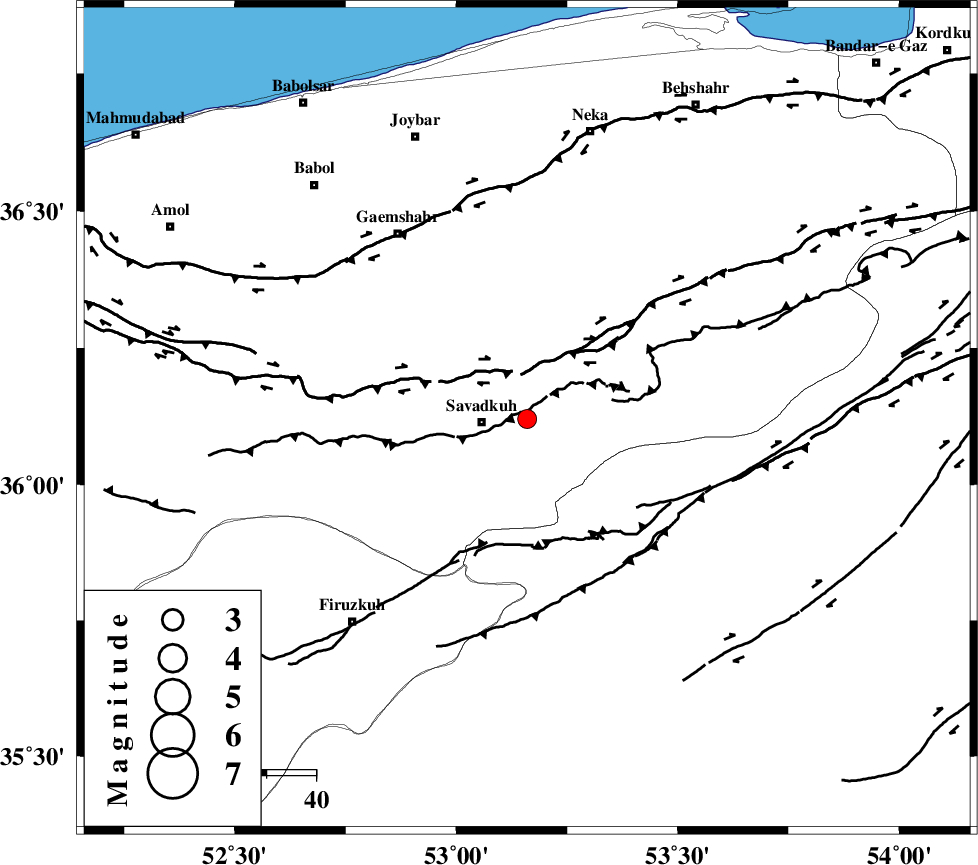

| Location | Lat:36.12 Lon: 53.16 |
| Region | Mazandaran Province, 9 km East of Pol-E-Sefid |
Nearest Cities |
|
| 8 km North of Sangdeh, Mazandaran Province | |
| 9 km North East of Pol-E-Sefid, Mazandaran Province | |
| 10 km North East of Shurmast-e peyrudbar, Mazandaran Province | |
| 17 km North East of Elahband, Mazandaran Province | |
| 18 km South East of Utu, Mazandaran Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 10 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 43 km | |
| ATARI_F (Length: 185 km) , Distance to epicenter: 48 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >3.7 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 4.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90401 | IIEES | DAMV | E | 176.1 | 0.32 | 2013-08-28 22:34:01 | 2013-08-29 05:28:00 | n |
| 90402 | IIEES | THKV | N | 70 | 0.56 | 2013-08-28 22:34:29 | 2013-08-29 05:28:00 | n |
| 90403 | IIEES | THKV | E | 71.7 | 0.64 | 2013-08-28 22:34:29 | 2013-08-29 05:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2013-08-28 22:33:42 | -0.23 | y | 121 | 243 | |||
| IIEES | DAMV | E | Sg | E | 2013-08-28 22:33:58 | 0.01 | y | 121 | 243 | |||
| IIEES | CHTH | Z | Pn | E | 2013-08-28 22:33:53 | 0.11 | y | 185 | 263 | |||
| IIEES | GHVR | Z | Pn | E | 2013-08-28 22:34:01 | -0.07 | y | 252 | 224 | |||
| IIEES | GHVR | N | Sg | E | 2013-08-28 22:34:33 | 0.08 | y | 252 | 224 | |||
| IIEES | MRVT | Z | Pn | E | 2013-08-28 22:34:09 | 0.01 | y | 312 | 56 | |||
| IIEES | ASAO | Z | Pn | E | 2013-08-28 22:34:12 | 0.1 | y | 334 | 239 | |||
