Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2013-09-06 02:03:07.3 |
| Date & Time (Local) | 1392/6/15 06:33:07.3 |

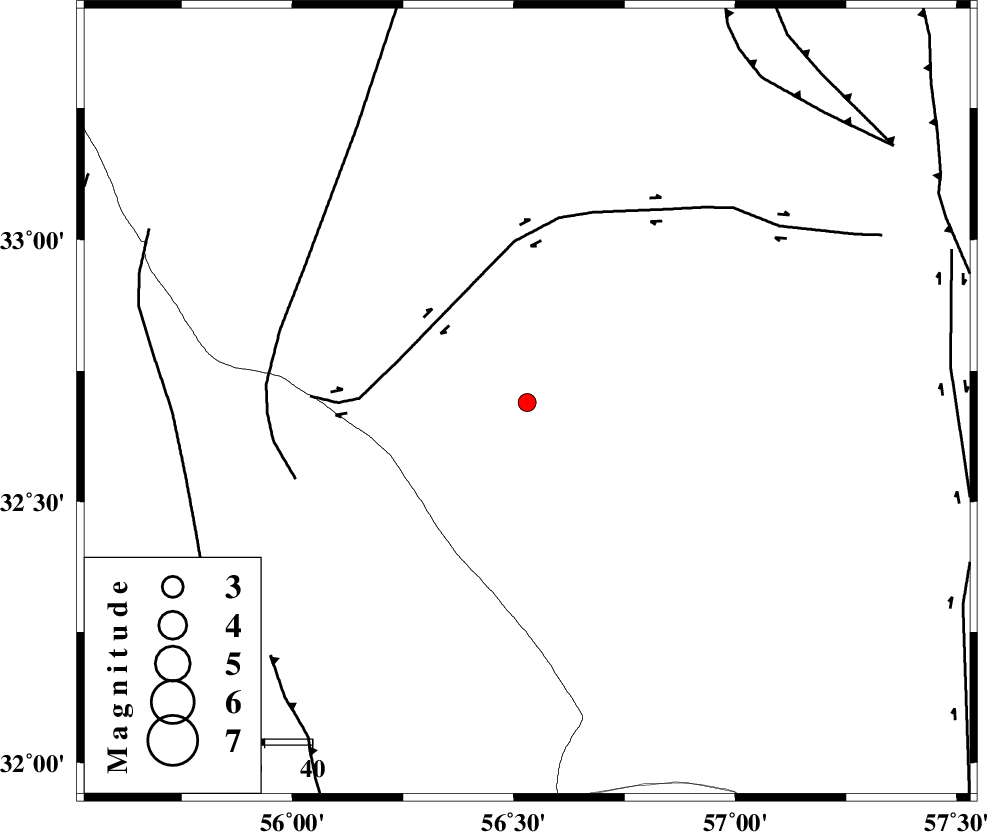

| Location | Lat:32.69 Lon: 56.53 |
| Region | Yazd Province, 108 km South-West of Tabas |
Nearest Cities |
|
| 92 km South West of Kerit, Yazd Province | |
| 98 km South East of Robat-e posht-e badam, Yazd Province | |
| 102 km South West of Oshtoqran, Yazd Province | |
| 103 km North East of Behabad, Yazd Province | |
| 105 km North West of Hoz-e qorban, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| CHESHMEH_ROSTAM_ (Length: 142 km) , Distance to epicenter: 29 km | |
| NAINI_F (Length: 342 km) , Distance to epicenter: 52 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 74 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 5.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90476 | IIEES | YZKH | N | 44.1 | 0.32 | 2013-09-06 02:04:02 | 2013-09-06 03:27:00 | n |
| 90477 | IIEES | YZKH | E | 85.9 | 0.56 | 2013-09-06 02:04:02 | 2013-09-06 03:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2013-09-06 02:03:27 | -0.11 | y | 120 | 27 | |||
| IIEES | YZKH | Z | Pg | E | 2013-09-06 02:03:38 | 0.12 | y | 185 | 260 | |||
| IIEES | YZKH | N | Sg | E | 2013-09-06 02:04:00 | -0.06 | y | 185 | 260 | |||
| IIEES | BSRN | Z | Pn | E | 2013-09-06 02:03:47 | 0.11 | y | 257 | 108 | |||
| IIEES | KRBR | N | Sg | E | 2013-09-06 02:04:32 | -0.08 | y | 301 | 176 | |||
