Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2013-09-08 16:12:46.0 |
| Date & Time (Local) | 1392/6/17 20:42:46.0 |

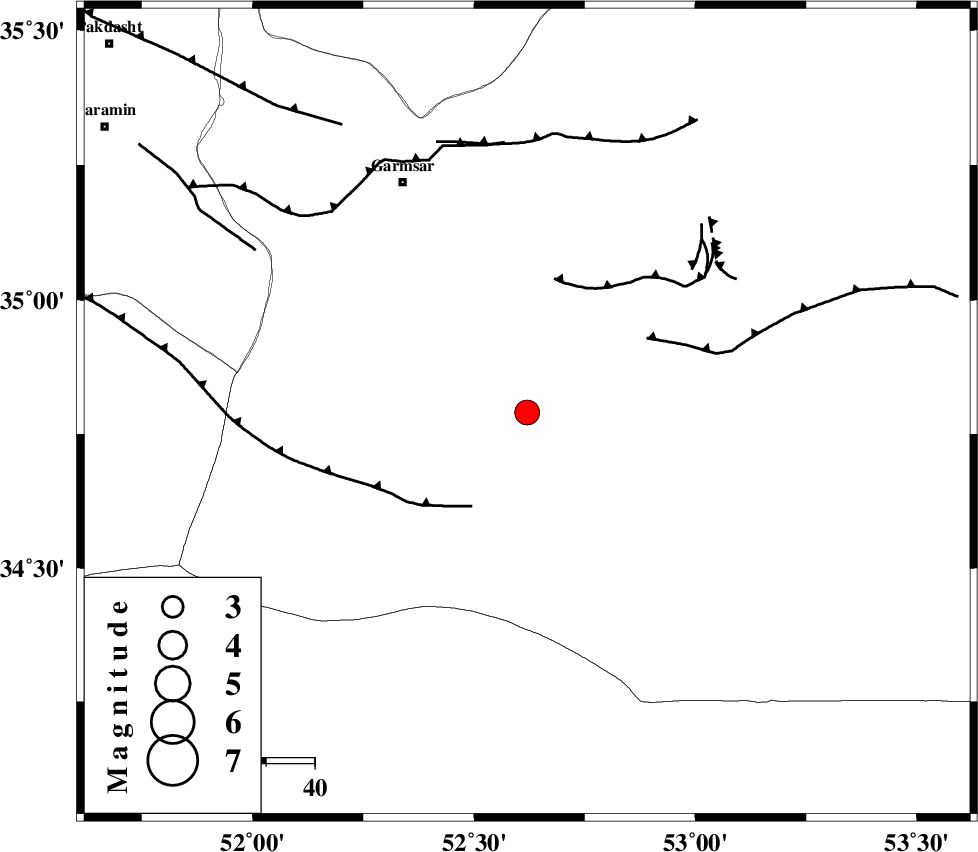

| Location | Lat:34.79 Lon: 52.62 |
| Region | Semnan Province, 54 km South-East of Garmsar |
Nearest Cities |
|
| 46 km South East of Gardovan, Semnan Province | |
| 49 km South of Kohanabad, Semnan Province | |
| 49 km South East of Davarabad, Semnan Province | |
| 51 km South of Aradan, Semnan Province | |
| 52 km South East of Lajran, Semnan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SIAHKUH_F (Length: 154 km) , Distance to epicenter: 21 km | |
| KUH_E_GACHAB_F1 (Length: 53 km) , Distance to epicenter: 29 km | |
| KUH_E_GUGERD_F (Length: 73 km) , Distance to epicenter: 29 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 5.9 km |
| Error in Depth | 6.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90492 | IIEES | YZKH | E | 123.4 | 0.36 | 2013-09-08 16:14:22 | 2013-09-08 05:41:00 | n |
| 90493 | IIEES | YZKH | N | 107.9 | 0.6 | 2013-09-08 16:14:30 | 2013-09-08 05:41:00 | n |
| 90494 | IIEES | KRBR | N | 21.6 | 0.52 | 2013-09-08 16:16:07 | 2013-09-08 05:41:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2013-09-08 16:13:04 | 0.01 | y | 110 | 328 | |||
| IIEES | GHVR | Z | Pg | E | 2013-09-08 16:13:07 | -0.14 | y | 130 | 255 | |||
| IIEES | CHTH | Z | Pg | E | 2013-09-08 16:13:16 | -0.11 | y | 184 | 313 | |||
| IIEES | CHTH | E | Sg | E | 2013-09-08 16:13:38 | 0.07 | y | 184 | 313 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-09-08 16:13:27 | 0.18 | y | 271 | 245 | |||
