Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2013-09-09 00:06:45.3 |
| Date & Time (Local) | 1392/6/18 04:36:45.3 |
| Location | Lat:31.44 Lon: 56.21 |
| Region | Kerman Province, 61 km North-West of Ravar |
Nearest Cities |
|
| 8 km North of Kuhbanan, Kerman Province | |
| 11 km North of Jor, Kerman Province | |
| 22 km East of Basab, Yazd Province | |
| 26 km South of Asfih, Yazd Province | |
| 35 km South East of Benestan, Yazd Province | |
| Depth | 15 km |
| Agency | |

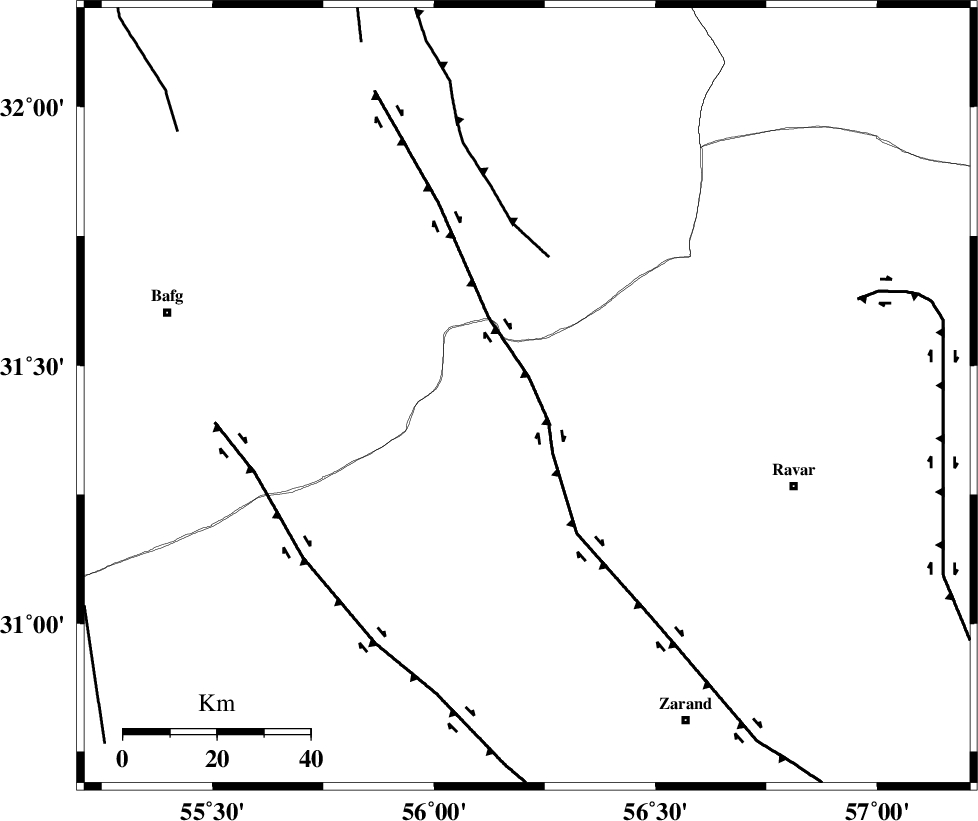

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 4 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 30 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 59 km | |
| Number of Phases | 3 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90496 | IIEES | KRBR | N | 110.7 | 0.28 | 2013-09-09 00:07:40 | 2013-09-09 03:14:00 | n |
| 90497 | IIEES | KRBR | E | 109.8 | 0.32 | 2013-09-09 00:07:41 | 2013-09-09 03:14:00 | n |
| 90498 | IIEES | YZKH | N | 100 | 0.4 | 2013-09-09 00:07:40 | 2013-09-09 03:14:00 | n |
| 90499 | IIEES | YZKH | E | 118.9 | 0.36 | 2013-09-09 00:07:41 | 2013-09-09 03:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2013-09-09 00:07:13 | 0 | y | 170 | 162 | |||
| IIEES | YZKH | Z | Pg | E | 2013-09-09 00:07:15 | 0 | y | 185 | 305 | |||
| IIEES | TABS | Z | Pn | E | 2013-09-09 00:07:25 | 0 | y | 259 | 19 | |||
