Event Specification
Magnitude |
2.3 |
| Date & Time (UTC) | 2013-09-09 22:40:46.0 |
| Date & Time (Local) | 1392/6/19 03:10:46.0 |

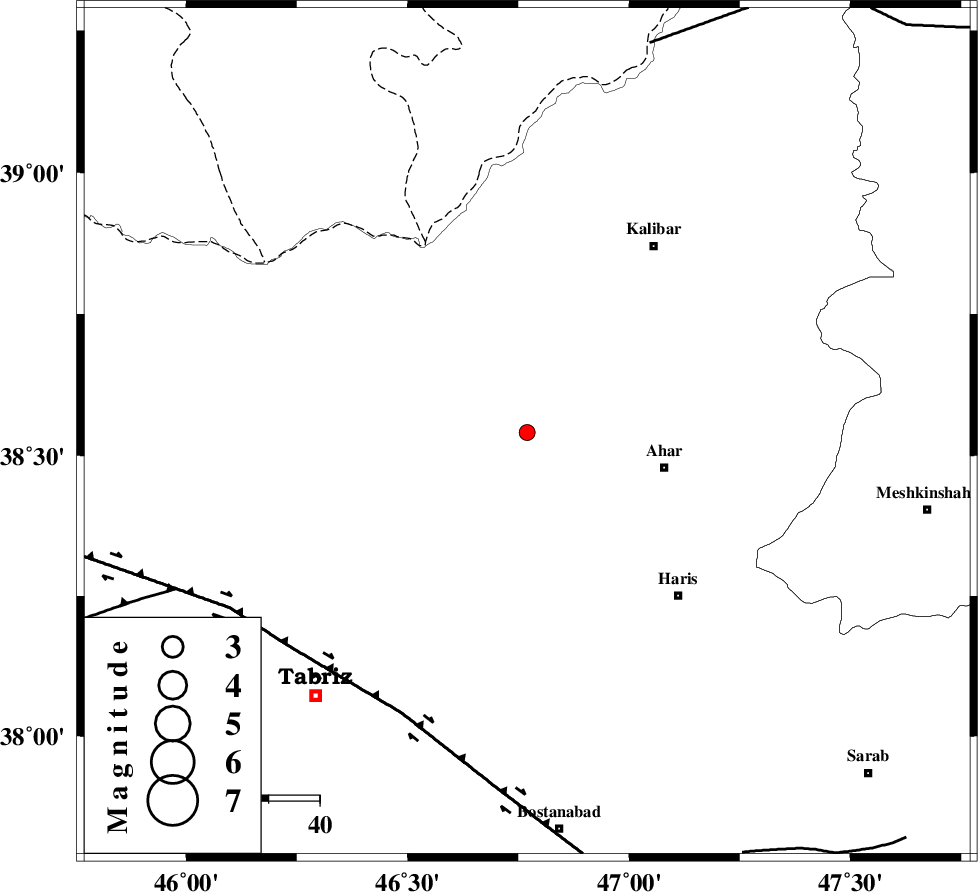

| Location | Lat:38.54 Lon: 46.77 |
| Region | Azarbaijan Sharghi Province, 27 km West of Ahar |
Nearest Cities |
|
| 6 km of Tokhmdel, Azarbaijan Sharghi Province | |
| 10 km of Bekrabad, Azarbaijan Sharghi Province | |
| 14 km North East of Varzagan, Azarbaijan Sharghi Province | |
| 16 km West of Azghan, Azarbaijan Sharghi Province | |
| 17 km East of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 61 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 76 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 80 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >4.6 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 11.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90502 | IIEES | GRMI | E | 110.2 | 0.32 | 2013-09-09 22:41:17 | 2013-09-10 01:36:00 | n |
| 90503 | IIEES | GRMI | N | 83.9 | 0.16 | 2013-09-09 22:41:18 | 2013-09-10 01:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-09-09 22:41:03 | -0.06 | y | 102 | 72 | |||
| IIEES | GRMI | N | Sg | E | 2013-09-09 22:41:16 | 0.04 | y | 102 | 72 | |||
| IIEES | MAKU | Z | Pn | E | 2013-09-09 22:41:19 | 0.01 | y | 203 | 297 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-09-09 22:41:27 | 0.01 | y | 267 | 140 | |||
