Event Specification
Magnitude |
1.6 |
| Date & Time (UTC) | 2013-09-11 10:15:43.2 |
| Date & Time (Local) | 1392/6/20 14:45:43.2 |

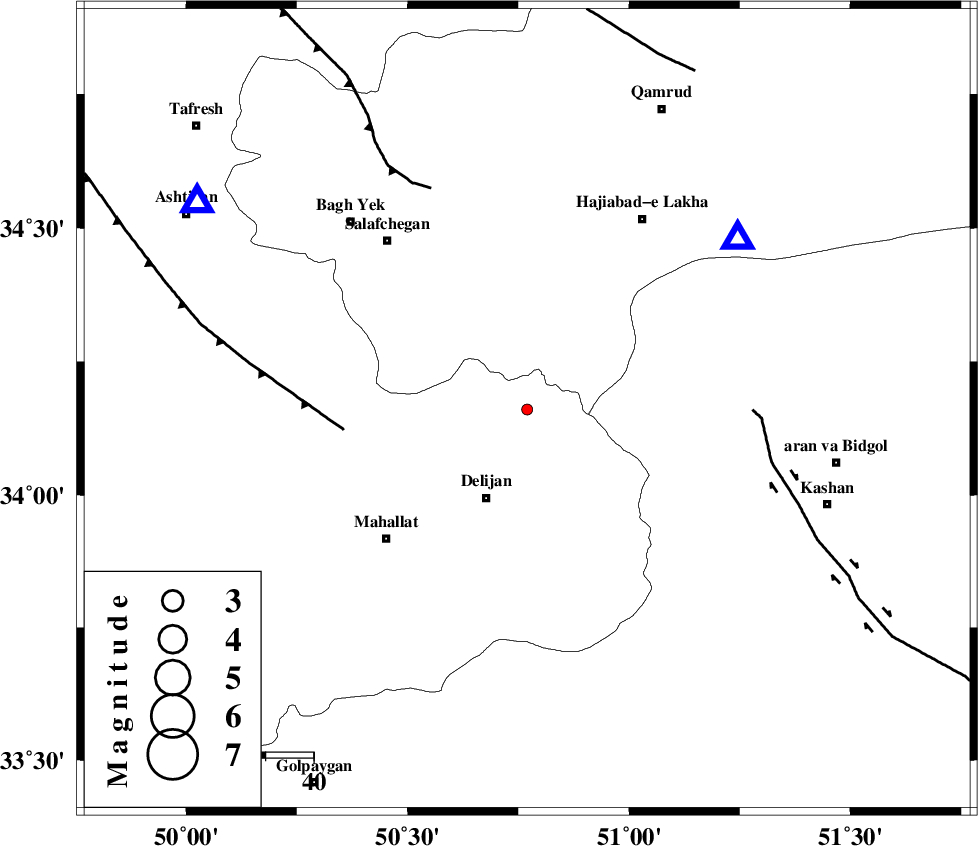

| Location | Lat:34.16 Lon: 50.77 |
| Region | Markazi Province, 20 km North of Delijan |
Nearest Cities |
|
| 6 km North of Vasqonqan, Markazi Province | |
| 18 km North of Naraq, Markazi Province | |
| 18 km North East of Dudhak, Markazi Province | |
| 20 km North West of Joshaq, Markazi Province | |
| 20 km North of Delijan, Markazi Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| TAFRESH_F (Length: 117 km) , Distance to epicenter: 38 km | |
| KASHAN_F (Length: 44 km) , Distance to epicenter: 47 km | |
| INDES_F (Length: 98 km) , Distance to epicenter: 50 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >3 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 4.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90522 | IIEES | GHVR | E | 47.4 | 0.22 | 2013-09-11 10:16:03 | 2013-09-12 03:31:00 | n |
| 90523 | IIEES | KHMZ | E | 23.3 | 0.28 | 2013-09-11 10:16:10 | 2013-09-12 03:31:00 | n |
| 90524 | IIEES | KHMZ | N | 24.3 | 0.28 | 2013-09-11 10:16:10 | 2013-09-12 03:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GHVR | Z | Pg | E | 2013-09-11 10:15:53 | -0.05 | y | 56.7 | 51 | |||
| IIEES | ASAO | Z | Pg | E | 2013-09-11 10:15:57 | 0.02 | y | 80.8 | 303 | |||
| IIEES | KHMZ | Z | Pg | E | 2013-09-11 10:15:58 | 0.19 | y | 87.5 | 238 | |||
| IIEES | KHMZ | N | Sg | E | 2013-09-11 10:16:09 | -0.15 | y | 87.5 | 238 | |||
| IIEES | CHTH | Z | Pn | E | 2013-09-11 10:16:15 | -0.01 | y | 197 | 9 | |||
