Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2013-09-16 16:08:19.0 |
| Date & Time (Local) | 1392/6/25 20:38:19.0 |

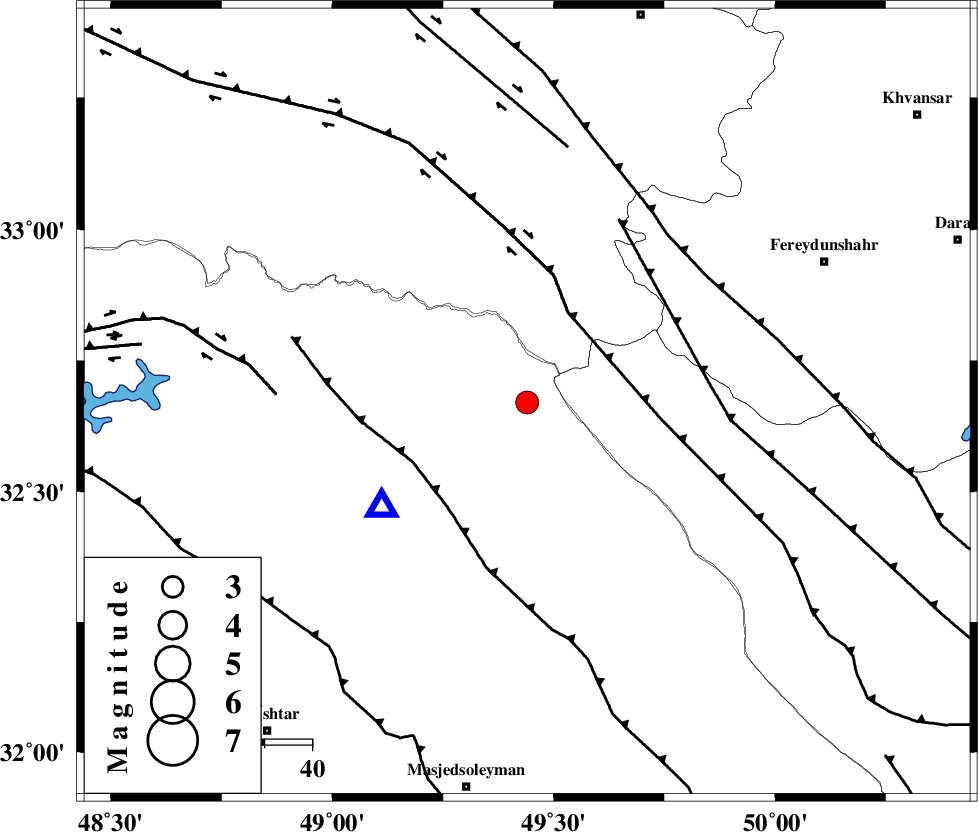

| Location | Lat:32.67 Lon: 49.44 |
| Region | Khoozestan Province, 44 km North-East of Lali |
Nearest Cities |
|
| 26 km South of Parchal, Lorestan Province | |
| 40 km West of Durak, Chaharmahal Bakhtiari Province | |
| 44 km South West of Masir, Esfahan Province | |
| 44 km North West of Paabshalal, Khoozestan Province | |
| 44 km North East of Lali, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 21 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 21 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 27 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >5.7 km |
| Error in Longitude | 8.1 km |
| Error in Depth | 4.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90559 | IIEES | KHMZ | N | 538.5 | 0.44 | 2013-09-16 16:09:02 | 2013-09-16 05:48:00 | n |
| 90560 | IIEES | KHMZ | E | 711.8 | 0.48 | 2013-09-16 16:09:03 | 2013-09-16 05:48:00 | n |
| 90561 | IIEES | GHVR | N | 115.4 | 0.48 | 2013-09-16 16:09:34 | 2013-09-16 05:48:00 | n |
| 90562 | IIEES | GHVR | E | 275.5 | 0.44 | 2013-09-16 16:09:35 | 2013-09-16 05:48:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2013-09-16 16:08:33 | 0.02 | y | 86.4 | 224 | |||
| IIEES | KHMZ | Z | Pg | E | 2013-09-16 16:08:40 | -0.2 | y | 129 | 22 | |||
| IIEES | ASAO | Z | Pn | E | 2013-09-16 16:08:53 | 0.16 | y | 216 | 14 | |||
| IIEES | GHVR | Z | Pn | E | 2013-09-16 16:08:59 | -0.07 | y | 262 | 39 | |||
| IIEES | GHVR | N | Sg | E | 2013-09-16 16:09:32 | 0.09 | y | 262 | 39 | |||
