Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2013-09-20 05:11:59.5 |
| Date & Time (Local) | 1392/6/29 09:41:59.5 |

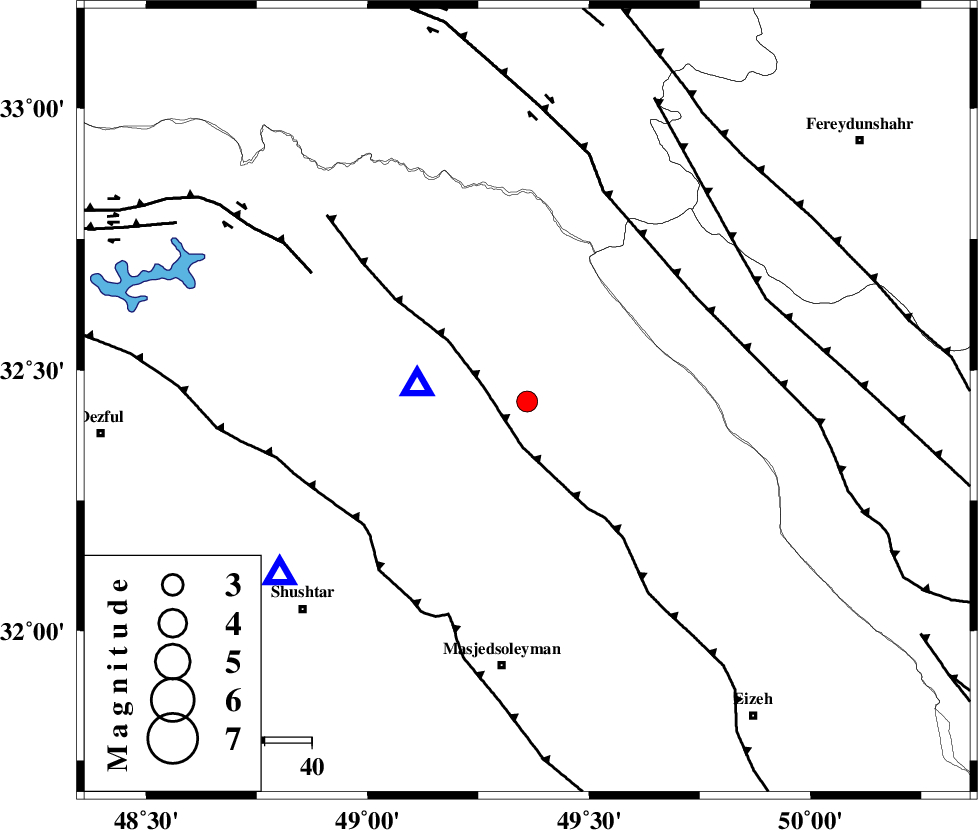

| Location | Lat:32.44 Lon: 49.36 |
| Region | Khoozestan Province, 24 km East of Lali |
Nearest Cities |
|
| 24 km North East of Lali, Khoozestan Province | |
| 25 km North West of Paabshalal, Khoozestan Province | |
| 27 km North of Qale-yekhvaju, Khoozestan Province | |
| 29 km North East of Jaefarabad, Khoozestan Province | |
| 44 km North East of Haft shahidan, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 10 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 42 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 43 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >6.7 km |
| Error in Longitude | 7.5 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90579 | IIEES | SHGR | E | 657.9 | 0.4 | 2013-09-20 05:12:24 | 2013-09-20 06:38:00 | n |
| 90580 | IIEES | SHGR | N | 661.1 | 0.24 | 2013-09-20 05:12:26 | 2013-09-20 06:38:00 | n |
| 90581 | IIEES | GHVR | E | 55.3 | 0.48 | 2013-09-20 05:13:25 | 2013-09-20 06:38:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2013-09-20 05:12:10 | -0.04 | y | 63.9 | 236 | |||
| IIEES | ASAO | Z | Pn | E | 2013-09-20 05:12:38 | 0.43 | y | 242 | 15 | |||
| IIEES | GHVR | Z | Pn | E | 2013-09-20 05:12:42 | -0.1 | y | 287 | 37 | |||
| IIEES | GHVR | N | Sg | E | 2013-09-20 05:13:20 | -0.14 | y | 287 | 37 | |||
| IIEES | SNGE | Z | Pn | E | 2013-09-20 05:12:50 | -0.19 | y | 349 | 328 | |||
