Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2013-09-21 07:53:47.1 |
| Date & Time (Local) | 1392/6/30 12:23:47.1 |

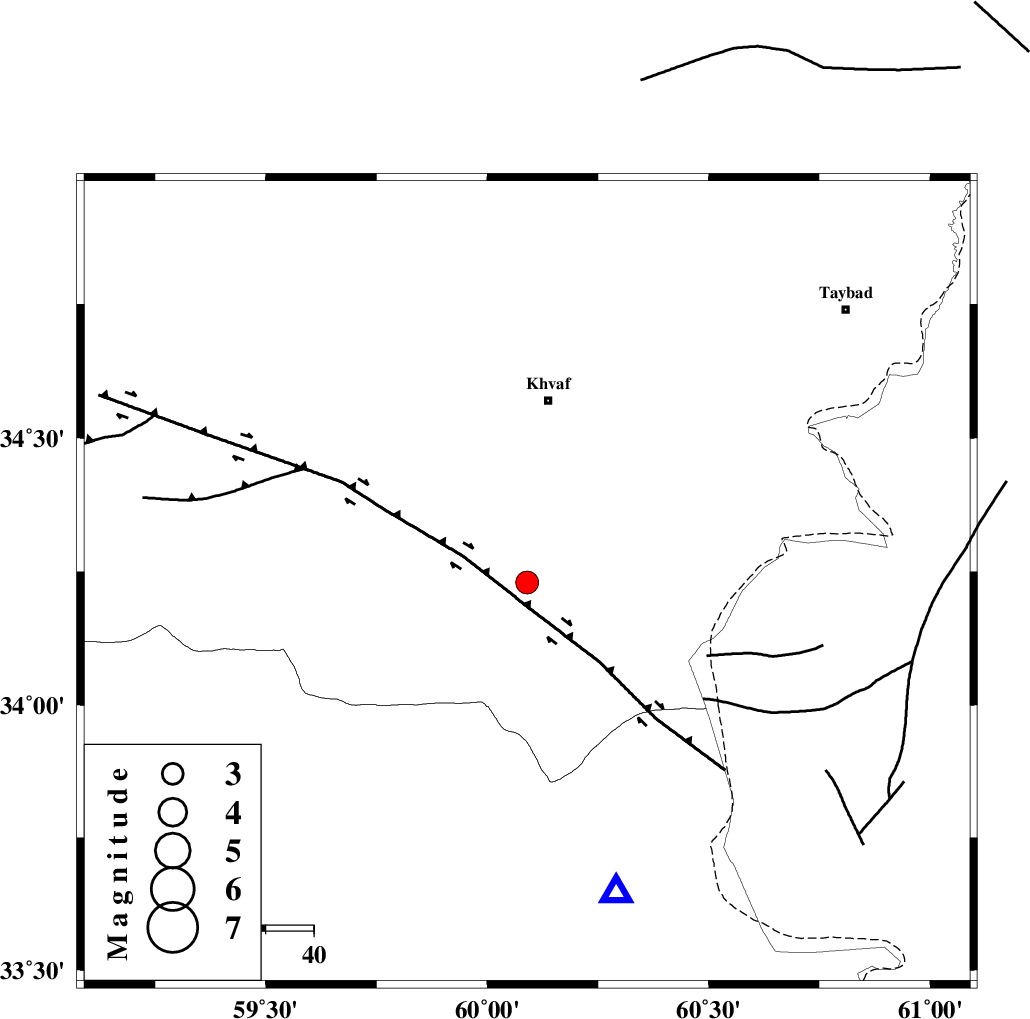

| Location | Lat:34.23 Lon: 60.09 |
| Region | Khorasan(center) Province, 38 km South of Khaf |
Nearest Cities |
|
| 7 km North of Pasgah-e chazul, Khorasan(center) Province | |
| 9 km of Biasabad, Khorasan(center) Province | |
| 14 km North West of Niyazabad, Khorasan(center) Province | |
| 21 km East of Ebrahimi, Khorasan(center) Province | |
| 24 km South East of Zuzan, Khorasan(center) Province | |
| Depth | 28 km |
| Agency | |
Faults within 150 km: |
|
| DASHT_E_BAYAZ_F (Length: 177 km) , Distance to epicenter: 20 km | |
| ABRIZ_F (Length: 114 km) , Distance to epicenter: 31 km | |
| JANGAL_F (Length: 111 km) , Distance to epicenter: 32 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >5.7 km |
| Error in Longitude | 9.8 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90597 | IIEES | SHRT | N | 1359.7 | 0.22 | 2013-09-21 07:54:08 | 2013-09-21 10:55:00 | n |
| 90598 | IIEES | SHRT | E | 1038.9 | 0.18 | 2013-09-21 07:54:09 | 2013-09-21 10:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRT | Z | Pg | E | 2013-09-21 07:53:59 | 0 | y | 67.1 | 164 | |||
| IIEES | SHRT | N | Sg | E | 2013-09-21 07:54:07 | 0 | y | 67.1 | 164 | |||
| IIEES | BSRN | Z | Pn | E | 2013-09-21 07:54:26 | 0 | y | 266 | 200 | |||
| IIEES | TABS | Z | Pn | E | 2013-09-21 07:54:28 | 0.02 | y | 282 | 258 | |||
| IIEES | YZKH | Z | Pn | E | 2013-09-21 07:55:02 | -0.02 | y | 551 | 250 | |||
