Event Specification
Magnitude |
4.3 |
| Date & Time (UTC) | 2013-09-30 23:44:40.0 |
| Date & Time (Local) | 1392/7/9 03:14:40.0 |

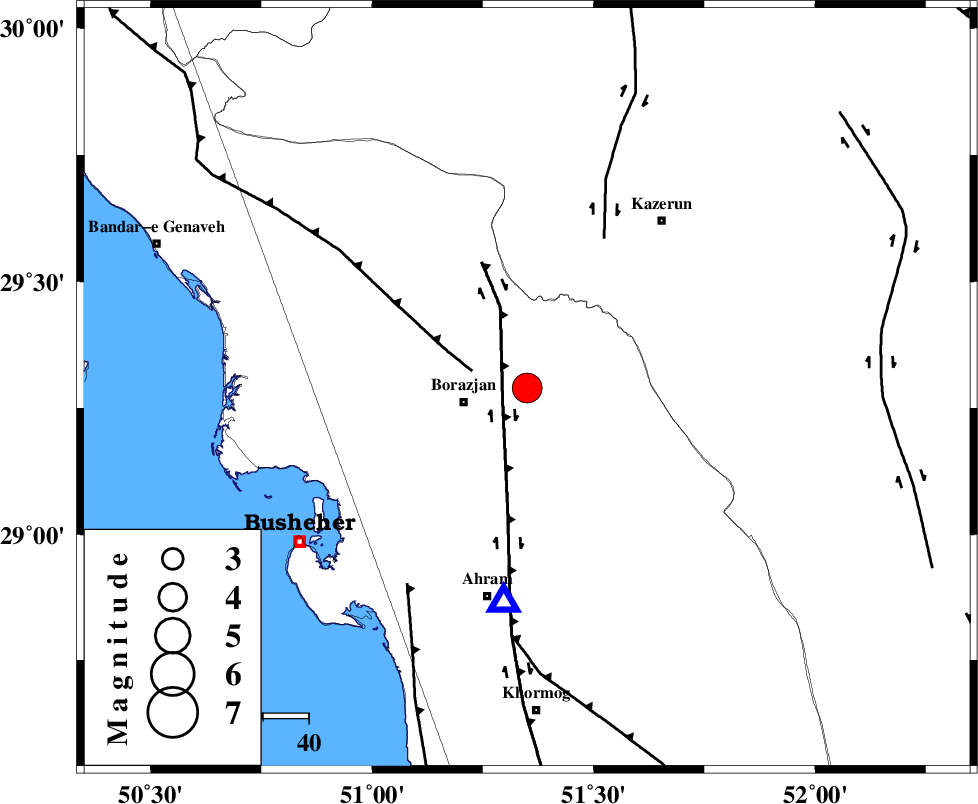

| Location | Lat:29.29 Lon: 51.35 |
| Region | Bushehr Province, 14 km East of Borazjan |
Nearest Cities |
|
| 14 km North East of Borazjan, Bushehr Province | |
| 17 km South of Dalki, Bushehr Province | |
| 18 km North East of Sarkareh, Bushehr Province | |
| 19 km East of Nazar aqa, Bushehr Province | |
| 24 km East of Saedabad, Bushehr Province | |
| Depth | 11 km |
| Agency | |
Faults within 150 km: |
|
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 6 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 13 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 37 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >4.5 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 9.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90653 | IIEES | BNDS | N | 264.6 | 0.4 | 2013-09-30 23:46:46 | 2013-10-01 02:20:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-09-30 23:44:48 | 0.22 | y | 46.8 | 186 | |||
| IIEES | AHRM | N | Sg | E | 2013-09-30 23:44:54 | -0.14 | y | 46.8 | 186 | |||
| IIEES | SHGR | Z | P | E | 2013-09-30 23:45:37 | -0.1 | y | 397 | 323 | |||
| IIEES | SHGR | N | Sn | 2013-09-30 23:46:19 | 0.12 | y | 397 | 323 | ||||
| IIEES | YZKH | Z | P | E | 2013-09-30 23:45:45 | 0.13 | y | 463 | 41 | |||
| IIEES | GHVR | Z | P | E | 2013-09-30 23:45:59 | -0.16 | y | 576 | 359 | |||
| IIEES | ASAO | Z | P | E | 2013-09-30 23:46:02 | -0.11 | y | 597 | 348 | |||
| IIEES | TABS | Z | P | E | 2013-09-30 23:46:18 | -0.08 | y | 731 | 47 | |||
