Event Specification
Magnitude |
2.1 |
| Date & Time (UTC) | 2013-10-13 00:36:35.1 |
| Date & Time (Local) | 1392/7/21 04:06:35.1 |

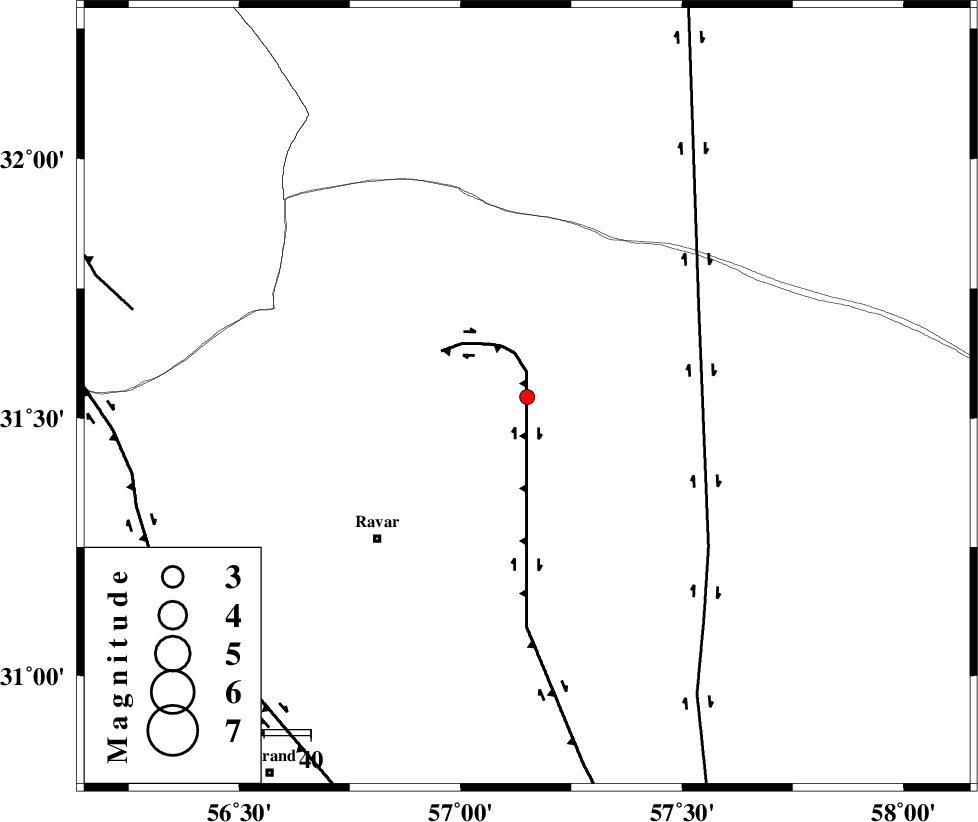

| Location | Lat:31.54 Lon: 57.15 |
| Region | Kerman Province, 44 km North-East of Ravar |
Nearest Cities |
|
| 41 km North East of Dehali, Kerman Province | |
| 44 km North East of Ravar, Kerman Province | |
| 74 km South West of Hoz-e qorban, Yazd Province | |
| 77 km North East of Ahmadi, Kerman Province | |
| 77 km North East of Dasht-e khak, Kerman Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 5 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 42 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 86 km | |
| Number of Phases | 6 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >0.8 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 2.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90767 | IIEES | KRBR | N | 40 | 0.44 | 2013-10-13 00:37:29 | 2013-10-13 04:20:00 | n |
| 90768 | IIEES | KRBR | E | 26.2 | 0.44 | 2013-10-13 00:37:34 | 2013-10-13 04:20:00 | n |
| 90769 | IIEES | TABS | N | 9.5 | 0.56 | 2013-10-13 00:37:56 | 2013-10-13 04:20:00 | n |
| 90770 | IIEES | YZKH | N | 9.4 | 0.6 | 2013-10-13 00:37:52 | 2013-10-13 04:20:00 | n |
| 90771 | IIEES | YZKH | E | 13.9 | 0.64 | 2013-10-13 00:37:52 | 2013-10-13 04:20:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2013-10-13 00:37:04 | -0.06 | y | 176 | 192 | |||
| IIEES | KRBR | E | Sg | E | 2013-10-13 00:37:25 | 0.06 | y | 176 | 192 | |||
| IIEES | BSRN | Z | Pn | E | 2013-10-13 00:37:06 | -0.03 | y | 194 | 75 | |||
| IIEES | TABS | Z | Pn | E | 2013-10-13 00:37:11 | 0.07 | y | 234 | 359 | |||
| IIEES | TABS | E | Sg | E | 2013-10-13 00:37:41 | 0 | y | 234 | 359 | |||
| IIEES | YZKH | Z | Pn | E | 2013-10-13 00:37:14 | -0.04 | y | 259 | 292 | |||
