Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2013-10-20 18:30:23.8 |
| Date & Time (Local) | 1392/7/28 22:00:23.8 |

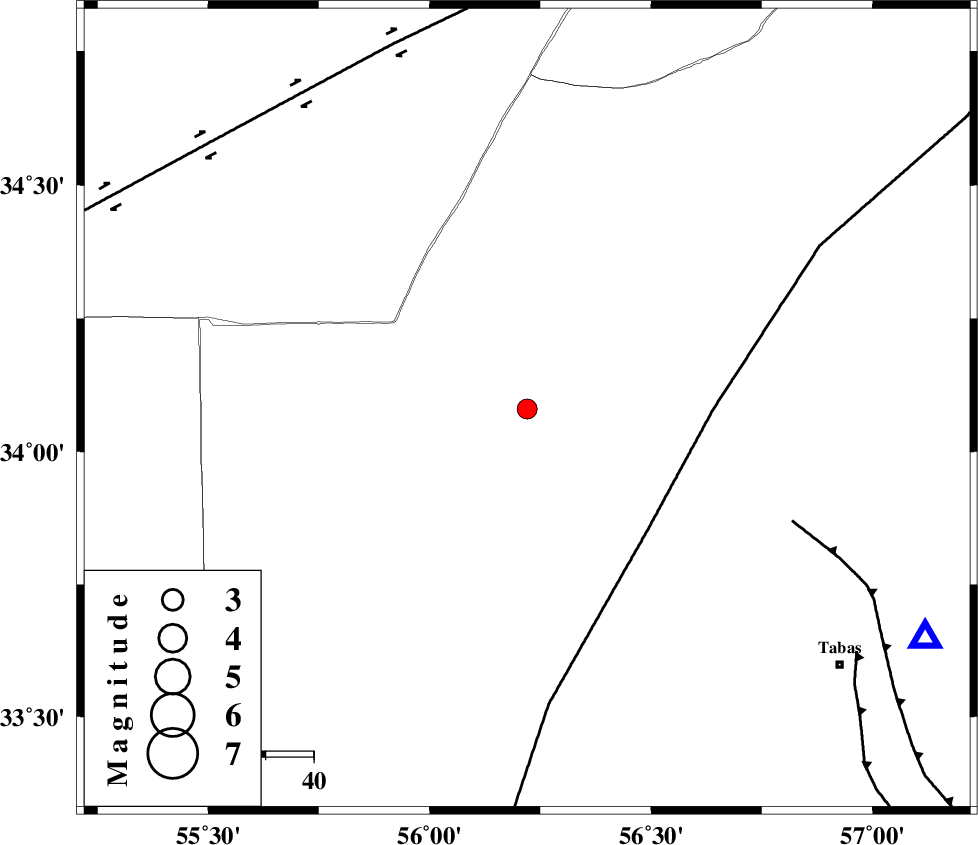

| Location | Lat:34.08 Lon: 56.22 |
| Region | Yazd Province, 84 km North-West of Tabas |
Nearest Cities |
|
| 16 km North of Halvan, Yazd Province | |
| 49 km North East of Darin, Yazd Province | |
| 66 km North West of Jokhvah, Yazd Province | |
| 72 km South West of Eshqabad, Yazd Province | |
| 84 km North West of Tabas, Yazd Province | |
| Depth | 32 km |
| Agency | |
Faults within 150 km: |
|
| NAINI_F (Length: 342 km) , Distance to epicenter: 36 km | |
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 60 km | |
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 81 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >6 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90828 | IIEES | YZKH | N | 59.6 | 0.28 | 2013-10-20 18:31:34 | 2013-10-20 10:27:00 | n |
| 90829 | IIEES | YZKH | E | 53.3 | 0.24 | 2013-10-20 18:31:36 | 2013-10-20 10:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2013-10-20 18:30:40 | 0.03 | y | 95.4 | 120 | |||
| IIEES | TABS | N | Sg | E | 2013-10-20 18:30:52 | -0.04 | y | 95.4 | 120 | |||
| IIEES | YZKH | Z | Pn | E | 2013-10-20 18:30:59 | -0.07 | y | 241 | 220 | |||
| IIEES | YZKH | E | Sg | E | 2013-10-20 18:31:30 | 0.03 | y | 241 | 220 | |||
| IIEES | BSRN | Z | Pn | E | 2013-10-20 18:31:14 | 0.06 | y | 358 | 130 | |||
