Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2013-10-30 16:49:21.7 |
| Date & Time (Local) | 1392/8/8 20:19:21.7 |

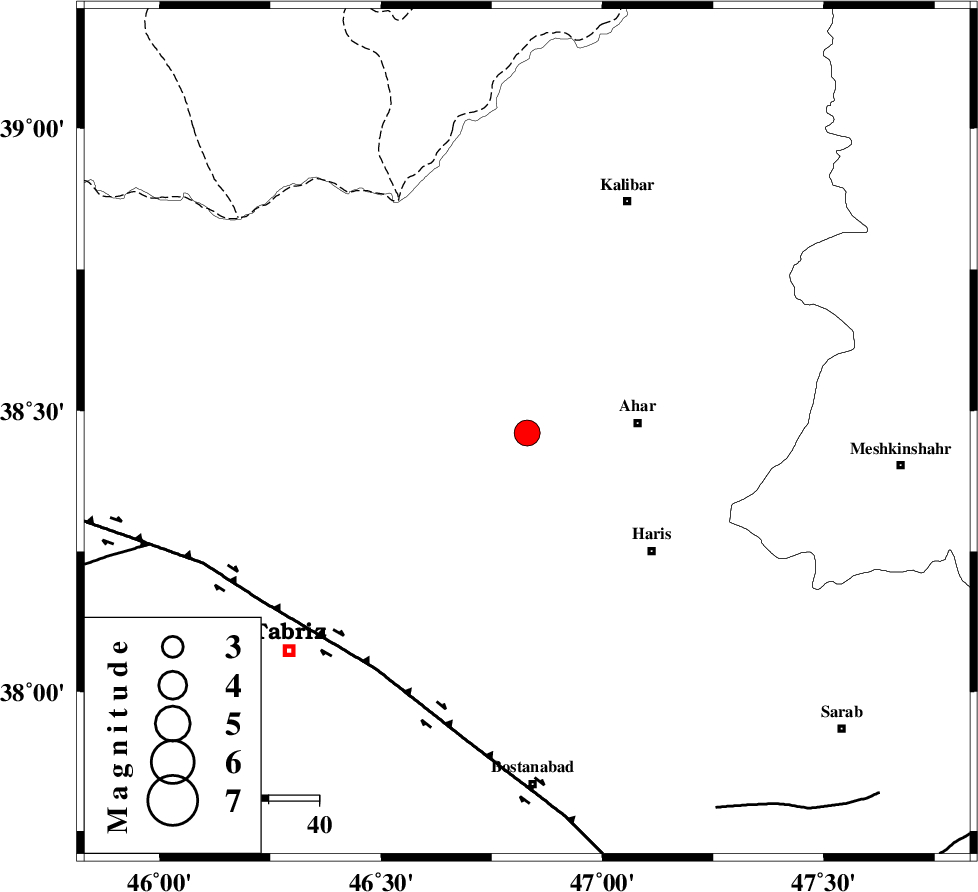

| Location | Lat:38.46 Lon: 46.83 |
| Region | Azarbaijan Sharghi Province, 22 km West of Ahar |
Nearest Cities |
|
| 13 km South of Tokhmdel, Azarbaijan Sharghi Province | |
| 17 km South West of Azghan, Azarbaijan Sharghi Province | |
| 17 km East of Varzagan, Azarbaijan Sharghi Province | |
| 18 km North West of Khuniq, Azarbaijan Sharghi Province | |
| 19 km South of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 55 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 77 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 83 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >3.6 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 6.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90880 | IIEES | GRMI | E | 1819.3 | 0.2 | 2013-10-30 16:49:52 | 2013-10-30 05:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-10-30 16:49:38 | 0.03 | y | 100 | 67 | |||
| IIEES | GRMI | N | Sg | E | 2013-10-30 16:49:51 | -0.03 | y | 100 | 67 | |||
| IIEES | MAKU | Z | Pn | E | 2013-10-30 16:49:56 | 0.21 | y | 211 | 299 | |||
| IIEES | MAKU | E | Sg | E | 2013-10-30 16:50:21 | -0.13 | y | 211 | 299 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-10-30 16:50:01 | -0.1 | y | 257 | 140 | |||
| IIEES | ASAO | Z | Pn | E | 2013-10-30 16:50:34 | 0.04 | y | 519 | 146 | |||
