Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2013-11-05 09:28:15.9 |
| Date & Time (Local) | 1392/8/14 12:58:15.9 |

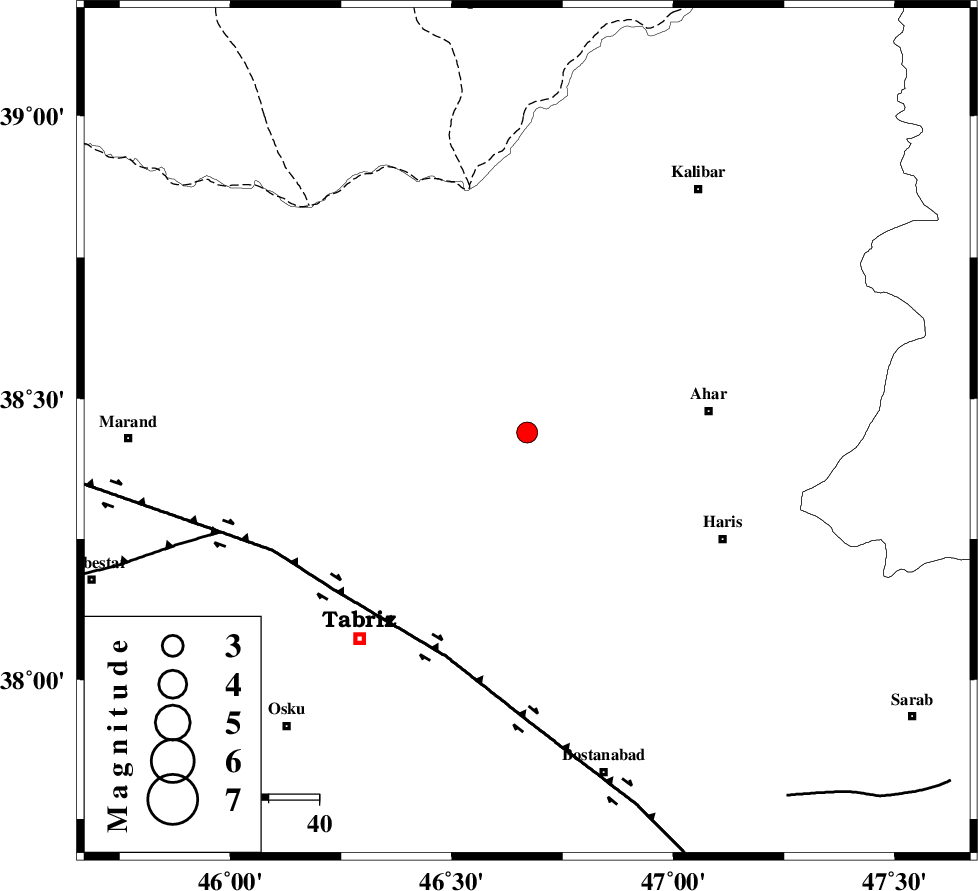

| Location | Lat:38.44 Lon: 46.67 |
| Region | Azarbaijan Sharghi Province, 36 km West of Ahar |
Nearest Cities |
|
| 6 km of Varzagan, Azarbaijan Sharghi Province | |
| 16 km South of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 17 km North of Sarand, Azarbaijan Sharghi Province | |
| 20 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 23 km South of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 47 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 63 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 88 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >4.6 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90920 | IIEES | GRMI | N | 232.7 | 0.15 | 2013-11-05 09:28:51 | 2013-11-05 09:58:00 | n |
| 90921 | IIEES | MAKU | N | 147.6 | 0.54 | 2013-11-05 09:29:14 | 2013-11-05 09:58:00 | n |
| 90922 | IIEES | MAKU | E | 100.3 | 0.36 | 2013-11-05 09:29:14 | 2013-11-05 09:58:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2013-11-05 09:28:34 | -0.21 | y | 114 | 68 | |||
| IIEES | GRMI | N | Sg | E | 2013-11-05 09:28:49 | 0.16 | y | 114 | 68 | |||
| IIEES | MAKU | Z | Pn | E | 2013-11-05 09:28:48 | 0.12 | y | 200 | 301 | |||
| IIEES | MAKU | E | Sg | E | 2013-11-05 09:29:12 | -0.05 | y | 200 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-11-05 09:28:56 | -0.02 | y | 265 | 137 | |||
