Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2013-11-06 17:11:32.6 |
| Date & Time (Local) | 1392/8/15 20:41:32.6 |

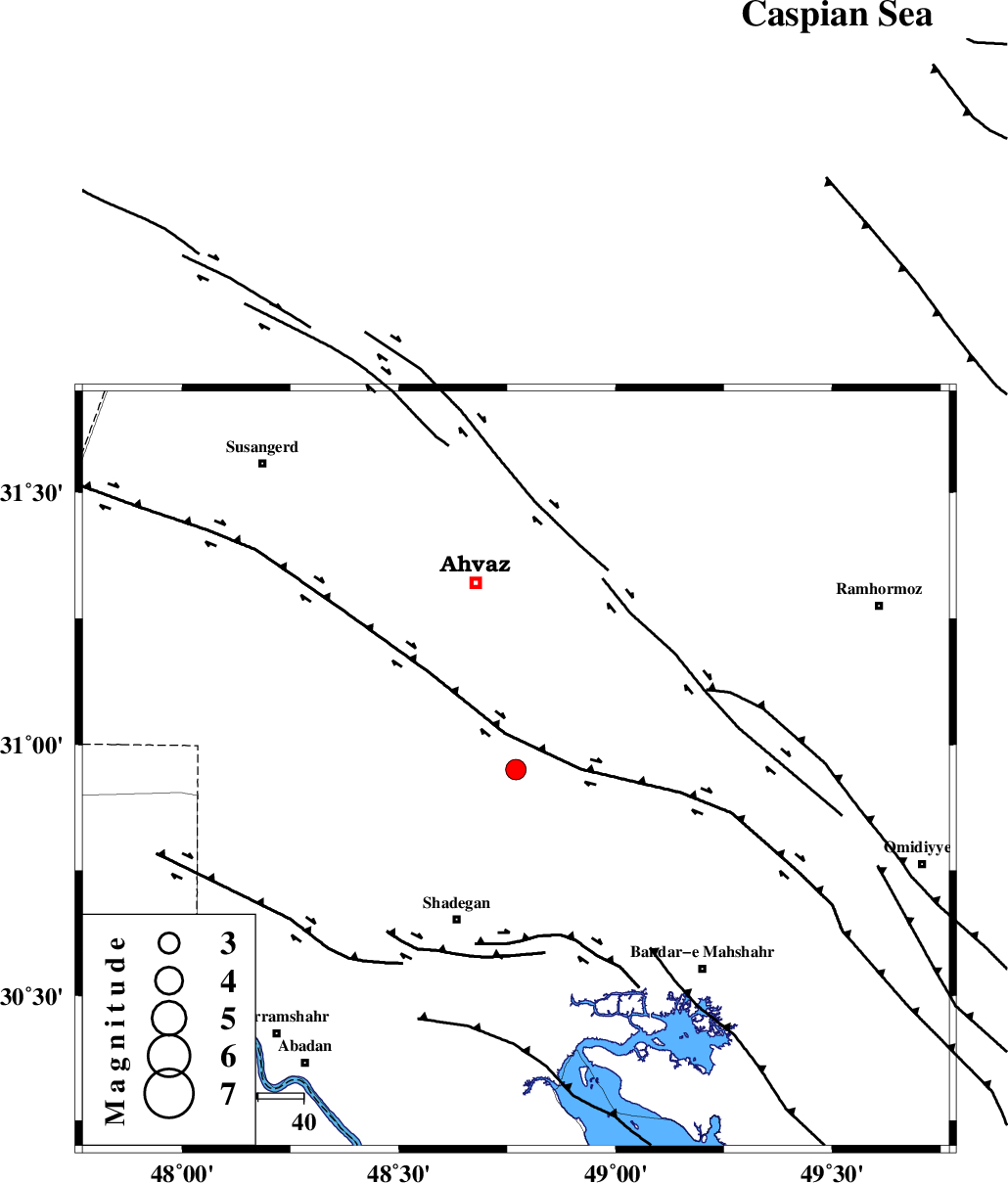

| Location | Lat:30.95 Lon: 48.77 |
| Region | Khoozestan Province, 35 km North-East of Shadegan |
Nearest Cities |
|
| 17 km North of Gharibeh, Khoozestan Province | |
| 26 km South East of Abunangeh, Khoozestan Province | |
| 33 km North of Buzi, Khoozestan Province | |
| 33 km South West of Mashrehat, Khoozestan Province | |
| 33 km South East of Bahr, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 32 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 52 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 105 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 9.5 km |
| Error in Depth | 3.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90935 | IIEES | SHGR | E | 275.7 | 0.4 | 2013-11-06 17:12:13 | 2013-11-06 10:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2013-11-06 17:11:54 | 0.09 | y | 129 | 1 | |||
| IIEES | SHGR | E | Sg | E | 2013-11-06 17:12:09 | -0.01 | y | 129 | 1 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-11-06 17:12:21 | -0.06 | y | 330 | 20 | |||
| IIEES | AHRM | Z | Pn | E | 2013-11-06 17:12:21 | 0.09 | y | 336 | 133 | |||
| IIEES | ASAO | Z | Pn | E | 2013-11-06 17:12:31 | -0.21 | y | 417 | 16 | |||
| IIEES | ASAO | E | S | E | 2013-11-06 17:13:15 | 0.14 | y | 417 | 16 | |||
| IIEES | YZKH | Z | Pn | E | 2013-11-06 17:12:51 | -0.09 | y | 575 | 72 | |||
