Event Specification
Magnitude |
1.6 |
| Date & Time (UTC) | 2013-11-09 04:09:09.5 |
| Date & Time (Local) | 1392/8/18 07:39:09.5 |

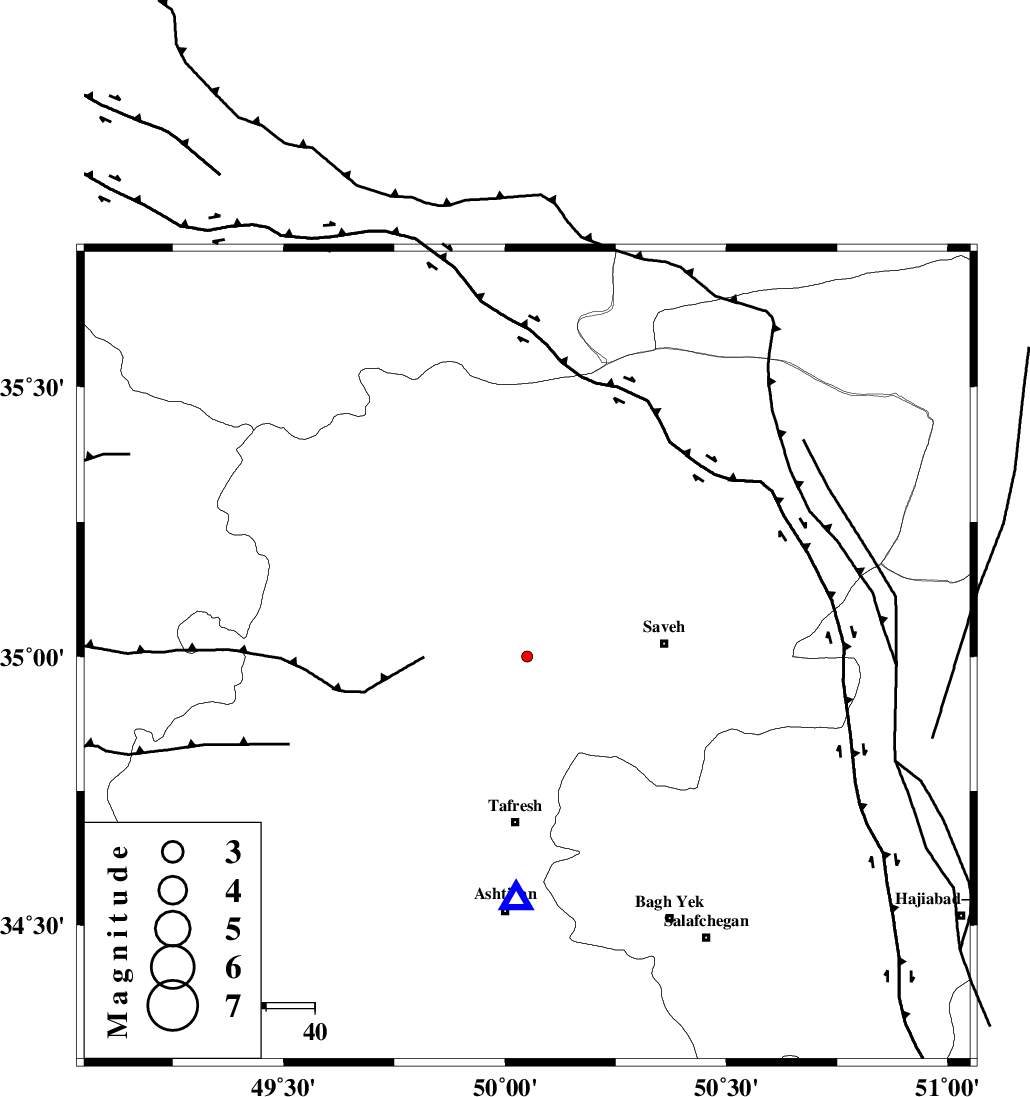

| Location | Lat:35 Lon: 50.05 |
| Region | Markazi Province, 28 km West of Saveh |
Nearest Cities |
|
| 6 km of Qeytaniyeh, Markazi Province | |
| 16 km North of Khanak, Markazi Province | |
| 24 km South East of Gharqabad, Markazi Province | |
| 24 km North West of Yalabad, Markazi Province | |
| 26 km North East of Bazarjan, Markazi Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| INDES_F (Length: 98 km) , Distance to epicenter: 4 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 26 km | |
| S_PARANDAK_F (Length: 116 km) , Distance to epicenter: 46 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90951 | IIEES | GHVR | N | 15.3 | 0.13 | 2013-11-09 04:09:47 | 2013-11-09 05:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ASAO | Z | Pg | E | 2013-11-09 04:09:18 | 0.03 | y | 49.9 | 183 | |||
| IIEES | GHVR | Z | Pg | E | 2013-11-09 04:09:30 | -0.01 | y | 123 | 117 | |||
| IIEES | GHVR | N | Sg | E | 2013-11-09 04:09:46 | 0.05 | y | 123 | 117 | |||
| IIEES | CHTH | Z | Pg | E | 2013-11-09 04:09:33 | -0.04 | y | 140 | 44 | |||
| IIEES | KHMZ | Z | Pg | E | 2013-11-09 04:09:33 | 0.2 | y | 140 | 183 | |||
| IIEES | KHMZ | N | Sg | E | 2013-11-09 04:09:51 | -0.19 | y | 140 | 183 | |||
| IIEES | DAMV | Z | P | E | 2013-11-09 04:09:40 | -0.05 | y | 188 | 68 | |||
