Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2013-11-09 18:32:28.4 |
| Date & Time (Local) | 1392/8/18 22:02:28.4 |

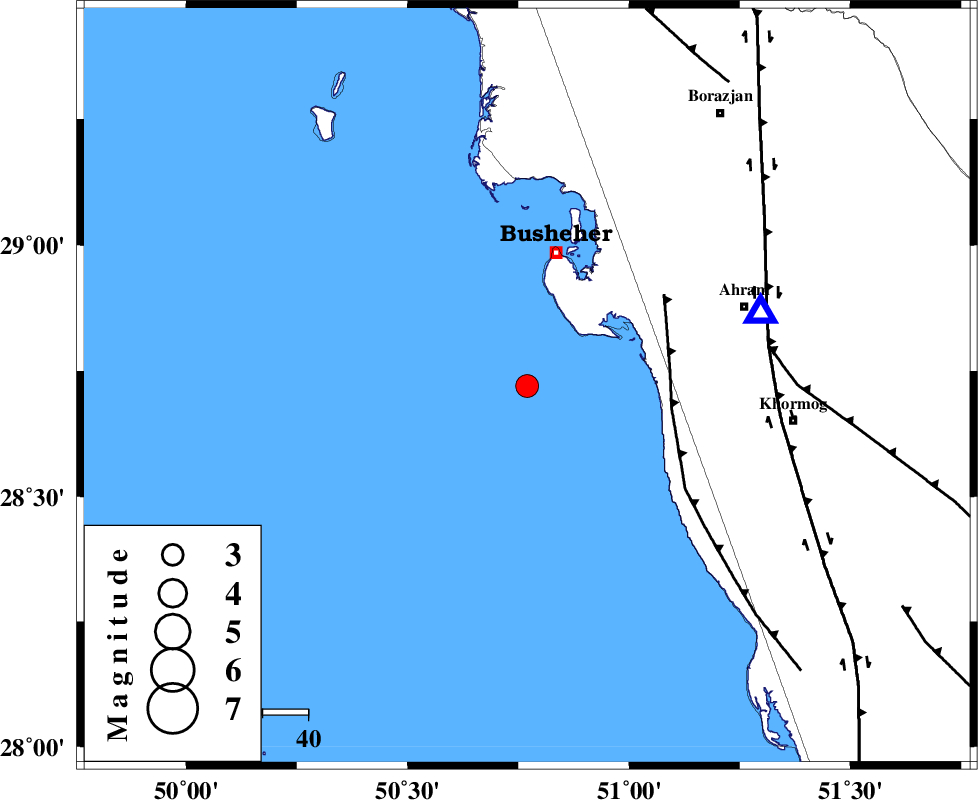

| Location | Lat:28.72 Lon: 50.77 |
| Region | Persian Gulf, 31 km South of Busheher |
Nearest Cities |
|
| 30 km West of Delvar, Bushehr Province | |
| 30 km South of Busheher, Bushehr Province | |
| 39 km South West of Choghadak, Bushehr Province | |
| 46 km North West of Derazi, Bushehr Province | |
| 51 km South West of Ahram, Bushehr Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ZFF2 (Length: 84 km) , Distance to epicenter: 32 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 54 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 54 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >8.6 km |
| Error in Longitude | 5.3 km |
| Error in Depth | 4.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90962 | IIEES | AHRM | N | 1631.9 | 0.32 | 2013-11-09 18:32:46 | 2013-11-09 07:08:00 | n |
| 90963 | IIEES | AHRM | E | 2813.8 | 0.52 | 2013-11-09 18:32:46 | 2013-11-09 07:08:00 | n |
| 90964 | IIEES | KRBR | E | 12.3 | 0.36 | 2013-11-09 18:34:59 | 2013-11-09 07:08:00 | n |
| 90965 | IIEES | KRBR | N | 14.8 | 0.64 | 2013-11-09 18:35:01 | 2013-11-09 07:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-11-09 18:32:38 | 0 | y | 54.3 | 72 | |||
| IIEES | AHRM | N | Sg | E | 2013-11-09 18:32:45 | 0 | y | 54.3 | 72 | |||
| IIEES | YZKH | Z | Pn | E | 2013-11-09 18:33:44 | 0 | y | 548 | 41 | |||
| IIEES | KRBR | Z | Pn | E | 2013-11-09 18:33:51 | 0 | y | 599 | 75 | |||
