Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2013-11-12 09:09:57.0 |
| Date & Time (Local) | 1392/8/21 12:39:57.0 |

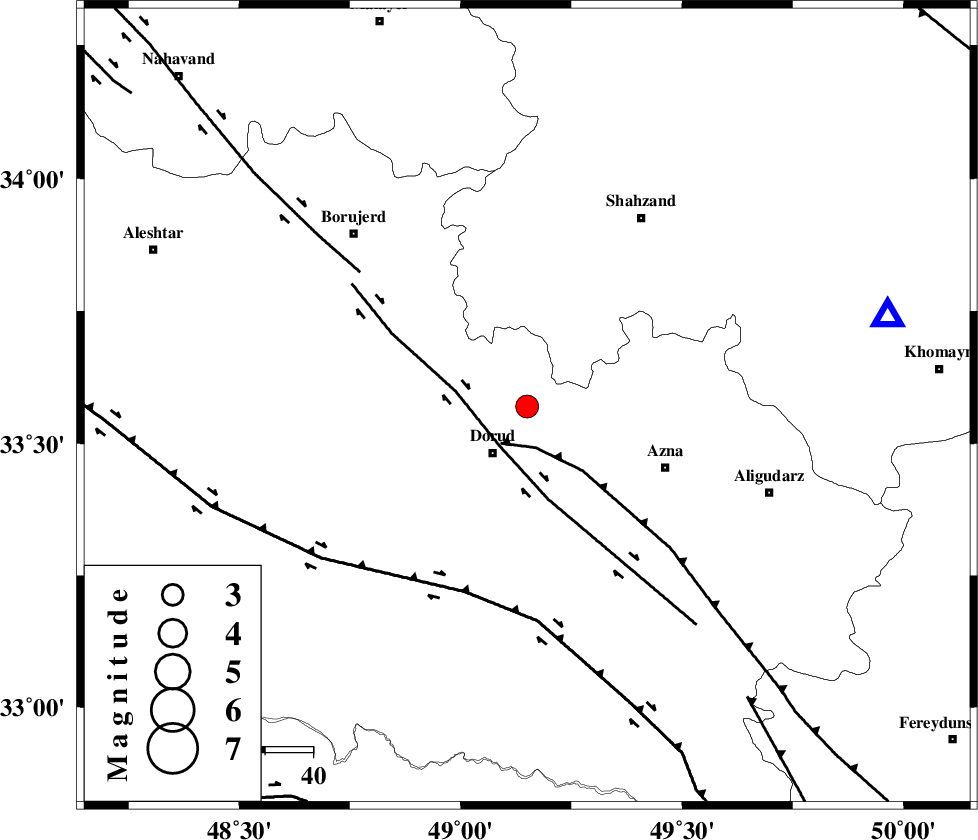

| Location | Lat:33.57 Lon: 49.15 |
| Region | Lorestan Province, 12 km Dorud |
Nearest Cities |
|
| 3 km North of Zhan, Lorestan Province | |
| 12 km North of Dorud, Lorestan Province | |
| 13 km North of Heshmatabad, Lorestan Province | |
| 17 km North East of Void, Lorestan Province | |
| 19 km East of Kagheh, Lorestan Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 9 km | |
| DORUD (Length: 100 km) , Distance to epicenter: 10 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 41 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >6.5 km |
| Error in Longitude | 5.9 km |
| Error in Depth | 7.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 90978 | IIEES | GHVR | E | 259.6 | 0.61 | 2013-11-12 09:11:10 | 2013-11-12 09:39:00 | n |
| 90979 | IIEES | GHVR | N | 222.8 | 0.59 | 2013-11-12 09:11:12 | 2013-11-12 09:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2013-11-12 09:10:10 | -0.2 | y | 77.8 | 75 | |||
| IIEES | KHMZ | N | Sg | E | 2013-11-12 09:10:21 | 0.26 | y | 77.8 | 75 | |||
| IIEES | ASAO | Z | Pg | E | 2013-11-12 09:10:20 | 0.05 | y | 136 | 36 | |||
| IIEES | GHVR | Z | Pn | E | 2013-11-12 09:10:33 | 0.49 | y | 218 | 62 | |||
| IIEES | GHVR | N | Sg | E | 2013-11-12 09:11:01 | -0.25 | y | 218 | 62 | |||
| IIEES | CHTH | Z | Pn | E | 2013-11-12 09:10:44 | -0.23 | y | 317 | 34 | |||
| IIEES | YZKH | Z | Pn | E | 2013-11-12 09:11:10 | -0.21 | y | 525 | 103 | |||
